RF Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI4300-E-BMIC RF AMP 900MHZ/1.8GHZ 20LGA |
0 |
|
- |
- | 20-LFLGA | Tube | Obsolete | 900MHz, 1.8GHz | - | - | - | - | - | - | - | - | - | Surface Mount | 20-LGA (6.4x3.9) |
|
MGA-81563-BLKGIC RF AMP ISM 100MHZ-6GHZ SOT363 |
0 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | 100MHz ~ 6GHz | 14.8dBm | 10.5dB ~ 14.5dB | 2.7dB | ISM, PCS, PHS, SATCOM, WLL | 1.5V ~ 5V | 31mA ~ 51mA | 2GHz | - | - | Surface Mount | SOT-363, SC70 |
|
|
ALM-1222-BLKGIC AMP CELL 1.8GHZ-2.2GHZ 22MCOB |
0 |
|
Datasheet |
- | 22-SMD Module, No Lead | Bulk | Obsolete | 1.8GHz ~ 2.2GHz | 27.5dBm | 29.5dB ~ 32.5dB | 0.62dB | Cellular, CDMA, W-CDMA, PCS, EGSM | 1.9V ~ 2.8V | 280mA | 2GHz | - | - | Surface Mount | 22-MCOB (5x6) |
|
|
MGA-61563-BLKGIC RF AMP 0HZ-5GHZ SOT363 |
0 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | 0Hz ~ 5GHz | 15.1dBm | 15dB ~ 18dB | 1.17dB ~ 1.8dB | - | 3V, 5V | 32mA ~ 48mA | 2GHz | - | - | Surface Mount | SOT-363, SC70 |
|
|
ALM-1106-BLKIC RF AMP GPS 900MHZ-3.5GHZ |
0 |
|
Datasheet |
- | 6-TDFN Exposed Pad | Bulk | Obsolete | 900MHz ~ 3.5GHz | 1.8dBm | 14.3dB | 0.8dB | GPS, ISM | 2.85V | 8mA | 1.575GHz | - | - | Surface Mount | - |
|
MSA-0611-BLKGIC AMP ISM 0HZ-700MHZ SOT143-4 |
0 |
|
Datasheet |
- | TO-253-4, TO-253AA | Strip | Obsolete | 0Hz ~ 700MHz | 2dBm | 16dB ~ 18dB | 3dB | ISM, PCS | 2.6V ~ 4V | 10mA ~ 30mA | 500MHz | - | - | Surface Mount | SOT-143-4 |
|
MGA-71543-BLKGIC AMP CDMA 100MHZ-6GHZ SOT343 |
0 |
|
- |
- | SC-82A, SOT-343 | Strip | Obsolete | 100MHz ~ 6GHz | 13.1dBm | 14.4dB ~ 17.4dB | 1.1dB ~ 1.45dB | CDMA, TDMA, W-CDMA | 2.7V ~ 4.2V | 50mA ~ 60mA | 2.01GHz | - | - | Surface Mount | SOT-343, SC70 4-Lead |
|
MSA-0886-BLKGIC AMP 0HZ-5.5GHZ 86 PLASTIC PKG |
0 |
|
Datasheet |
- | SOT-86 | Bulk | Obsolete | 0Hz ~ 5.5GHz | 12.5dBm | 20.5dB ~ 22.5dB | 3.3dB | - | 6.2V ~ 9.4V | 65mA | 1GHz | - | - | Surface Mount | 86 Plastic Package |
|
|
MGA-53543-BLKGIC AMP CELL 50MHZ-6GHZ SOT343 |
0 |
|
- |
- | SC-82A, SOT-343 | Strip | Obsolete | 50MHz ~ 6GHz | 18.6dBm | 14dB ~ 17dB | 1.5dB ~ 1.9dB | Cellular, PCS, WLAN, WLL | 5V | 40mA ~ 70mA | 1.9GHz | - | - | Surface Mount | SOT-343, SC70 4-Lead |
|
|
MSA-0736-BLKGIC RF AMP ISM 2.4GHZ 36 MICRO-X |
0 |
|
Datasheet |
- | 4-SMD (36 micro-X) | Bulk | Obsolete | 0Hz ~ 2.4GHz | 5.5dBm | 12.5dB ~ 14.5dB | 4.5dB | ISM | 3.6V ~ 4.4V | 15mA ~ 40mA | 1GHz | - | - | Surface Mount | 36 micro-X |
|
MGA-425P8-BLKIC RF AMP ISM 2GHZ-10GHZ 8LPCC |
0 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Bulk | Obsolete | 2GHz ~ 10GHz | 18.25dBm ~ 20.3dBm | 14.5dB ~ 17.5dB | 1.7dB | ISM, 802.11a/WiFi | 3.3V | 51mA ~ 65mA | 5.25GHz | - | - | Surface Mount | 8-LPCC (2x2) |
|

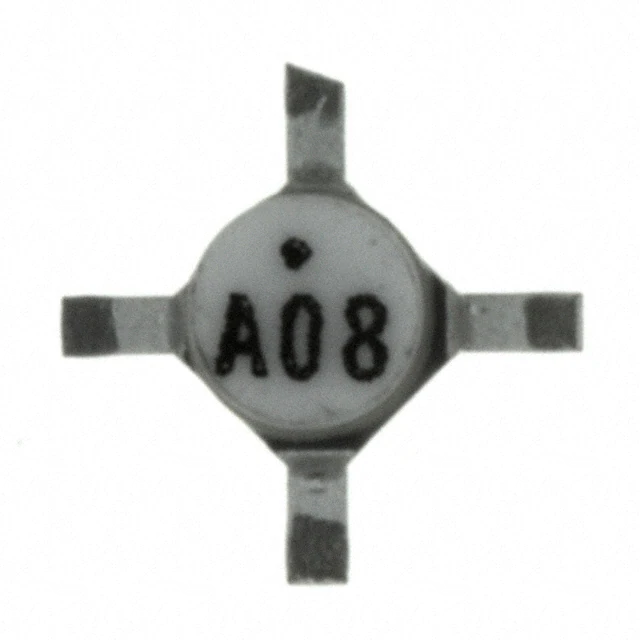

MSA-0836-BLKGIC RF AMP 500MHZ-6GHZ 36 MICRO-X |
0 |
|
Datasheet |
- | 4-SMD (36 micro-X) | Bulk | Obsolete | 500MHz ~ 6GHz | 12.5dBm | 22dB ~ 25dB | 3dB | - | 7V ~ 8.4V | 80mA | 1GHz | - | - | Surface Mount | 36 micro-X |
|
MSA-0986-BLKGIC AMP 100MHZ-5.5GHZ 86 PLASTIC |
0 |
|
Datasheet |
- | SOT-86 | Bulk | Obsolete | 100MHz ~ 5.5GHz | 10.5dBm | 6dB ~ 7.2dB | 6.2dB | - | 6.2V ~ 9.4V | 65mA | 2GHz | - | - | Surface Mount | 86 Plastic Package |
|
|
MSA-0370IC AMP ISM 20MHZ-2.8GHZ 70 MIL |
0 |
|
Datasheet |
- | 4-SMD (70 mil) | Bulk | Obsolete | 20MHz ~ 2.8GHz | 10dBm | 11.5dB ~ 13.5dB | 6dB | ISM | 4.5V ~ 5.5V | 35mA | 1GHz | - | - | Surface Mount | 70 mil Package |
|
MSA-0670IC AMP 0HZ-4GHZ 70 MIL PACKAGE |
0 |
|
Datasheet |
- | 4-SMD (70 mil) | Bulk | Obsolete | 0Hz ~ 4GHz | 2dBm | 19dB ~ 20.5dB | 2.8dB ~ 4dB | - | 3.1V ~ 3.9V | 50mA | 500MHz | - | - | Surface Mount | 70 mil Package |
|
MGA-665P8-BLKIC RF AMP 500MHZ-6GHZ 8LPCC |
0 |
|
- |
- | 8-WFDFN Exposed Pad | Bulk | Obsolete | 500MHz ~ 6GHz | 7.41dBm | 18.4dB | 1.18dB | - | 2.7V ~ 3.3V | 20.5mA | 2.4GHz | - | - | Surface Mount | 8-LPCC (2x2) |
|
|
MGA-565P8-BLKIC AMP CELLULAR 0HZ-3.5GHZ 8LPCC |
0 |
|
- |
- | 8-WFDFN Exposed Pad | Strip | Obsolete | 0Hz ~ 3.5GHz | - | 21.8dB | - | Cellular, PCS | 3V ~ 5V | 67mA | 2GHz | - | - | Surface Mount | 8-LPCC (2x2) |
|
MSA-3186-BLKGIC AMP 0HZ-6GHZ 85 MIL MICROSTIP |
0 |
|
Datasheet |
- | 4-SMD (85 mil microstipline) | Bulk | Obsolete | 0Hz ~ 6GHz | 21dBm | 18.7dB | 3.5dB | - | 4V ~ 6V | 60mA | 1GHz | - | - | Surface Mount | 85 mil microstipline |
|
|
MSA-0270IC AMP ISM 0HZ-2.8GHZ 70 MIL PKG |
0 |
|
Datasheet |
- | 4-SMD (70 mil) | Bulk | Obsolete | 0Hz ~ 2.8GHz | 4.5dBm | 11.5dB ~ 13.5dB | 6.5dB | ISM | 4.5V ~ 5.5V | 25mA | 1GHz | - | - | Surface Mount | 70 mil Package |
|
|
MGA-83563-BLKGIC RF AMP 500MHZ-6GHZ SOT363 |
0 |
|
- |
- | 6-TSSOP, SC-88, SOT-363 | Strip | Obsolete | 500MHz ~ 6GHz | 19.7dBm | 23dB | - | - | 2.7V ~ 3.6V | 152mA ~ 200mA | 2GHz | - | - | Surface Mount | SOT-363, SC70 |
