RF Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMD240C4DC-22 GHZ DISTRIBUTED AMPLIFIER |
0 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | 0Hz ~ 22GHz | 19dBm | 16dB | 2.2dB | General Purpose | 5V ~ 8V | 80mA | 0Hz ~ 22GHz | - | - | Surface Mount | 24-SMT (3.9x3.9) |
|
|
ZRL-700+LNA, 250 - 700 MHZ, 50 OHM |
1 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 250MHz ~ 700MHz | 23.5dBm | 30dB | 2dB | UHF | 12V | 575mA | 250MHz ~ 700MHz | - | - | Chassis Mount | - |
|
ZX60-183A-S+IC RF AMP RADAR 6GHZ-18GHZ |
0 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 6GHz ~ 18GHz | 18.8dBm | 26.1dB | 6.5dB | Radar, DBS | 5V | 277mA | 16GHz | - | - | Chassis Mount | - |
|
|
ADL8106ACEZIC RF AMP GPS 18GHZ-54GHZ 24LGA |
0 |
|
Datasheet |
- | 24-LFLGA Exposed Pad | Strip | Active | 18GHz ~ 54GHz | 19dBm | 22dB | 4dB | General Purpose | 2V ~ 3.5V | 120mA | 50GHz ~ 54GHz | - | - | Surface Mount | 24-LGA-CAV (5x5) |
|
|
ZX60-14012L-S+IC RF AMP GPS 300KHZ-14GHZ SMA |
0 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 300kHz ~ 14GHz | 11dBm | 12dB | 5.5dB | General Purpose | 12V | 62mA | 300kHz ~ 14GHz | - | - | Chassis Mount | - |
|

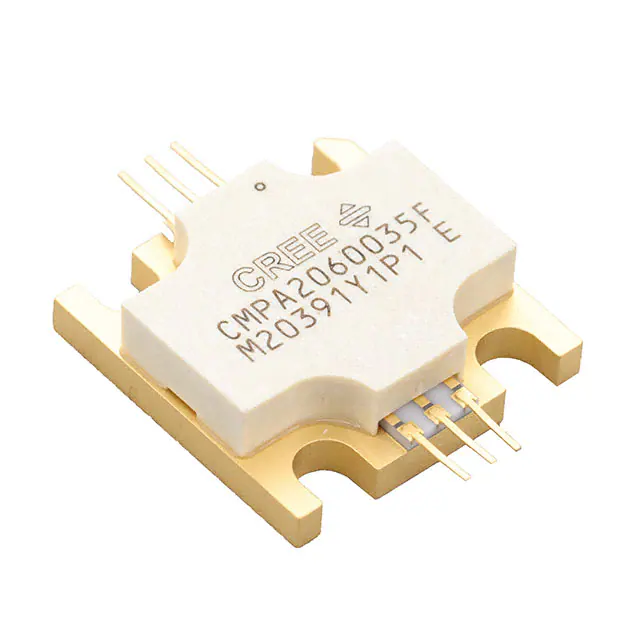

CMPA2060035FIC RF AMP 2GHZ-6GHZ 440219 |
0 |
|
Datasheet |
- | 440219 | Tray | Active | 2GHz ~ 6GHz | - | - | - | - | 28V | - | - | - | - | Chassis Mount | 440219 |
|
SKY85408-11IC RF AMP GPS 5GHZ 20QFN |
0 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | 5GHz | - | 35dB | - | General Purpose | 1.8V ~ 5V | - | - | - | - | Surface Mount | 20-QFN (4x4) |
|
HMC311ST89ETRIC RF AMP GPS 0HZ-6GHZ SOT89 |
0 |
|
Datasheet |
- | TO-243AA | Tape & Reel (TR) | Active | 0Hz ~ 6GHz | 13dBm | 14.5dB | 5dB | General Purpose | 5V | 74mA | - | - | - | Surface Mount | SOT-89 |
|
TA9110KPA RF GAN PWR 6W .03-4GHZ 32V |
0 |
|
Datasheet |
- | 16-VFQFN Exposed Pad | Strip | Active | 30MHz ~ 4GHz | - | 17dB | - | Cellular | 28V ~ 32V | - | 1GHz | - | - | Surface Mount | 16-QFN (3x3) |
|
TA9210DPA RF GAN PWR 12.5W .03-4GHZ 32V |
4 |
|
Datasheet |
- | 32-VFQFN Exposed Pad | Tray | Active | 30MHz ~ 4GHz | - | 18dB | - | Cellular | 28V ~ 32V | - | 800MHz | - | - | Surface Mount | 32-QFN (3x6) |
|
TA9310EPA RF GAN PWR 20W .03-4GHZ 32V |
0 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Strip | Active | 30MHz ~ 4GHz | - | 17.5dB | - | Cellular | 28V ~ 32V | - | 900MHz | - | - | Surface Mount | 8-QFN (5x6) |
|
|
QPA26115 W X-BD GAN PA |
0 |
|
Datasheet |
- | 24-VQFN Exposed Pad | Tray | Active | 8GHz ~ 12GHz | - | 35.5dB | - | Radar | 24V | 105mA | 8GHz ~ 12GHz | - | - | Surface Mount | 24-QFN (5x5) |
|
32-0125-00IC AMP GALILEO 1.2GHZ-1.8GHZ SMA |
0 |
|
Datasheet |
- | SMA In-Line Module | Bulk | Active | 1.2GHz ~ 1.8GHz | 12.8dBm | 27dB | 2dB | Galileo, GLONASS, GNSS, GPS, SBAS | 3V ~ 16V | 25mA | 1.2GHz ~ 1.8GHz | - | - | Connector Mount | SMA |
|
HMC-C026IC RF AMP VSAT 2GHZ-20GHZ MODULE |
1 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2GHz ~ 20GHz | 26dBm | 31dB | 3.5dB | VSAT | 11V ~ 16V | 400mA | 2GHz ~ 20GHz | - | - | Connector Mount | Module |
|
|
NT1192FAAE1SIC AMP GNSS 1.164-1.3GHZ EPFFP6 |
0 |
|
Datasheet |
- | 6-XFDFN | Tape & Reel (TR) | Active | 1.164GHz ~ 1.3GHz | -13dBm | 24dB | 0.7dB | GNSS, LNA | 1.5V ~ 3.7V | 4.5mA | 1.278GHz | - | - | Surface Mount | EPFFP6-FA |
|
|
HMC454ST89EIC AMP GPS 400MHZ-2.5GHZ SOT89 |
4 |
|
Datasheet |
- | TO-243AA | Strip | Active | 400MHz ~ 2.5GHz | 27.5dBm | 12.5dB | 6.5dB | General Purpose | 5V | 175mA | 2.15GHz | - | - | Surface Mount | SOT-89 |
|
MW7IC008NT1IC RF AMP GPS 100MHZ-1GHZ 24QFN |
0 |
|
Datasheet |
- | 24-PowerQFN | Tape & Reel (TR) | Not For New Designs | 100MHz ~ 1GHz | 40.4dBm | 23.5dB | - | General Purpose | 32V | 75mA | 100MHz | - | - | Surface Mount | 24-PQFN (8x8) |
|
|
ZX60-8008E-S+IC RF AMP CELLULAR 20MHZ-8GHZ |
1 |
|
Datasheet |
- | Module, SMA Connectors | Tray | Active | 20MHz ~ 8GHz | 10.8dBm | 7dB | 4.1dB | Cellular, PCS | - | 39mA | 20MHz | - | - | Chassis Mount | - |
|
A79IC RF AMP GPS 2MHZ-350MHZ TO8 |
1 |
|
Datasheet |
A79 | TO-8 Style, 4 Lead | Tray | Active | 2MHz ~ 350MHz | 22dBm | 14dB | 4dB | General Purpose | 15V | 88mA | 2MHz ~ 350MHz | - | - | - | TO-8 |
|
HMC462-SXIC RF AMP GPS 2GHZ-20GHZ DIE |
0 |
|
Datasheet |
- | Die | Tray | Active | 2GHz ~ 20GHz | 14.5dBm | 15dB | 2.5dB | General Purpose | 5V | 63mA | - | - | - | Surface Mount | Die |
