RF Amplifiers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | P1dB | Gain | Noise Figure | RF Type | Voltage - Supply | Current - Supply | Test Frequency | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

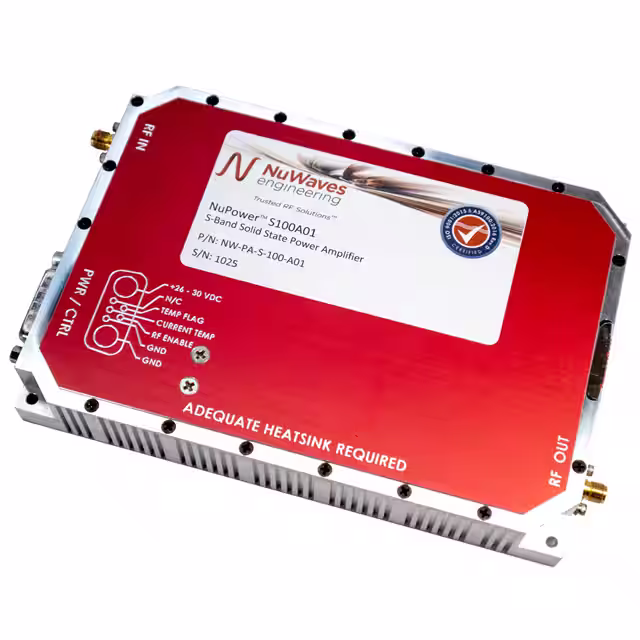

NW-PA-S-100-A01IC RF AMP GPS 2GHZ-2.5GHZ |
5 |
|
Datasheet |
- | Module, SMA Connectors | Box | Active | 2GHz ~ 2.5GHz | 38dBm | 28dB | - | General Purpose | 26V ~ 32V | 11.5A | - | - | - | - | - |
|
PE15A50902.5W Psat, 32 dB Gain, 0.01 GHz |
2 |
|
Datasheet |
- | Module | Retail Package | Active | 100MHz ~ 4GHz | 32.5dBm | 32dB | 3.5dB | 5G, VSAT | 110V ~ 240V | 62mA | - | - | - | Chassis Mount | Module |
|
|
PE15A50482 Watt P1dB, 6 GHz to 18 GHz, Me |
8 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 6GHz ~ 18GHz | 33dBm | 35dB | - | Radar | 12V | 2.5A | - | - | - | Chassis Mount | - |
|
|
PE15A501743 dB Gain, 10 Watt Psat, 700 MH |
4 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 700MHz ~ 6GHz | - | 43dB | - | Radar | 9V ~ 32V | 2A | - | - | - | Chassis Mount | Module |
|
|
PEWGA3217WR-22 Waveguide Power Amplifier, |
2 |
|
Datasheet |
- | Module | Retail Package | Active | 33GHz ~ 50GHz | 18dBm | 45dB | - | General Purpose | 5V ~ 10V | 220mA | - | - | - | Chassis Mount | Module |
|
NW-BA-ULSC-20-C01-S01IC RF AMP GPS 500MHZ-6GHZ |
3 |
|
Datasheet |
NuPower Xtender™ | Module, SMA Connectors | Box | Active | 500MHz ~ 6GHz | 7dBm | 38dB | 5dB | General Purpose | 20V ~ 32V | 2.2A | - | - | - | - | - |
|
|
PE15A5054F2 Watt P1dB, 18 GHz to 26.5 GHz, |
5 |
|
Datasheet |
- | Module | Retail Package | Active | 18GHz ~ 26.5GHz | 33dBm | 35dB | - | Radar | 12V | 5.8A | - | - | - | Chassis Mount | - |
|
|
PEWGA3220WR-12 Waveguide Power Amplifier, |
2 |
|
Datasheet |
- | Module | Retail Package | Active | 71GHz ~ 76GHz | 29dBm | 35dB | - | General Purpose | 5V ~ 10V | 3.6A | - | - | - | Chassis Mount | Module |
|
|
PE15A509520W Psat, 36 dB Gain, 0.7 GHz to |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 700MHz ~ 6GHz | 41.5dBm | 42dB | - | 5G, VSAT | 110V ~ 240V | 450mA | - | - | - | Chassis Mount | Module |
|
NW-PA-ULSC-20-C01-S01IC RF AMP GPS 500MHZ-6GHZ |
10 |
|
Datasheet |
NuPower™ | Module, SMA Connectors | Box | Active | 500MHz ~ 6GHz | - | 38dB | - | General Purpose | 20V ~ 32V | 2.2A | - | - | - | - | - |
|
|
PE15A50980.8W Psat, 40 dB Gain, 20 GHz to |
2 |
|
Datasheet |
- | Module | Retail Package | Active | 20GHz ~ 47GHz | 28dBm | 40dB | - | 5G, VSAT | 110V ~ 240V | 70mA | - | - | - | Chassis Mount | - |
|
|
PE15A6302538 dB Gain, 27 dBm P1dB, 0.01 GH |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 10MHz ~ 30GHz | 27dBm | 38dB | 3.7dB | 5G, VSAT | 110V ~ 220V | 65mA | - | - | - | Chassis Mount | Module |
|
|
PEWGA3221WR-10 Waveguide Power Amplifier, |
2 |
|
Datasheet |
- | Module | Retail Package | Active | 92GHz ~ 96GHz | 29dBm | 24dB | - | General Purpose | 5V ~ 10V | 5.5A | - | - | - | Chassis Mount | Module |
|
|
PE15A40581 Watt P1dB, 2 GHz to 20 GHz, Me |
5 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 2GHz ~ 20GHz | 31dBm | 30dB | - | Radar | 12V | 4.5A | - | - | - | Chassis Mount | - |
|
|
PE15A4058F1 Watt P1dB, 2 GHz to 20 GHz, Me |
5 |
|
Datasheet |
- | Module | Retail Package | Active | 2GHz ~ 20GHz | 31dBm | 30dB | - | Radar | 12V | 5.66A | - | - | - | Chassis Mount | - |
|
|
PEWGA3216WR-28 Waveguide Power Amplifier, |
2 |
|
Datasheet |
- | Module | Retail Package | Active | 26.5GHz ~ 40GHz | 33.5dBm | 35dB | - | General Purpose | 5V ~ 10V | 4.8A | - | - | - | Chassis Mount | Module |
|
|
PEWGA3219WR-15 Waveguide Power Amplifier, |
2 |
|
Datasheet |
- | Module | Retail Package | Active | 50GHz ~ 75GHz | 22dBm | 34dB | - | General Purpose | 5V ~ 10V | 800mA | - | - | - | Chassis Mount | Module |
|
|
PE15A6303144 dB Gain, 20 dBm P1dB, 0.5 GHz |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 500MHz ~ 40GHz | 20dBm | 44dB | 4.5dB | VSAT | 110V ~ 220V | 60mA | - | - | - | Chassis Mount | Module |
|
|
PE15A701140 dB Variable Gain Amplifier, 1 |
12 |
|
Datasheet |
- | Module | Retail Package | Active | 1GHz ~ 40GHz | 10dBm | 45dB | 5dB | SATCOM | 12V ~ 16V | 450mA | - | - | - | Chassis Mount | - |
|
|
PE15A6302629 dB Gain, 20 dBm P1dB, 0.01 GH |
2 |
|
Datasheet |
- | Module, SMA Connectors | Retail Package | Active | 10MHz ~ 40GHz | 20dBm | 29dB | 5dB | 5G, VSAT | 110V ~ 220V | 55mA | - | - | - | Chassis Mount | Module |
