Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
~~2.jpg)
|
SS2PH9HM3/84ADIODE SCHOTTKY 90V 2A DO220AA |
2,640 |
|
Datasheet |
eSMP® | DO-220AA | Tape & Reel (TR) | Obsolete | Schottky | 90 V | 2A | 800 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 µA @ 90 V | 65pF @ 4V, 1MHz | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) | -55°C ~ 175°C |
|
JAN1N647-1DIODE GEN PURP 400V 400MA DO35 |
7,268 |
|
Datasheet |
- | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 400 V | 400mA | 1 V @ 400 mA | Standard Recovery >500ns, > 200mA (Io) | - | 50 nA @ 400 V | - | Military | MIL-PRF-19500/240 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
APT10SCD65KDIODE SIL CARB 650V 17A TO220 |
2,420 |
|
- |
- | TO-220-2 | Bulk | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 17A | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 650 V | 300pF @ 1V, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 150°C |
|
|
APT20SCD65KDIODE SIL CARB 650V 32A TO220 |
4,297 |
|
- |
- | TO-220-2 | Bulk | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 32A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 400 µA @ 650 V | 680pF @ 100mV, 1MHz | - | - | Through Hole | TO-220-2 | -55°C ~ 150°C |
|
TRS10E65C,S1QDIODE SIL CARB 650V 10A TO220-2L |
4,224 |
|
- |
- | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 90 µA @ 650 V | - | - | - | Through Hole | TO-220-2L | 175°C (Max) |
|
RURP1560-F085DIODE GEN PURP 600V 15A TO220-2 |
6,231 |
|
Datasheet |
- | TO-220-2 | Tube | Obsolete | Standard | 600 V | 15A | 1.5 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 100 µA @ 600 V | - | Automotive | AEC-Q101 | Through Hole | TO-220-2 | -55°C ~ 175°C |
|

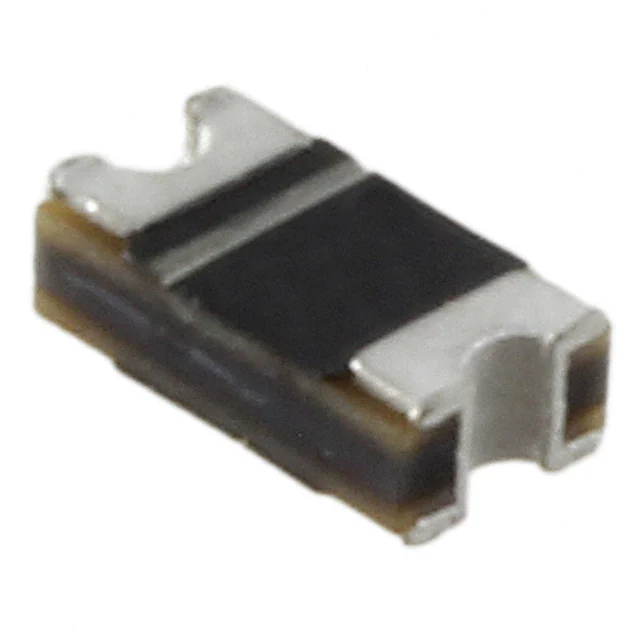

CD1206-B220DIODE SCHOTTKY 20V 2A 1206 |
8,483 |
|
Datasheet |
- | Chip, Concave Terminals | Tape & Reel (TR) | Active | Schottky | 20 V | 2A | 500 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 20 V | - | - | - | Surface Mount | 1206 | -55°C ~ 125°C |
|
CD1607-B140LLFDIODE SCHOTTKY 40V 1A 1607 |
5,723 |
|
Datasheet |
- | SOD-123T | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 1A | 400 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 40 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | 1607 | -55°C ~ 125°C |
|
CD214A-FS1150DIODE GEN PURP 150V 1A DO214AC |
9,167 |
|
- |
- | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | Standard | 150 V | 1A | 950 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 5 µA @ 150 V | 10pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 150°C |
|
|
CD214A-R1800DIODE GEN PURP 800V 1A DO214AC |
2,664 |
|
Datasheet |
- | DO-214AC, SMA | Tape & Reel (TR) | Obsolete | Standard | 800 V | 1A | 1 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 800 V | 12pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AC (SMA) | -55°C ~ 175°C |
|
CD214B-B140LFDIODE SCHOTTKY 40V 1A SMB |
7,822 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Schottky | 40 V | 1A | 500 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 125°C |
|
|
CD214B-B150LFDIODE SCHOTTKY 50V 1A SMBJ |
5,119 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Schottky | 50 V | 1A | 700 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 50 V | 110pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
|
|
CD214B-F2200DIODE GEN PURP 200V 2A SMB |
8,128 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Standard | 200 V | 2A | 920 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 200 V | 200pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 125°C |
|
|
CD214B-F3100DIODE GEN PURP 100V 3A SMB |
7,282 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Standard | 100 V | 3A | 950 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 100 V | 10pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
|
|
CD214B-F3200DIODE GEN PURP 200V 3A SMB |
2,029 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Standard | 200 V | 3A | 950 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | 10pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
|
|
CD214B-F3400DIODE GEN PURP 400V 3A SMB |
2,299 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Standard | 400 V | 3A | 1.25 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 400 V | 10pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -55°C ~ 150°C |
|
|
CD214B-R21000DIODE GEN PURP 1KV 2A SMB |
3,408 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Standard | 1000 V | 2A | 1 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 1000 V | 25pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -65°C ~ 175°C |
|
|
CD214B-R2200DIODE GEN PURP 200V 2A SMB |
8,145 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Standard | 200 V | 2A | 1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 200 V | 25pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -65°C ~ 175°C |
|
|
CD214B-R2400DIODE GEN PURP 400V 2A SMB |
4,499 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Standard | 400 V | 2A | 1 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 400 V | 25pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -65°C ~ 175°C |
|
|
CD214B-R250DIODE GEN PURP 50V 2A SMB |
4,063 |
|
Datasheet |
- | DO-214AA, SMB | Tape & Reel (TR) | Obsolete | Standard | 50 V | 2A | 1 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 50 V | 25pF @ 4V, 1MHz | - | - | Surface Mount | DO-214AA (SMB) | -65°C ~ 175°C |
