Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N3296ARDIODE GP REV 1.2KV 100A DO205AA |
6,441 |
|
Datasheet |
- | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 1200 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N5802URSDIODE GEN PURP 60V 1A A SQ-MELF |
6,549 |
|
- |
- | SQ-MELF, A | Bulk | Active | Standard | 60 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
|
1N5806URSDIODE GEN PURP 160V 1A A SQ-MELF |
3,423 |
|
- |
- | SQ-MELF, A | Bulk | Active | Standard | 160 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
|
1N5804URSDIODE GEN PURP 110V 1A A SQ-MELF |
3,466 |
|
- |
- | SQ-MELF, A | Bulk | Active | Standard | 110 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | A, SQ-MELF | -65°C ~ 175°C |
|
|
1N6701US/TRSMALL-SIGNAL SCHOTTKY |
5,065 |
|
Datasheet |
- | SQ-MELF, C | Tape & Reel (TR) | Active | Schottky | 30 V | 5A | 470 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 30 V | - | - | - | Surface Mount | D-5C | -65°C ~ 125°C |
|
|
1N3297ADIODE GP 1.4KV 100A DO205AA |
4,925 |
|
Datasheet |
- | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 1400 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 7 mA @ 1400 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
1N3297ARDIODE GP REV 1.4KV 100A DO205AA |
7,429 |
|
Datasheet |
- | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 1400 V | 100A | 1.5 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 7 mA @ 1400 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
MF300U12F2-BPDIODE GEN PURP 1.2KV 300A F2 |
4,374 |
|
Datasheet |
- | F2 Module | Bulk | Obsolete | Standard | 1200 V | 300A | 1.8 V @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 5 mA @ 1200 V | - | - | - | Chassis Mount | F2 | -40°C ~ 150°C |
|
|
1616379-860104012=DIODE, SILICONE MOTOR |
5,583 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GKR13012DIODE GP 1.2KV 165A DO205AA |
4,794 |
|
- |
- | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 1200 V | 165A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 22 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 180°C |
|

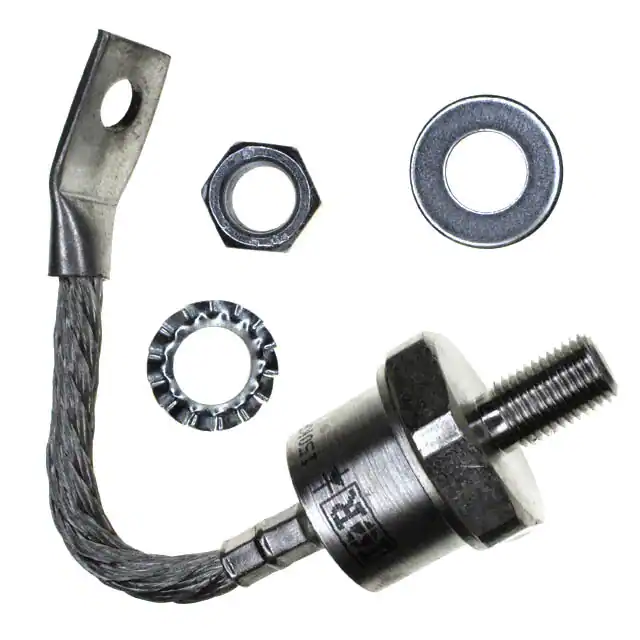

VS-150KR40ADIODE GEN PURP 400V 150A DO205AA |
5,220 |
|
Datasheet |
- | DO-205AA, DO-8, Stud | Bulk | Obsolete | Standard, Reverse Polarity | 400 V | 150A | 1.33 V @ 471 A | Standard Recovery >500ns, > 200mA (Io) | - | 35 mA @ 400 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 200°C |
|
|
S2013-0120TEMPERATURE COMPENSATED |
9,718 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S2160E3DIODE SWITCHING 600V 22A 2-PIN D |
6,933 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R2160DIODE SWITCHING 600V 22A 2-PIN D |
3,509 |
|
- |
- | - | Bulk | Active | - | 600 V | - | 1.2 V @ 30 A | - | - | - | - | - | - | - | - | -65°C ~ 200°C |
|
|
R20120RECTIFIER |
2,746 |
|
Datasheet |
R20 | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1200 V | 16A | 1.3 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1200 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -65°C ~ 200°C |
|
|
R2020DIODE GP REV 200V 16A DO203AA |
9,205 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 200 V | 16A | 1.3 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 200 V | - | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|
|
R2040RECTIFIER |
3,785 |
|
Datasheet |
R20 | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 400 V | 16A | 1.3 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 400 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -65°C ~ 200°C |
|
|
R20410DIODE GEN PURP 100V 12A DO203AA |
5,313 |
|
Datasheet |
R204 | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 100 V | 12A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 100 V | - | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
|
|
R204100RECTIFIER |
5,209 |
|
Datasheet |
R204 | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 12A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | - | - | - | Stud Mount | DO-4 (DO-203AA) | -65°C ~ 200°C |
|
|
R204120DIODE GEN PURP 1.2KV 12A DO203AA |
8,107 |
|
Datasheet |
R204 | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1200 V | 12A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1200 V | - | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 200°C |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
