Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GKN130/18DIODE GP 1.8KV 165A DO205AA |
4,882 |
|
- |
- | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 1800 V | 165A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 22 mA @ 1800 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -55°C ~ 150°C |
|
GKR130/16DIODE GP 1.6KV 165A DO205AA |
4,233 |
|
- |
- | DO-205AA, DO-8, Stud | Bulk | Active | Standard | 1600 V | 165A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 22 mA @ 1600 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -40°C ~ 180°C |
|
|
VS-HFA180NH40PBFDIODE GEN PURP 400V 395A D-67 |
4,518 |
|
Datasheet |
- | D-67 HALF-PAK | Bulk | Active | Standard | 400 V | 395A | 1.8 V @ 360 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 4 mA @ 400 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
1N3649DIODE GEN PURP 800V DO203AA |
7,895 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 800 V | - | 2.2 V @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | - | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
1N3649RDIODE GEN PURP 800V DO203AA |
7,920 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 800 V | - | 2.2 V @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 800 V | - | - | - | Stud Mount | DO-203AA (DO-4) | -65°C ~ 150°C |
|
|
1N3650DIODE GEN PURP DO203AA |
5,917 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1000 V | 3.3A | 2.2 V @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | - | - | - | Stud Mount | DO-203AA (DO-4) | - |
|
|
1N3650RDIODE GEN PURP DO203AA |
3,827 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 3.3A | 2.2 V @ 10 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1000 V | - | - | - | Stud Mount | DO-203AA (DO-4) | - |
|
|
GKR130/18DIODE GP REV 1.8KV 165A DO205AA |
7,381 |
|
- |
- | DO-205AA, DO-8, Stud | Bulk | Active | Standard, Reverse Polarity | 1800 V | 165A | 1.5 V @ 60 A | Standard Recovery >500ns, > 200mA (Io) | - | 22 mA @ 1800 V | - | - | - | Chassis, Stud Mount | DO-205AA (DO-8) | -55°C ~ 150°C |
|
1N5331DIODE GEN PURP 1.4KV 22A DO4 |
7,427 |
|
Datasheet |
- | DO-203AA, DO-4, Stud | Bulk | Active | Standard | 1400 V | 22A | 1.2 V @ 30 A | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1400 V | - | - | - | Chassis, Stud Mount | DO-4 | -65°C ~ 200°C |
|
|
JAN1N5712UBDIODE SCHOTTKY UB |
4,990 |
|
- |
- | 4-SMD, No Lead | Bulk | Active | Schottky | - | - | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | - | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Surface Mount | UB | 150°C (Max) |
|
|
UES1302/TRDIODE GEN PURP 100V 6A AXIAL |
8,670 |
|
- |
- | Axial | Tape & Reel (TR) | Active | Standard | 100 V | 6A | 925 mV @ 6 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | - | - | - | Through Hole | Axial | -55°C ~ 175°C |
|
|
JAN1N5712UB/TRSMALL-SIGNAL SCHOTTKY |
2,380 |
|
Datasheet |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 16 V | 75mA | 1 V @ 35 mA | Small Signal =< 200mA (Io), Any Speed | - | 150 nA @ 16 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Surface Mount | UB | -65°C ~ 150°C |
|
|
JANKCE1N5804DIODE GEN PURP 100V 1A DIE |
7,893 |
|
- |
- | Die | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | Die | -65°C ~ 175°C |
|
|
JANKCE1N5802DIODE GEN PURP 50V 1A DIE |
6,322 |
|
- |
- | Die | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | Die | -65°C ~ 175°C |
|

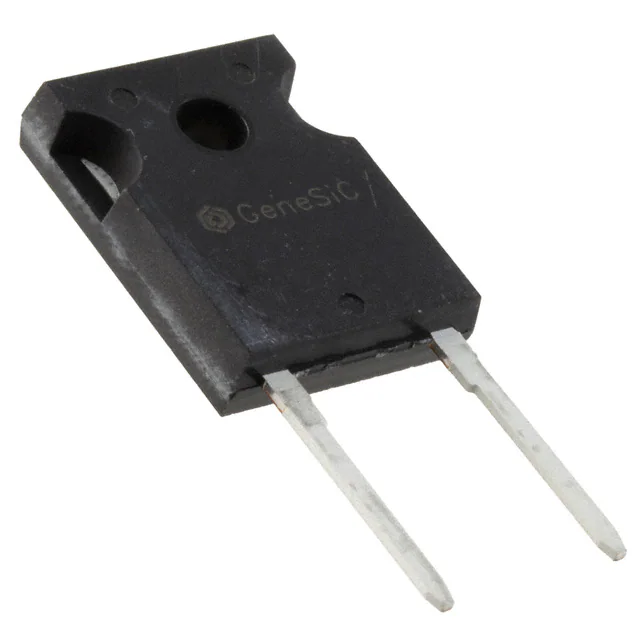

GB50SLT12-247DIODE SIL CARB 1.2KV 50A TO247-2 |
5,935 |
|
Datasheet |
- | TO-247-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 50A | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 1 mA @ 1200 V | 2940pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
JANS1N6643DIODE GEN PURP 50V 300MA D-5D |
8,706 |
|
- |
- | SQ-MELF, D | Bulk | Active | Standard | 50 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 6 ns | 500 nA @ 150 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Surface Mount | D-5D | -65°C ~ 175°C |
|
|
GATELEAD1110008XPSA1HIGH POWER THYR / DIO |
7,729 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GATELEADMPWHPK1258XXPSA1STD THYR/DIODEN DISC |
2,525 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GATELEADRD406XPSA1STD THYR/DIODEN DISC |
3,440 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GATELEADWH406XPSA1STD THYR/DIODEN DISC |
7,626 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
