Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UES1103SME3/TRDIODE GP 150V 2.5A A SQ-MELF |
8,741 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 150 V | 2.5A | 975 mV @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 150 V | - | - | - | Surface Mount | A, SQ-MELF | 175°C |
|
|
CDLL2.55VVOLTAGE REGULATOR |
4,310 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CDLL2.80VVOLTAGE REGULATOR |
9,326 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1N6630US/TRDIODE GEN PURP 900V 1.4A D-5B |
7,701 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 900 V | 1.4A | 1.7 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 4 µA @ 100 V | - | - | - | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
1N6630U/TRUFR,FRR |
8,526 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

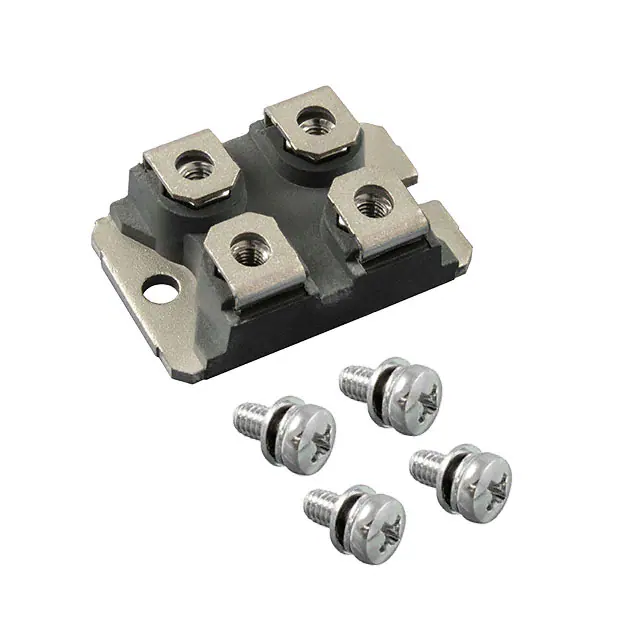

DSA300I45NADIODE SCHOTTKY 45V 300A SOT227B |
9,528 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | Schottky | 45 V | 300A | 840 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | 16500pF @ 5V, 1MHz | - | - | Chassis Mount | SOT-227B | - |
|
|
JAN1N4148UBDIODE GEN PURP 75V 200MA UB |
4,062 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 75 µA @ 75 V | 4pF @ 0V, 1MHz | Military | MIL-PRF-19500/116 | Surface Mount | UB | -65°C ~ 200°C |
|
|
JANTX1N5806URS/TRUFR,FRR |
5,726 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 150 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
JANTX1N5804URS/TRUFR,FRR |
6,447 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
JANTX1N5802URS/TRUFR,FRR |
5,055 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
FR85B02DIODE GEN PURP 100V 85A DO5 |
3,935 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85B05DIODE GEN PURP 100V 85A DO5 |
2,509 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 100 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85D02DIODE GEN PURP 200V 85A DO5 |
6,743 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 200 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85D05DIODE GEN PURP 200V 85A DO5 |
8,189 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 200 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85G05DIODE GEN PURP 400V 85A DO5 |
2,714 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 400 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85J02DIODE GEN PURP 600V 85A DO5 |
3,005 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 250 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85J05DIODE GEN PURP 600V 85A DO5 |
4,885 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 600 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85K05DIODE GEN PURP 800V 85A DO5 |
5,410 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 85A | 1.4 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
FR85M05DIODE GEN PURP 1KV 85A DO5 |
2,394 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 85A | 1.3 V @ 85 A | Fast Recovery =< 500ns, > 200mA (Io) | 500 ns | 25 µA @ 100 V | - | - | - | Chassis, Stud Mount | DO-5 | -40°C ~ 125°C |
|
|
GLPB3460G1K1457XPSA1THYR / DIODE MODULE DK |
9,742 |
|
- |
- | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in Single Diodes?
This category includes related Single Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Single Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Single Diodes and other electronic components.
