Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N5804URS/TRUFR,FRR |
7,624 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
JAN1N5802URS/TRUFR,FRR |
8,257 |
|
Datasheet |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | D-5A | -65°C ~ 175°C |
|
|
1N6097DIODE SCHOTTKY 30V 50A DO5 |
8,412 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Schottky | 30 V | 50A | 700 mV @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 mA @ 30 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 150°C |
|
JANTX1N6631U/TRDIODE GEN PURP 1KV 1.4A D-5B |
7,288 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 1000 V | 1.4A | 1.4 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 4 µA @ 1 V | - | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
JANTX1N6631US/TRDIODE GEN PURP 1.1KV 1.4A D-5B |
9,207 |
|
- |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 1100 V | 1.4A | 1.6 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 4 µA @ 1100 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
121NQ045RDIODE SCHOTTKY 45V 120A D-67 |
6,170 |
|
Datasheet |
- | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 45 V | 120A | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 45 V | 5200pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
121NQ035DIODE SCHOTTKY 35V 120A D-67 |
9,230 |
|
Datasheet |
- | D-67 HALF-PAK | Bulk | Obsolete | Schottky | 35 V | 120A | 650 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 10 mA @ 35 V | 5200pF @ 5V, 1MHz | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
JAN1N5711UB/TRSMALL-SIGNAL SCHOTTKY |
9,641 |
|
Datasheet |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | Schottky | 50 V | 33mA | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 50 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Surface Mount | UB | -65°C ~ 150°C |
|
|
HFA90NH40DIODE GEN PURP 400V 90A D-67 |
2,514 |
|
Datasheet |
HEXFRED® | D-67 HALF-PAK | Bulk | Obsolete | Standard | 400 V | 90A | 1.3 V @ 90 A | Fast Recovery =< 500ns, > 200mA (Io) | 140 ns | 6 µA @ 400 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
|
JANTXV1N6624DIODE GEN PURP 990V 1A A-PAK |
5,647 |
|
Datasheet |
- | A, Axial | Bulk | Active | Standard | 990 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 500 nA @ 990 V | - | Military | MIL-PRF-19500/585 | Through Hole | A, Axial | -65°C ~ 150°C |
|
SCS110KGCDIODE SIL CARB 1.2KV 10A TO220AC |
2,692 |
|
Datasheet |
- | TO-220-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 10A | 1.75 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | 650pF @ 1V, 1MHz | - | - | Through Hole | TO-220AC | 175°C (Max) |
|
LSIC2SD120E40CCDIODE SIC 1.2KV 54.5A TO247AD |
2,523 |
|
Datasheet |
Gen2 | TO-247-3 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1200 V | 54.5A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | 1142pF @ 1V, 1MHz | - | - | Through Hole | TO-247AD | -55°C ~ 175°C |
|
JANTX1N6622/TRDIODE GEN PURP 660V 2A |
2,538 |
|
- |
- | A, Axial | Tape & Reel (TR) | Active | Standard | 660 V | 2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 660 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Through Hole | A, Axial | -65°C ~ 150°C |
|

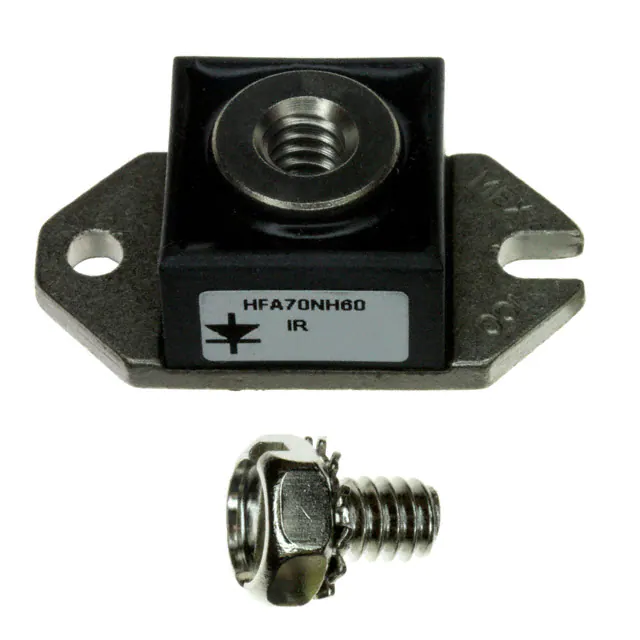

HFA70NH60DIODE GEN PURP 600V 70A D-67 |
3,123 |
|
Datasheet |
HEXFRED® | D-67 HALF-PAK | Bulk | Obsolete | Standard | 600 V | 70A | 1.5 V @ 70 A | Fast Recovery =< 500ns, > 200mA (Io) | 120 ns | 20 µA @ 600 V | - | - | - | Chassis Mount | D-67 HALF-PAK | - |
|
JANTX1N6622DIODE GEN PURP 660V 2A AXIAL |
6,002 |
|
Datasheet |
- | A, Axial | Bulk | Active | Standard | 660 V | 2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 660 V | 10pF @ 10V, 1MHz | Military | MIL-PRF-19500/585 | Through Hole | A, Axial | -65°C ~ 150°C |
|
|
JANTXV1N6624/TRDIODE GEN PURP 990V 1A A-PAK |
2,640 |
|
- |
- | A, Axial | Tape & Reel (TR) | Active | Standard | 990 V | 1A | 1.55 V @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 500 nA @ 990 V | - | Military | MIL-PRF-19500/585 | Through Hole | A, Axial | -65°C ~ 150°C |
|
|
UES1002/TRDIODE GEN PURP 100V 1A |
9,195 |
|
- |
- | A, Axial | Tape & Reel (TR) | Active | Standard | 100 V | 1A | 975 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 2 µA @ 100 V | - | - | - | Through Hole | A, Axial | -55°C ~ 175°C |
|
|
VS-40HFL100S05MDIODE GEN PURP 1KV 40A DO203AB |
4,055 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 1000 V | 40A | 1.95 V @ 125.6 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -40°C ~ 125°C |
|
|
VS-40HFL80S05MDIODE GEN PURP 800V 40A DO203AB |
6,690 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard | 800 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
|
|
VS-40HFLR100S05MDIODE GP REV 1KV 40A DO203AB |
3,288 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Standard, Reverse Polarity | 1000 V | 40A | 1.3 V @ 125 A | Standard Recovery >500ns, > 200mA (Io) | - | - | - | - | - | Chassis, Stud Mount | DO-203AB (DO-5) | -65°C ~ 190°C |
