Single Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N6631UDIODE GEN PURP 1KV 1.4A E-MELF |
7,180 |
|
- |
- | SQ-MELF, B | Bulk | Active | Standard | 1000 V | 1.4A | 1.6 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 4 µA @ 1000 V | - | - | - | Surface Mount | E-MELF | -65°C ~ 150°C |
|
|
1N6628US/TRDIODE GEN PURP 600V 2.3A D-5B |
7,660 |
|
Datasheet |
- | SQ-MELF, E | Tape & Reel (TR) | Active | Standard | 600 V | 2.3A | 1.5 V @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 2 µA @ 600 V | 40pF @ 10V, 1MHz | - | - | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
1N6628U/TRDIODE GP 660V 1.75A SQ-MELF |
6,757 |
|
- |
- | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 660 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 45 ns | 2 µA @ 660 V | 40pF @ 10V, 1MHz | - | - | Surface Mount | B, SQ-MELF | -65°C ~ 150°C |
|
1N6631US/TRDIODE GEN PURP 1.1KV 1.4A A-MELF |
8,807 |
|
- |
- | SQ-MELF, A | Tape & Reel (TR) | Active | Standard | 1100 V | 1.4A | 1.4 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 4 µA @ 1100 V | 40pF @ 10V, 1MHz | - | - | Surface Mount | A-MELF | -65°C ~ 150°C |
|
|
1N6631U/TRDIODE GEN PURP 1KV 1.4A E-MELF |
5,767 |
|
- |
- | SQ-MELF, B | Tape & Reel (TR) | Active | Standard | 1000 V | 1.4A | 1.6 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 4 µA @ 1000 V | - | - | - | Surface Mount | E-MELF | -65°C ~ 150°C |
|
|
JANTX1N3646DIODE GP 1.75KV 250MA S AXIAL |
8,411 |
|
Datasheet |
- | S, Axial | Bulk | Active | Standard | 1750 V | 250mA | 5 V @ 250 mA | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1750 V | - | Military | MIL-PRF-19500/279 | Through Hole | S, Axial | -65°C ~ 175°C |
|
GB25MPS17-247DIODE SIL CARB 1.7KV 52A TO247-2 |
6,756 |
|
Datasheet |
SiC Schottky MPS™ | TO-247-2 | Tube | Obsolete | SiC (Silicon Carbide) Schottky | 1700 V | 52A | 1.8 V @ 25 A | No Recovery Time > 500mA (Io) | 0 ns | 10 µA @ 1700 V | 2350pF @ 1V, 1MHz | - | - | Through Hole | TO-247-2 | -55°C ~ 175°C |
|
|
1N5832RDIODE SCHOTTKY REV 20V 40A DO5 |
6,546 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Schottky, Reverse Polarity | 20 V | 40A | 520 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 10 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 150°C |
|
|
1N5833RDIODE SCHOTTKY REV 30V 40A DO5 |
2,466 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Schottky, Reverse Polarity | 30 V | 40A | 550 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 10 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 150°C |
|
|
1N5834RDIODE SCHOTTKY REV 40V 40A DO5 |
6,689 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Bulk | Active | Schottky, Reverse Polarity | 40 V | 40A | 590 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 20 mA @ 10 V | - | - | - | Chassis, Stud Mount | DO-5 | -65°C ~ 150°C |
|

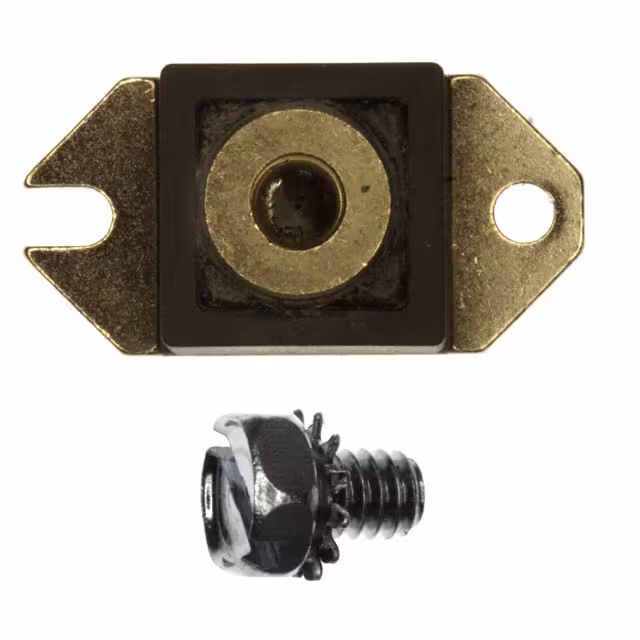

HS24515E3DIODE SCHOTTKY 15V 240A HALF-PAK |
8,047 |
|
Datasheet |
- | HALF-PAK | Tube | Obsolete | Schottky | 15 V | 240A | 370 mV @ 240 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 mA @ 15 V | 21700pF @ 5V, 1MHz | - | - | Chassis Mount | HALF-PAK | - |
|
JANTXV1N6620USDIODE GEN PURP 220V 1.2A D-5A |
2,170 |
|
Datasheet |
- | SQ-MELF, A | Bulk | Active | Standard | 220 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 220 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
JAN1N6076DIODE GEN PURP 50V 1.3A E-PAK |
8,709 |
|
Datasheet |
- | E, Axial | Bulk | Active | Standard | 50 V | 1.3A | 1.76 V @ 18.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 50 V | - | Military | MIL-PRF-19500/503 | Through Hole | E-PAK | -65°C ~ 155°C |
|
|
JAN1N6077DIODE GEN PURP 100V 1.3A E-PAK |
3,037 |
|
Datasheet |
- | E, Axial | Bulk | Active | Standard | 100 V | 1.3A | 1.76 V @ 18.8 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | - | Military | MIL-PRF-19500/503 | Through Hole | E-PAK | -65°C ~ 155°C |
|
|
JANTXV1N6620UDIODE GEN PURP 200V 1.2A D-5A |
3,057 |
|
- |
- | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1.2A | 1.4 V @ 1.2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | - | Military | MIL-PRF-19500/585 | Surface Mount | D-5A | -65°C ~ 150°C |
|
|
DS75-12BDIODE GP 1.2KV 110A DO203AB |
4,175 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Box | Obsolete | Standard | 1200 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
75.jpg)
|
DSI75-12BDIODE GP 1.2KV 110A DO203AB |
9,704 |
|
Datasheet |
- | DO-203AB, DO-5, Stud | Box | Obsolete | Standard | 1200 V | 110A | 1.17 V @ 150 A | Standard Recovery >500ns, > 200mA (Io) | - | 6 mA @ 1200 V | - | - | - | Chassis, Stud Mount | DO-203AB | -40°C ~ 180°C |
|
|
JAN1N6628UDIODE GEN PURP 600V 1.75A D-5B |
9,997 |
|
Datasheet |
- | SQ-MELF, E | Bulk | Active | Standard | 600 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 600 V | - | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
JAN1N6628USDIODE GEN PURP 660V 1.75A D-5B |
2,873 |
|
- |
- | SQ-MELF, E | Bulk | Active | Standard | 660 V | 1.75A | 1.35 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 2 µA @ 660 V | 40pF @ 10V, 1MHz | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
|
|
JAN1N6630UDIODE GEN PURP 900V 1.4A D-5B |
6,375 |
|
- |
- | SQ-MELF, E | Bulk | Active | Standard | 900 V | 1.4A | 1.4 V @ 1.4 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 2 µA @ 900 V | - | Military | MIL-PRF-19500/590 | Surface Mount | D-5B | -65°C ~ 150°C |
