Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5962-1621001VXCDIODE ARRAY GP 140V 1A 20-CSOIC |
8,213 |
|
Datasheet |
- | 20-CSOIC (0.295", 7.50mm Width) | Bulk | Active | 8 Pair Series Connection | Standard | 140 V | 1A | 2.08 V @ 700 mA | Standard Recovery >500ns, > 200mA (Io) | - | 100 nA @ 75 V | -55°C ~ 150°C | - | - | Surface Mount | 20-CSOIC |
|
SDT40A100CTEDIODE ARR SCHOTT 100V 20A TO-262 |
6,810 |
|
- |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 720 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 |
|
|
BAS56 TRDIODE ARRAY GP 60V 200MA SOT-143 |
7,412 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tape & Reel (TR) | Obsolete | 2 Independent | Standard | 60 V | 200mA (DC) | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 100 nA @ 60 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-143 |
|
|
BAS56 BKDIODE ARRAY GP 60V 200MA SOT-143 |
6,630 |
|
Datasheet |
- | TO-253-4, TO-253AA | Tube | Obsolete | 2 Independent | Standard | 60 V | 200mA (DC) | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 100 nA @ 60 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-143 |
|
|
CDBGBSC101200-GDIODE ARRAY SIC 1200V 18A TO-247 |
8,916 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 18A (DC) | 1.7 V @ 5 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247 |
|
|
CDBGBSC20650-GDIODE ARRAY SIC 650V 33A TO-247 |
6,691 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 33A (DC) | 1.7 V @ 10 A | No Recovery Time > 500mA (Io) | 0 ns | 100 µA @ 650 V | -55°C ~ 175°C | - | - | Through Hole | TO-247 |
|
NRVHP820MFDT3GDIODE ARRAY GP 200V 4A 8DFN |
4,708 |
|
Datasheet |
SWITCHMODE™ | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | 2 Independent | Standard | 200 V | 4A | 1.05 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
|
NRVHP820MFDWFT3GDIODE ARRAY GP 200V 4A 8DFN |
9,467 |
|
Datasheet |
SWITCHMODE™ | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | 2 Independent | Standard | 200 V | 4A | 1.05 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
|
NRVHP8H200MFDT1GDIODE ARRAY GP 200V 4A 8DFN |
7,210 |
|
Datasheet |
SWITCHMODE™ | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | 2 Independent | Standard | 200 V | 4A | 910 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
|
NRVHP8H200MFDT3GDIODE ARRAY GP 200V 4A 8DFN |
5,648 |
|
Datasheet |
SWITCHMODE™ | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | 2 Independent | Standard | 200 V | 4A | 910 mV @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 500 nA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
CD412299CDIODE MOD GP 2200V 100A POWRBLOK |
4,613 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Active | 1 Pair Series Connection | Standard | 2200 V | 100A | 1.65 V @ 330 A | Standard Recovery >500ns, > 200mA (Io) | - | 12 mA @ 2200 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|

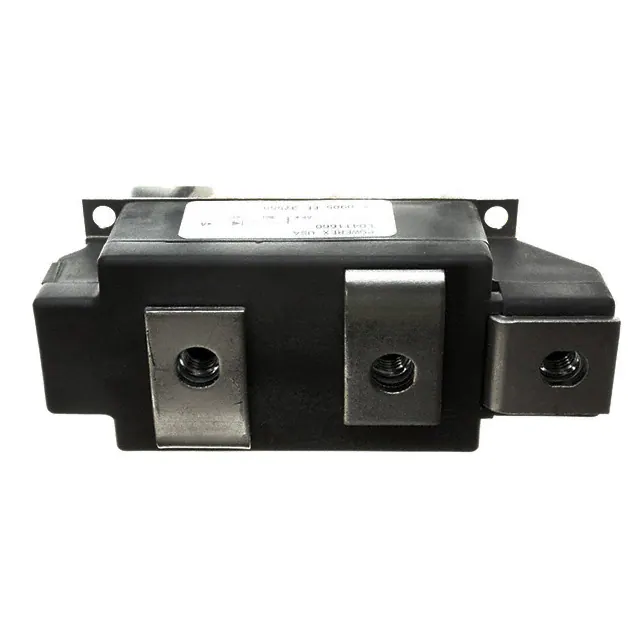

LD412660DIODE MOD GP 2600V 600A POWRBLOK |
4,123 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Active | 1 Pair Series Connection | Standard | 2600 V | 600A | 1.18 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|

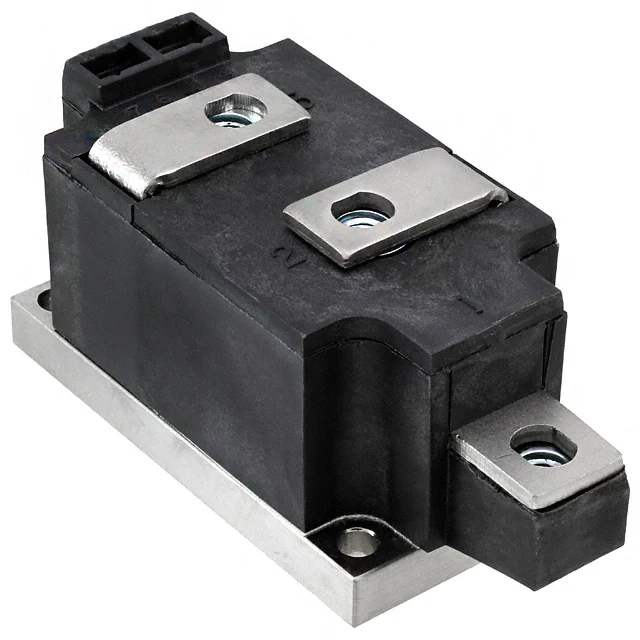

ND411635DIODE MOD GP 1600V 350A POWRBLOK |
4,773 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Active | 1 Pair Series Connection | Standard | 1600 V | 350A | 1.2 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | 10 µs | 30 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
|
LX7710MDWC-QDIODE ARRAY GP 140V 1A 20-CSOIC |
9,500 |
|
Datasheet |
- | 20-CSOIC (0.295", 7.50mm Width) | Bulk | Active | 8 Pair Series Connection | Standard | 140 V | 1A (DC) | 2.08 V @ 700 mA | Standard Recovery >500ns, > 200mA (Io) | - | 100 nA @ 75 V | -55°C ~ 150°C | - | - | Surface Mount | 20-CSOIC |
|
|
LX7710MDWC-VDIODE ARRAY GP 140V 1A 20-CSOIC |
7,180 |
|
Datasheet |
- | 20-CSOIC (0.295", 7.50mm Width) | Bulk | Active | 8 Pair Series Connection | Standard | 140 V | 1A (DC) | 2.08 V @ 700 mA | Standard Recovery >500ns, > 200mA (Io) | - | 100 nA @ 75 V | -55°C ~ 150°C | - | - | Surface Mount | 20-CSOIC |
|
MBRF10200CT-LJDIODE ARR SCHOT 200V 5A ITO220AB |
5,399 |
|
Datasheet |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 5A | 910 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | ITO-220AB |
|
MBRF2060CTDIODE ARRAY SCHOTT 60V ITO220AB |
3,458 |
|
- |
- | TO-220-3 Full Pack, Isolated Tab | Tube | Obsolete | - | Schottky | 60 V | - | 640 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | ITO-220AB |
|
BAV70W/MIFDIODE ARRAY GP 100V 175MA SOT323 |
7,092 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 100 V | 175mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
BAV70W/MIXDIODE ARRAY GP 100V 175MA SOT323 |
7,087 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 100 V | 175mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
BAV99W/MIFDIODE ARRAY GP 100V 150MA SOT323 |
4,157 |
|
Datasheet |
BAV99 | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | 1 Pair Series Connection | Standard | 100 V | 150mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 150°C (Max) | - | - | Surface Mount | SOT-323 |
