Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBR1660-5300HE3/45DIODE ARRAY SCHOTT 60V ITO220AC |
7,452 |
|
Datasheet |
- | TO-220-2 Full Pack, Isolated Tab | Tube | Obsolete | - | Schottky | 60 V | - | 750 mV @ 16 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 60 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | ITO-220AC |
|
MBR2545CT-7HE3/45DIODE ARR SCHOT 45V 12.5A TO2203 |
9,800 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 12.5A | 820 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
MBR2545CT801HE3/45DIODE ARR SCHOT 45V 12.5A TO2203 |
8,645 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 12.5A | 820 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
MBRB10H150CT1E3/45DIODE ARR SCHOTT 150V 5A TO263AB |
3,825 |
|
- |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 5A | 770 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | - | -65°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|
|
MBRF10H150CT1E3/45DIODE ARR SCHOT 150V 5A ITO220AC |
7,190 |
|
Datasheet |
- | TO-220-2 Full Pack, Isolated Tab | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 5A | 880 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 150 V | -65°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | ITO-220AC |
|
|
SBL1030CT801HE3/45DIODE ARR SCHOTT 30V 5A TO-220-3 |
6,477 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 5A | 550 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 30 V | -40°C ~ 125°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
SBL1040CT804HE3/45DIODE ARR SCHOTT 40V 5A TO-220-3 |
8,816 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 40 V | 5A | 550 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 40 V | -40°C ~ 125°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
UG10DCT-5301HE3/45DIODE ARRAY GP 200V 5A TO-220-3 |
6,648 |
|
- |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 5A | 1.1 V @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 10 µA @ 200 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
UG18DCT-5410HE3/45DIODE ARRAY GP 200V 18A TO-220-3 |
4,791 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 200 V | 18A | 1.1 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 10 µA @ 200 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
V20100RHM3/4WDIODE ARR SCHOT 100V 10A TO2203 |
2,015 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 900 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 µA @ 100 V | -40°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
|
V40100KHM3/4WDIODE ARR SCHOT 100V 20A TO2203 |
9,699 |
|
- |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 20A | 820 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
|
V80100PW-M3R/4WDIODE ARR SCHOTT 100V 40A TO-3PW |
8,453 |
|
Datasheet |
- | TO-3P-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 40A | 840 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-3PW |
|
|
FME-210BDIODE ARR SCHOT 150V 10A TO220F3 |
3,166 |
|
- |
- | TO-220-3 Full Pack | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 10A | 900 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 150 V | -40°C ~ 150°C | - | - | Through Hole | TO-220F-3 |
|
|
FME-220ADIODE ARRAY SCHOTTKY TO220F |
4,474 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FMV-205GURDIODE SCHOTTKY |
2,872 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

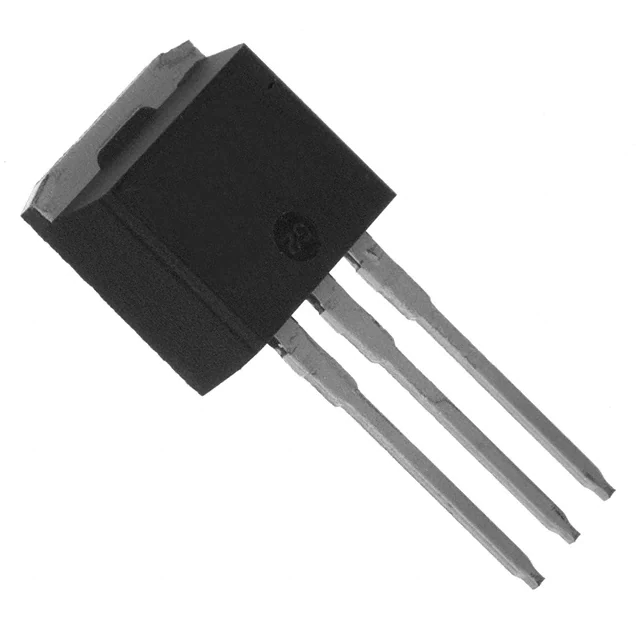

SDT30100CTEDIODE ARR SCHOTT 100V 15A TO-262 |
6,939 |
|
- |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 70 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 |
|
|
SDT40A120CTEDIODE ARR SCHOTT 120V 20A TO-262 |
8,077 |
|
- |
- | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 880 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 120 µA @ 120 V | -55°C ~ 150°C | - | - | Through Hole | TO-262 |
|
|
VS-20CTH03-M3PDIODE ARRAY GP 300V 10A TO-220-3 |
9,572 |
|
Datasheet |
FRED Pt® | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 300 V | 10A | 1.25 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 20 µA @ 300 V | -65°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
|
VS-20CTH03-N3PDIODE ARRAY GP 300V 10A TO-220-3 |
5,627 |
|
Datasheet |
FRED Pt® | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 300 V | 10A | 1.25 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 20 µA @ 300 V | -65°C ~ 175°C | - | - | Through Hole | TO-220-3 |
|
|
5962-1621001QXCDIODE ARRAY GP 140V 1A 20-CSOIC |
5,418 |
|
Datasheet |
- | 20-CSOIC (0.295", 7.50mm Width) | Bulk | Active | 8 Pair Series Connection | Standard | 140 V | 1A | 2.08 V @ 700 mA | Standard Recovery >500ns, > 200mA (Io) | - | 100 nA @ 75 V | -55°C ~ 150°C | - | - | Surface Mount | 20-CSOIC |
Diode Arrays Electronic Components
Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
