Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTST60100CTGDIODE ARR SCHOTT 100V 30A TO-220 |
8,971 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 30A | 840 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 100 V | -40°C ~ 150°C | - | - | Through Hole | TO-220 |
|
|
NTSV20H120CTGDIODE ARR SCHOTT 120V 10A TO-220 |
7,238 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 10A | 1.03 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 35 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-220 |
|
NTSW60200CTGDIODE ARR SCHOTT 200V 30A TO2473 |
7,277 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 30A | 1.9 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | -55°C ~ 150°C | - | - | Through Hole | TO-247-3 |
|
|
MBR2045CT-LJ-01DIODE ARR SCHOTT 45V 10A TO2203 |
4,672 |
|
Datasheet |
- | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 10A | 640 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 45 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
CMUSH2-4A TR PBFREEDIODE ARR SCHOT 40V 200MA SOT523 |
7,529 |
|
Datasheet |
CMUSH2-4 | SC-89, SOT-490 | Tape & Reel (TR) | Obsolete | 1 Pair Common Anode | Schottky | 40 V | 200mA | 750 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 25 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-523 |
|
JANTX1N6660CCT1DIODE ARR SCHOTT 45V 15A TO254AA |
5,629 |
|
Datasheet |
- | TO-254-3, TO-254AA (Straight Leads) | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Military | MIL-PRF-19500/608 | Through Hole | TO-254AA |
|
|
JAN1N6660DT1DIODE ARR SCHOTT 45V 15A TO254AA |
3,561 |
|
Datasheet |
- | TO-254-3, TO-254AA (Straight Leads) | Bulk | Active | 1 Pair Series Connection | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Military | MIL-PRF-19500/608 | Through Hole | TO-254AA |
|
|
JANTX1N6660DT1DIODE ARR SCHOTT 45V 15A TO254AA |
6,916 |
|
Datasheet |
- | TO-254-3, TO-254AA (Straight Leads) | Bulk | Active | 1 Pair Series Connection | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Military | MIL-PRF-19500/608 | Through Hole | TO-254AA |
|
|
JANTXV1N6660DT1DIODE ARR SCHOTT 45V 15A TO254AA |
5,897 |
|
Datasheet |
- | TO-254-3, TO-254AA (Straight Leads) | Bulk | Active | 1 Pair Series Connection | Schottky | 45 V | 15A | 750 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -65°C ~ 150°C | Military | MIL-PRF-19500/608 | Through Hole | TO-254AA |
|
|
RJS6004WDPK-00#T0DIODE ARRAY SIC 600V 10A TO-3P |
6,737 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 600 V | 10A (DC) | 1.8 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 15 ns | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | TO-3P |
|
|
RJS6005WDPK-00#T0DIODE ARRAY SIC 600V 15A TO-3P |
5,995 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 600 V | 15A (DC) | 1.8 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 15 ns | 10 µA @ 600 V | -55°C ~ 155°C | - | - | Through Hole | TO-3P |
|
NHP620MFDT3GDIODE ARRAY GP 200V 3A 8DFN |
7,766 |
|
Datasheet |
- | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | 2 Independent | Standard | 200 V | 3A | 1 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 500 nA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | 8-DFN (5x6) Dual Flag (SO8FL-Dual) |
|
NSVBAV70DXV6T5GDIODE ARRAY GP 100V 200MA SOT563 |
2,843 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Obsolete | 1 Pair Common Cathode | Standard | 100 V | 200mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 6 ns | 1 µA @ 100 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOT-563 |
|
SBT700-06RH-1EDIODE ARR SCHOTT 60V 70A TO3PF3 |
4,919 |
|
Datasheet |
- | SC-94 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 70A | 660 mV @ 30 A | No Recovery Time > 500mA (Io) | - | 1 mA @ 30 V | 150°C (Max) | - | - | Through Hole | TO-3PF-3 |
|
UH4PDCHM3_A/HDIODE ARRAY GP 200V 2A TO277A |
6,065 |
|
Datasheet |
eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 2A | 1.05 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 24 ns | 5 µA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|
|
UH4PDCHM3_A/IDIODE ARRAY GP 200V 2A TO277A |
5,571 |
|
Datasheet |
eSMP® | TO-277, 3-PowerDFN | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 2A | 1.05 V @ 2 A | Fast Recovery =< 500ns, > 200mA (Io) | 24 ns | 5 µA @ 200 V | -55°C ~ 175°C | Automotive | AEC-Q101 | Surface Mount | TO-277A (SMPC) |
|

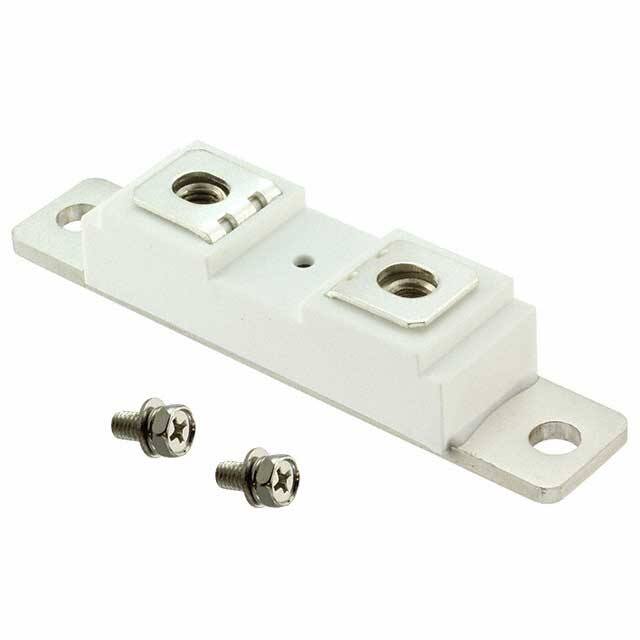

MF200K06F4-BPDIODE MODULE GP 600V 100A F4 |
7,659 |
|
Datasheet |
- | F4 Module | Bulk | Obsolete | 1 Pair Common Anode | Standard | 600 V | 100A | 1.15 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 105 ns | 500 µA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | F4 |
|
VS-30CPU04HN3DIODE ARRAY GP 400V 15A TO-247AC |
3,582 |
|
- |
FRED Pt® | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 400 V | 15A | 1.25 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 46 ns | 10 µA @ 400 V | -65°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-247AC |
|
VS-CPH3006L-M3DIODE ARRAY GP 600V 15A TO247-3 |
8,933 |
|
- |
FRED Pt® | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 2.45 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 15 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-247-3 |
|
|
VS-CPH6006L-M3DIODE ARRAY GP 600V 15A TO247-3 |
7,921 |
|
- |
FRED Pt® | TO-247-3 | Tube | Obsolete | 1 Pair Common Cathode | Standard | 600 V | 15A | 2.45 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 15 µA @ 600 V | -65°C ~ 175°C | - | - | Through Hole | TO-247-3 |
