Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VT1045CHM3/4WDIODE ARR SCHOTT 45V 5A TO-220-3 |
5,561 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 5A | 580 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 45 V | -40°C ~ 150°C | - | - | Through Hole | TO-220-3 |
|
VT1060CHM3/4WDIODE ARR SCHOTT 60V 5A TO-220AB |
2,252 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 5A | 700 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 60 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
|
VT2045CHM3/4WDIODE ARR SCHOTT 45V 10A TO2203 |
8,579 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 10A | 580 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
VT2060CHM3/4WDIODE ARR SCHOTT 60V 10A TO220AB |
2,137 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 10A | 650 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 850 µA @ 60 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
|
VT3045CHM3/4WDIODE ARR SCHOTT 45V 15A TO2203 |
6,951 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 15A | 570 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 2 mA @ 45 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
VT3060GHM3/4WDIODE ARR SCHOTT 60V 15A TO2203 |
2,342 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 60 V | 15A | 730 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 850 µA @ 60 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
VT3080CHM3/4WDIODE ARR SCHOTT 80V 15A TO2203 |
4,861 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 15A | 820 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 700 µA @ 80 V | -55°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
VT4045CHM3/4WDIODE ARR SCHOTT 45V 20A TO2203 |
7,276 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 20A | 580 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 45 V | -40°C ~ 150°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|

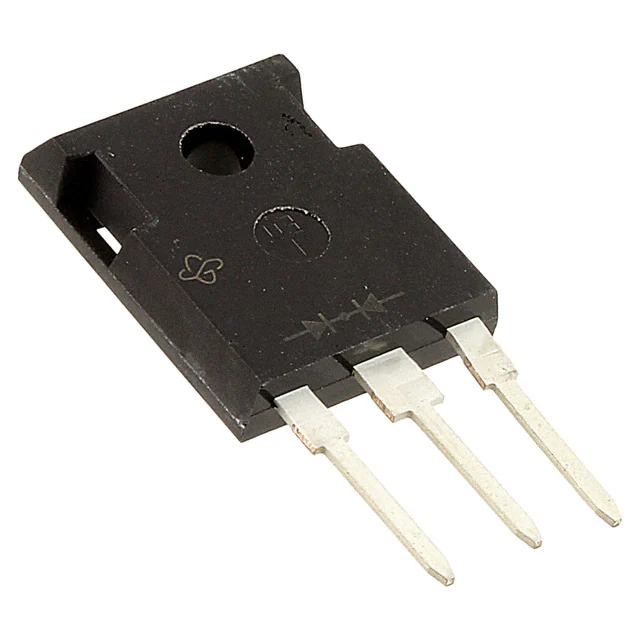

VT80L45PW-M3/4WDIODE ARRAY SCHOT 45V 40A TO-3PW |
3,799 |
|
- |
- | TO-3P-3 Full Pack | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 45 V | 40A | 580 mV @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 9 mA @ 45 V | -40°C ~ 150°C | - | - | Through Hole | TO-3PW |
|
NTSB40200CTGDIODE ARRAY SCHOT 200V 20A D2PAK |
3,169 |
|
Datasheet |
- | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 200 V | 20A | 1.45 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 200 V | -55°C ~ 150°C | - | - | Surface Mount | D2PAK |
|
|
NTST40H120CTGDIODE ARR SCHOTT 120V 20A TO-220 |
2,447 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 20A | 910 mV @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 65 µA @ 120 V | -40°C ~ 150°C | - | - | Through Hole | TO-220 |
|
STPSC20H065CTDIODE ARRAY SIC 650V 10A TO-220 |
8,728 |
|
Datasheet |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 650 V | 10A | 1.75 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 650 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-220 |
|
GSXF030A060S1-D3DIODE MODULE GP 600V 30A SOT-227 |
2,299 |
|
- |
- | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | Standard | 600 V | 30A | 1.5 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 60 ns | 25 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
GSXF030A120S1-D3DIODE MODULE GP 1200V 30A SOT227 |
7,314 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | Standard | 1200 V | 30A | 2.35 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 85 ns | 25 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
V40M150CHM3/4WDIODE ARR SCHOT 150V 20A TO220AB |
3,673 |
|
Datasheet |
TMBS® | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 150 V | 20A | 1.43 V @ 20 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 250 µA @ 150 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-220AB |
|
|
V60M120CHM3/4WDIODE ARR SCHOT 120V 30A TO2203 |
2,421 |
|
- |
- | TO-220-3 | Tube | Obsolete | 1 Pair Common Cathode | Schottky | 120 V | 30A | 970 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 500 µA @ 120 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Through Hole | TO-220-3 |
|
|
GSXD030A004S1-D3DIODE MOD SCHOTT 45V 30A SOT-227 |
7,088 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | Schottky | 45 V | 30A | 700 mV @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 45 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
GSXD080A006S1-D3DIODE MOD SCHOTT 60V 80A SOT-227 |
2,176 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | Schottky | 60 V | 80A | 750 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 60 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
GSXD120A015S1-D3DIODE MOD SCHOT 150V 120A SOT227 |
3,618 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | Schottky | 150 V | 120A | 880 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 150 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
|
GSXD160A012S1-D3DIODE MOD SCHOT 120V 160A SOT227 |
9,562 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | Schottky | 120 V | 160A | 880 mV @ 160 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3 mA @ 120 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
Diode Arrays Electronic Components
Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
