Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDD255-12N1DIODE MODULE GP 1200V 270A Y1-CU |
2,440 |
|
Datasheet |
- | Y1-CU | Box | Active | 1 Pair Series Connection | Standard | 1200 V | 270A | 1.4 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | Y1-CU |
|

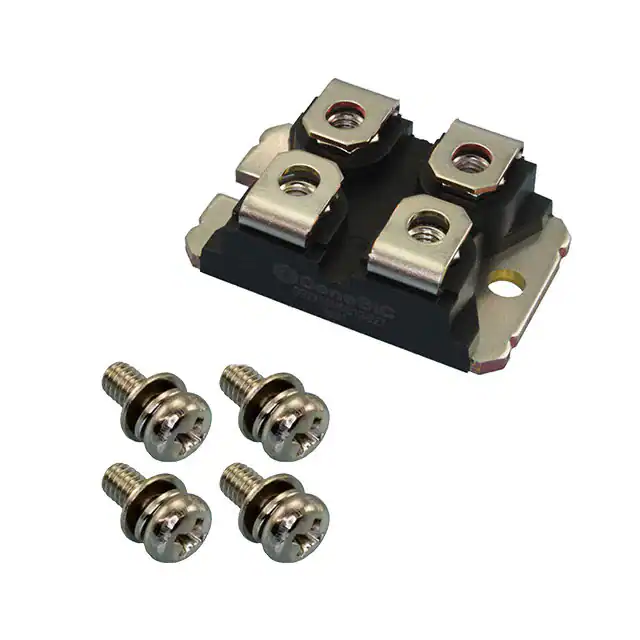

GB2X100MPS12-227DIODE MOD SIC 1200V 185A SOT-227 |
6,906 |
|
Datasheet |
SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 185A (DC) | 1.8 V @ 100 A | No Recovery Time > 500mA (Io) | 0 ns | 80 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
MDD310-20N1DIODE MODULE GP 2000V 305A Y2DCB |
9,209 |
|
Datasheet |
- | Y2-DCB | Box | Active | 1 Pair Series Connection | Standard | 2000 V | 305A | 1.2 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | 40 mA @ 2000 V | -40°C ~ 150°C | - | - | Chassis Mount | Y2-DCB |
|
VSKC250-08DIODE MOD GP 800V 250A MAGNAPAK |
7,329 |
|
Datasheet |
- | 3-MAGN-A-PAK™ | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 800 V | 250A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | - | - | - | Chassis Mount | MAGN-A-PAK® |
|
|
VSKJ250-08DIODE MOD GP 800V 250A MAGNAPAK |
7,018 |
|
Datasheet |
- | MAGN-A-PAK | Bulk | Obsolete | 1 Pair Common Anode | Standard | 800 V | 250A | - | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | - | - | - | Chassis Mount | MAGN-A-PAK® |
|
F1842CCD1000DIODE MODULE GP 1000V 40A MODULE |
3,102 |
|
Datasheet |
- | Module | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 1000 V | 40A (DC) | 1.4 V @ 120 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
|
ND410826DIODE MOD GP 800V 260A POWRBLOK |
8,457 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | 1 Pair Series Connection | Standard | 800 V | 260A | 1.35 V @ 1500 A | Standard Recovery >500ns, > 200mA (Io) | - | 50 mA @ 800 V | - | - | - | Chassis Mount | POW-R-BLOK™ Module |
|
F1857CCD600DIODE MODULE GP 600V 55A MODULE |
6,980 |
|
Datasheet |
- | Module | Bulk | Not For New Designs | 1 Pair Common Cathode | Standard | 600 V | 55A (DC) | 1.4 V @ 165 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
MBRT600100DIODE MOD SCHOT 100V 300A 3TOWER |
7,527 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 300A | 880 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT600100RDIODE MOD SCHOT 100V 300A 3TOWER |
6,699 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 100 V | 300A | 880 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60020DIODE MOD SCHOTT 20V 300A 3TOWER |
8,913 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 20 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60020RDIODE MOD SCHOTT 20V 300A 3TOWER |
6,469 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 20 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60030DIODE MOD SCHOTT 30V 300A 3TOWER |
3,608 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 30 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60030RDIODE MOD SCHOTT 30V 300A 3TOWER |
4,633 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 30 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60035DIODE MOD SCHOTT 35V 300A 3TOWER |
2,341 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 35 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60035RDIODE MOD SCHOTT 35V 300A 3TOWER |
3,808 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 35 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60040DIODE MOD SCHOTT 40V 300A 3TOWER |
2,017 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 40 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60040RDIODE MOD SCHOTT 40V 300A 3TOWER |
4,661 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 40 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60045DIODE MOD SCHOTT 45V 300A 3TOWER |
7,256 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 45 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT60045RDIODE MOD SCHOTT 45V 300A 3TOWER |
4,298 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 45 V | 300A | 750 mV @ 300 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
