Diode Arrays

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
DD390N22STIMHPSA1 DIODE MOD GP 2200V 390A BGPB50SB Infineon Technologies	5	RFQ	Datasheet	-	Module	Tray	Active	1 Pair Series Connection	Standard	2200 V	390A	1.34 V @ 800 A	Standard Recovery >500ns, > 200mA (Io)	-	1 mA @ 2200 V	150°C	-	-	Chassis Mount	BG-PB50SB-1
2949389 DIODE MOD GP 1000V 1.5A MOD Phoenix Contact	4	RFQ	Datasheet	-	Housed Axial	Bulk	Active	8 Independent	Standard	1000 V	1.5A	-	Standard Recovery >500ns, > 200mA (Io)	-	10 µA @ 1000 V	-20°C ~ 50°C	-	-	DIN Rail	Module
DD89N14KHPSA1 DIODE MODULE GP 1400V 89A MODULE Infineon Technologies	21	RFQ	Datasheet	-	Module	Tray	Active	1 Pair Common Cathode	Standard	1400 V	89A	1.5 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 1400 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
2950116 DIODE MOD GP 1300V 700MA MOD Phoenix Contact	2	RFQ	Datasheet	-	Housed Axial	Bulk	Active	14 Common Cathode	Standard	1300 V	700mA	-	Standard Recovery >500ns, > 200mA (Io)	-	5 µA @ 1300 V	-20°C ~ 50°C	-	-	DIN Rail	Module

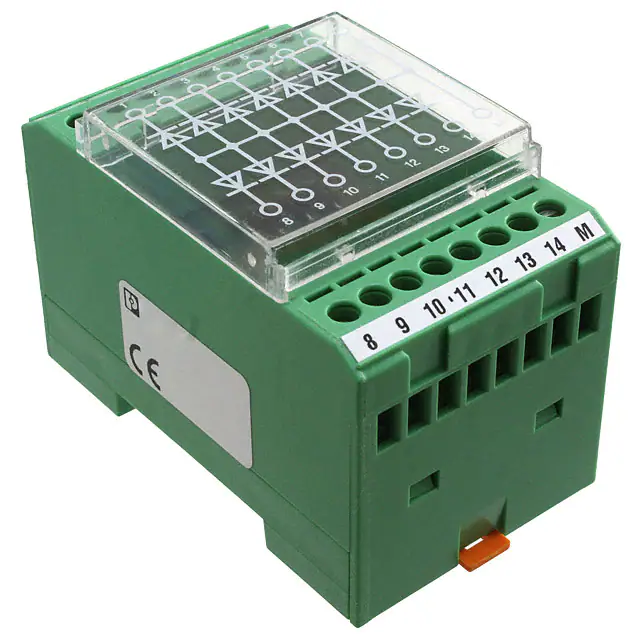

2950129 DIODE MOD GP 1300V 700MA MOD Phoenix Contact	2	RFQ	Datasheet	-	Housed Axial	Bulk	Active	14 Common Anode	Standard	1300 V	700mA	-	Standard Recovery >500ns, > 200mA (Io)	-	5 µA @ 1300 V	-20°C ~ 50°C	-	-	DIN Rail	Module
DD171N18KHPSA2 DIODE MODULE GEN PURP 1800V 171A Infineon Technologies	4	RFQ	Datasheet	DD171N	Module	Tray	Active	1 Pair Series Connection	Standard	1800 V	171A	1.26 V @ 500 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 1800 V	150°C	-	-	Chassis Mount	-
F1892CCD600 DIODE MODULE GP 600V 90A MODULE Sensata-Crydom	12	RFQ	Datasheet	-	Module	Bulk	Active	1 Pair Common Cathode	Standard	600 V	90A (DC)	1.4 V @ 270 A	Standard Recovery >500ns, > 200mA (Io)	-	-	-40°C ~ 125°C	-	-	Chassis Mount	Module
APTDF400KK20G DIODE MODULE GP 200V 500A SP6 Microchip Technology	25	RFQ	Datasheet	-	LP4	Bulk	Active	1 Pair Common Cathode	Standard	200 V	500A	1.1 V @ 400 A	Fast Recovery =< 500ns, > 200mA (Io)	60 ns	750 µA @ 200 V	-	-	-	Chassis Mount	SP6
MDD312-18N1 DIODE MODULE GP 1800V 310A Y1-CU IXYS	6	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	1800 V	310A	1.32 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	30 mA @ 1800 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU
MDMA380P1600KC DIODE MOD GP 1600V 380A MOD IXYS	3	RFQ	Datasheet	-	Module	Box	Active	1 Pair Series Connection	Standard	1600 V	380A	1.07 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	500 µA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
MDD255-20N1 DIODE MODULE GP 2000V 270A Y1-CU IXYS	6	RFQ	Datasheet	-	Y1-CU	Box	Active	1 Pair Series Connection	Standard	2000 V	270A	1.4 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	30 mA @ 2000 V	-40°C ~ 150°C	-	-	Chassis Mount	Y1-CU
MSCDC100A120D1PAG DIODE MODULE SIC 1200V 100A D1P Microchip Technology	10	RFQ	Datasheet	-	Module	Box	Active	1 Pair Series Connection	SiC (Silicon Carbide) Schottky	1200 V	100A	1.8 V @ 100 A	No Recovery Time > 500mA (Io)	0 ns	400 µA @ 1200 V	-40°C ~ 175°C	-	-	Chassis Mount	D1P
DD380N16AHPSA1 DIODE MOD GP 1600V 380A MOD Infineon Technologies	6	RFQ	Datasheet	-	Module	Tray	Active	2 Independent	Standard	1600 V	380A	1.4 V @ 1500 A	Standard Recovery >500ns, > 200mA (Io)	-	25 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
DD350N16KHPSA1 DIODE MOD GP 1600V 350A MOD Infineon Technologies	3	RFQ	Datasheet	-	Module	Tray	Active	1 Pair Series Connection	Standard	1600 V	350A	1.28 V @ 1000 A	Standard Recovery >500ns, > 200mA (Io)	-	30 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
DD175N34KHPSA1 DIODE MOD GP 3400V 223A MOD Infineon Technologies	3	RFQ	Datasheet	-	Module	Tray	Active	1 Pair Series Connection	Standard	3400 V	223A	2.05 V @ 600 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 3400 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
MSCDC200KK120D1PAG DIODE MODULE SIC 1200V 200A D1P Microchip Technology	6	RFQ	Datasheet	-	Module	Box	Active	1 Pair Common Cathode	SiC (Silicon Carbide) Schottky	1200 V	200A	1.8 V @ 200 A	No Recovery Time > 500mA (Io)	0 ns	800 µA @ 1200 V	-40°C ~ 175°C	-	-	Chassis Mount	D1P
DD700N22KHPSA3 DIODE MOD GP 2200V 700A MOD Infineon Technologies	3	RFQ	Datasheet	-	Module	Tray	Active	1 Pair Series Connection	Standard	2200 V	700A	1.36 V @ 2200 A	Standard Recovery >500ns, > 200mA (Io)	-	40 mA @ 2200 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
PD700MYN18 DIODE MOD GP 1800V 700A MOD KYOCERA AVX	24	RFQ	Datasheet	-	Module	Bulk	Active	1 Pair Series Connection	Standard	1800 V	700A	1.3 V @ 2000 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 1800 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
DD435N34KHPSA1 DIODE MOD GP 3400V 573A MOD Infineon Technologies	2	RFQ	Datasheet	-	Module	Tray	Active	1 Pair Series Connection	Standard	3400 V	573A	1.71 V @ 1200 A	Standard Recovery >500ns, > 200mA (Io)	-	50 mA @ 3400 V	-40°C ~ 150°C	-	-	Chassis Mount	Module
1PS301,115 DIODE ARRAY GP 80V 160MA SOT-323 Nexperia USA Inc.	814	RFQ	Datasheet	-	SC-70, SOT-323	Tape & Reel (TR)	Active	1 Pair Common Cathode	Standard	80 V	160mA (DC)	1.2 V @ 100 mA	Small Signal =< 200mA (Io), Any Speed	4 ns	500 nA @ 80 V	150°C (Max)	Automotive	AEC-Q101	Surface Mount	SOT-323

Total 15087 Record«Prev 1... 204 205 206 207208209 210 211...755 Next»

Diode Arrays Electronic Components

Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
