Diode Arrays

Mfr. Part #	Availability	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io) (per Diode)	Voltage - Forward (Vf) (Max) @ If	Speed	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Grade	Qualification	Mounting Type	Supplier Device Package
VS-VSKCS209/150 DIODE MOD SCHOTTKY 150V ADDAPAK Vishay General Semiconductor - Diodes Division	6	RFQ	Datasheet	-	ADD-A-PAK (3)	Bulk	Active	1 Pair Common Cathode	Schottky	150 V	100A	1.01 V @ 100 A	Fast Recovery =< 500ns, > 200mA (Io)	-	6 mA @ 150 V	-55°C ~ 150°C	-	-	Chassis Mount	ADD-A-PAK®
MDA95-22N1B DIODE MOD GP 2200V 120A TO-240AA IXYS	24	RFQ	Datasheet	-	TO-240AA	Box	Active	1 Pair Common Anode	Standard	2200 V	120A	1.2 V @ 150 A	Standard Recovery >500ns, > 200mA (Io)	-	200 µA @ 2200 V	-40°C ~ 150°C	-	-	Chassis Mount	TO-240AA
MDD172-08N1 DIODE MODULE GP 800V 190A Y4-M6 IXYS	12	RFQ	Datasheet	-	Y4-M6	Box	Active	1 Pair Series Connection	Standard	800 V	190A	1.15 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 800 V	-40°C ~ 150°C	-	-	Chassis Mount	Y4-M6
VS-VSKCS400/045 DIODE MOD SCHOT 45V 200A ADDAPAK Vishay General Semiconductor - Diodes Division	9	RFQ	Datasheet	-	ADD-A-PAK (3)	Bulk	Active	1 Pair Common Cathode	Schottky	45 V	200A	670 mV @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 45 V	-55°C ~ 150°C	-	-	Chassis Mount	ADD-A-PAK®
MSC2X50SDA070J DIODE MODULE SIC 700V 50A SOT227 Microchip Technology	53	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	700 V	50A (DC)	1.8 V @ 50 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 700 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227 (ISOTOP®)
VS-VSKCS403/100 DIODE MOD SCHOTTKY 100V ADDAPAK Vishay General Semiconductor - Diodes Division	13	RFQ	Datasheet	-	ADD-A-PAK (3)	Bulk	Active	1 Pair Common Cathode	Schottky	100 V	200A	990 mV @ 200 A	Fast Recovery =< 500ns, > 200mA (Io)	-	6 mA @ 100 V	-55°C ~ 175°C	-	-	Chassis Mount	ADD-A-PAK®
VS-303CNQ100PBF DIODE MOD SCHOTTKY 100V TO-244AB Vishay General Semiconductor - Diodes Division	10	RFQ	Datasheet	-	TO-244AB	Bulk	Active	1 Pair Common Cathode	Schottky	100 V	150A	1.09 V @ 300 A	Fast Recovery =< 500ns, > 200mA (Io)	-	4.5 mA @ 100 V	175°C (Max)	-	-	Chassis Mount	TO-244AB
VS-HFA320NJ40CPBF DIODE MOD GP 400V 420A TO-244AB Vishay General Semiconductor - Diodes Division	9	RFQ	Datasheet	-	TO-244AB	Bulk	Active	1 Pair Common Cathode	Standard	400 V	420A	1.54 V @ 320 A	Fast Recovery =< 500ns, > 200mA (Io)	140 ns	3 mA @ 400 V	-	-	-	Chassis Mount	TO-244AB
VS-440CNQ030PBF DIODE MOD SCHOT 30V 220A TO244AB Vishay General Semiconductor - Diodes Division	12	RFQ	Datasheet	-	TO-244AB	Tray	Active	1 Pair Common Cathode	Schottky	30 V	220A	630 mV @ 440 A	Fast Recovery =< 500ns, > 200mA (Io)	-	20 mA @ 30 V	150°C (Max)	-	-	Chassis Mount	TO-244AB
MF300C12F2-BP DIODE MODULE GP 1200V 300A F2 Micro Commercial Co	7	RFQ	Datasheet	-	F2 Module	Bulk	Active	1 Pair Common Cathode	Standard	1200 V	300A	3 V @ 300 A	Fast Recovery =< 500ns, > 200mA (Io)	135 ns	1 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	F2
MDD172-18N1 DIODE MODULE GP 1800V 190A Y4-M6 IXYS	16	RFQ	Datasheet	-	Y4-M6	Box	Active	1 Pair Series Connection	Standard	1800 V	190A	1.15 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 1800 V	-40°C ~ 150°C	-	-	Chassis Mount	Y4-M6
VS-VSKD236/16PBF DIODE MOD GP 1600V 115A MAGNAPAK Vishay General Semiconductor - Diodes Division	18	RFQ	Datasheet	-	3-MAGN-A-PAK™	Bulk	Active	1 Pair Common Cathode	Standard	1600 V	115A	-	Standard Recovery >500ns, > 200mA (Io)	-	20 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	MAGN-A-PAK®
MSC2X50SDA120J DIODE MOD SIC 1200V 50A SOT227 Microchip Technology	9	RFQ	Datasheet	-	SOT-227-4, miniBLOC	Tube	Active	2 Independent	SiC (Silicon Carbide) Schottky	1200 V	50A (DC)	1.8 V @ 50 A	No Recovery Time > 500mA (Io)	0 ns	200 µA @ 1200 V	-55°C ~ 175°C	-	-	Chassis Mount	SOT-227 (ISOTOP®)
MD200C16D2-BP DIODE MODULE GP 1600V 200A D2 Micro Commercial Co	68	RFQ	Datasheet	-	D2	Tray	Active	1 Pair Series Connection	Standard	1600 V	200A	1.3 V @ 300 A	Standard Recovery >500ns, > 200mA (Io)	-	9 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	D2
M5060THC600 DIODE MODULE GP 600V 60A MODULE Sensata-Crydom	11	RFQ	Datasheet	-	Module	Bulk	Active	3 Common Cathode	Standard	600 V	60A	1.35 V @ 60 A	Standard Recovery >500ns, > 200mA (Io)	-	-	-40°C ~ 125°C	-	-	Chassis Mount	Module

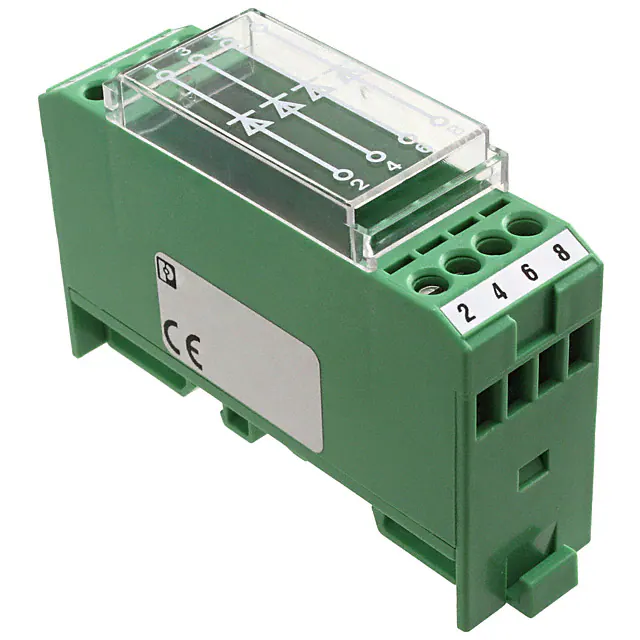

2950048 GEN PURP 1300V 700MA MODULE Phoenix Contact	3	RFQ	Datasheet	-	Housed Axial	Bulk	Active	4 Independent	Standard	1300 V	700mA	-	Standard Recovery >500ns, > 200mA (Io)	-	5 µA @ 1300 V	-20°C ~ 50°C	-	-	-	Module
MEA250-12DA DIODE MODULE GP 1200V 260A Y4-M6 IXYS	7	RFQ	Datasheet	FRED	Y4-M6	Box	Active	1 Pair Common Anode	Standard	1200 V	260A	1.8 V @ 260 A	Fast Recovery =< 500ns, > 200mA (Io)	500 ns	12 mA @ 1200 V	-40°C ~ 150°C	-	-	Chassis Mount	Y4-M6

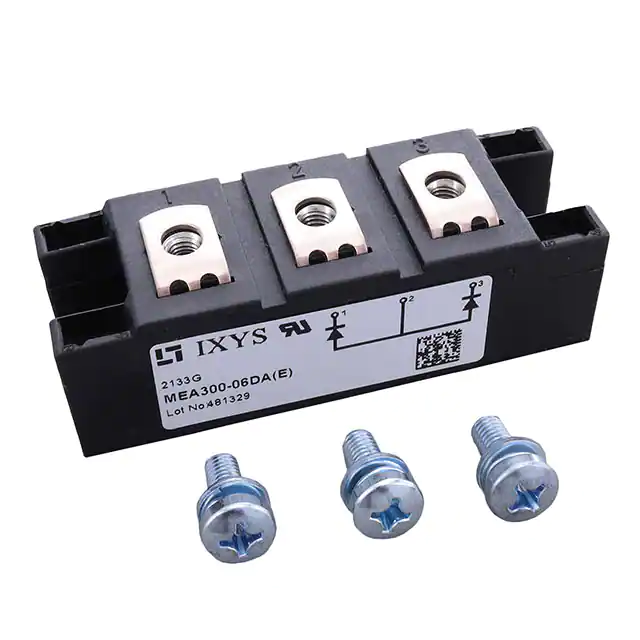

MEA300-06DA DIODE MODULE GP 600V 304A Y4-M6 IXYS	6	RFQ	Datasheet	FRED	Y4-M6	Box	Active	1 Pair Common Anode	Standard	600 V	304A	1.36 V @ 260 A	Fast Recovery =< 500ns, > 200mA (Io)	300 ns	12 mA @ 600 V	-40°C ~ 150°C	-	-	Chassis Mount	Y4-M6
MDMA280P1600YD DIODE MODULE GP 1600V 280A Y4-M6 IXYS	18	RFQ	Datasheet	MDMA280P1600YD	Y4-M6	Box	Active	1 Pair Series Connection	Standard	1600 V	280A	1.14 V @ 280 A	Standard Recovery >500ns, > 200mA (Io)	-	1 mA @ 1600 V	-40°C ~ 150°C	-	-	Chassis Mount	Y4-M6
DD390N16SHPSA1 DIODE MOD GP 1600V 390A BGPB50SB Infineon Technologies	5	RFQ	Datasheet	-	Module	Tray	Active	1 Pair Series Connection	Standard	1600 V	390A	1.34 V @ 800 A	Standard Recovery >500ns, > 200mA (Io)	-	1 mA @ 1600 V	-40°C ~ 125°C	-	-	Chassis Mount	BG-PB50SB-1

Total 15087 Record«Prev 1... 203 204 205 206207208 209 210...755 Next»

Diode Arrays Electronic Components

Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
