Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M5060THA1200DIODE MODULE GP 1200V 60A MODULE |
4 |
|
Datasheet |
- | Module | Bulk | Active | 3 Common Anode | Standard | 1200 V | 60A | 1.35 V @ 50 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
2950103DIODE MOD GP 1300V 700MA MOD |
2 |
|
Datasheet |

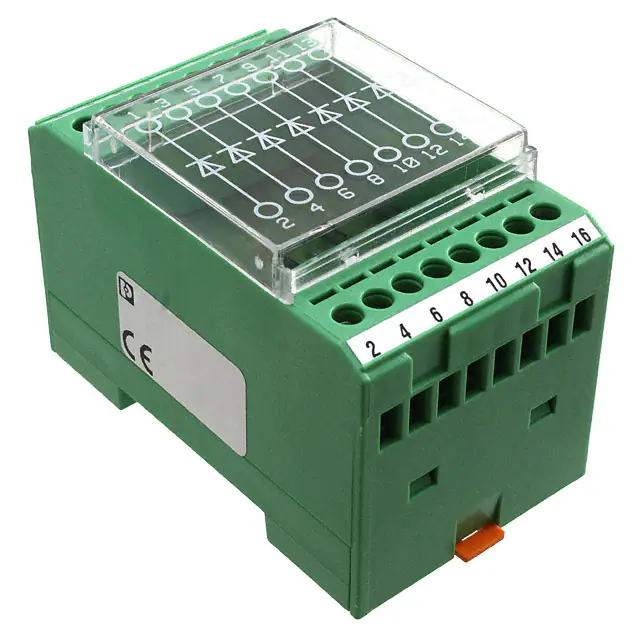

- | Housed Axial | Bulk | Active | 8 Independent | Standard | 1300 V | 700mA | - | Standard Recovery >500ns, > 200mA (Io) | - | 5 µA @ 1300 V | -20°C ~ 50°C | - | - | DIN Rail | Module |
|
2954798DIODE MOD GP 1300V 400MA MOD |
9 |
|
Datasheet |
- | Module | Bulk | Active | 4 Pair Common Cathode | Standard | 1300 V | 400mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
DD98N22KHPSA1DIODE MODULE GP 2200V 98A MODULE |
5 |
|
Datasheet |
- | Module | Tray | Active | 1 Pair Series Connection | Standard | 2200 V | 98A | 1.53 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 25 mA @ 2200 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
DZ800S17K3HOSA1DIODE MODULE GP 1700V AG62MM-2 |
22 |
|
Datasheet |

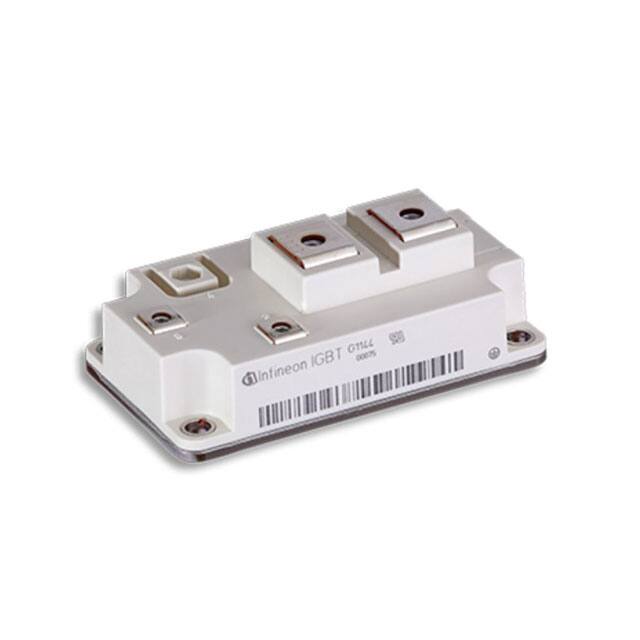

- | Module | Tray | Active | - | Standard | 1700 V | - | 2.2 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | AG-62MM-2 |
|
DD260N16KHPSA1DIODE MOD GP 1600V 260A MOD |
3 |
|
Datasheet |
- | Module | Tray | Active | 1 Pair Series Connection | Standard | 1600 V | 260A | 1.32 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | 30 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | Module |
|
2954895DIODE MOD GP 1300V 500MA MOD |
6 |
|
Datasheet |
- | Module | Bulk | Active | 17 Independent | Standard | 1300 V | 500mA | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
DD1000S33HE3BPSA1DIODE MODULE GP 3300V AGIHVB1303 |
2 |
|
Datasheet |
- | Module | Bulk | Active | 2 Independent | Standard | 3300 V | - | 3.85 V @ 1000 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 150°C | - | - | Chassis Mount | AG-IHVB130-3 |
|
|
DD600S65K3NOSA1DIODE MODULE GP 6500V AIHV130-6 |
2 |
|
Datasheet |
- | Module | Tray | Active | 2 Independent | Standard | 6500 V | - | 3.5 V @ 600 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -50°C ~ 125°C | - | - | Chassis Mount | A-IHV130-6 |
|
BAV199Q-13-FDIODE ARRAY GP 85V 140MA SOT23-3 |
353 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 85 V | 140mA (DC) | 1.1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 5 nA @ 75 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
1SS361,LJ(CTDIODE ARRAY GP 80V 100MA SSM |
611 |
|
Datasheet |
- | SC-75, SOT-416 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 125°C (Max) | - | - | Surface Mount | SSM |
|
BAW156T-7-FDIODE ARRAY GP 85V 125MA SOT-523 |
309 |
|
Datasheet |
- | SOT-523 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 85 V | 125mA (DC) | 1.1 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 3 µs | 5 nA @ 75 V | -65°C ~ 150°C | - | - | Surface Mount | SOT-523 |
|
|
BAS70-05Q-7-FDIODE ARR SCHOTT 70V 70MA SOT233 |
295 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 70 V | 70mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 2.5 ns | 100 nA @ 50 V | -55°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
BAS7006WH6327XTSA1DIODE ARR SCHOTT 70V 70MA SOT323 |
240 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 70 V | 70mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 100 ps | 100 nA @ 50 V | 150°C (Max) | - | - | Surface Mount | PG-SOT323 |
|
BAS31,215DIODE ARR AVAL 90V 250MA TO236AB |
815 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Avalanche | 90 V | 250mA (DC) | 1 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 90 V | 150°C (Max) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
BAT54CV,115DIODE ARR SCHOT 30V 200MA SOT666 |
882 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 2 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | - | 2 µA @ 25 V | 125°C (Max) | - | - | Surface Mount | SOT-666 |
|
DA204KT146DIODE ARRAY GP 20V 100MA SMD3 |
701 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 20 V | 100mA | 1 V @ 10 mA | Small Signal =< 200mA (Io), Any Speed | - | 100 nA @ 15 V | 150°C (Max) | - | - | Surface Mount | SMD3 |
|
DAN202FMT106DIODE ARRAY GP 80V 100MA UMD3 |
944 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 70 V | 150°C | Automotive | AEC-Q101 | Surface Mount | UMD3 |
|
HN2D01JE(TE85L,F)DIODE ARRAY GP 80V 100MA ESV |
491 |
|
Datasheet |
- | SOT-553 | Tape & Reel (TR) | Active | 2 Independent | Standard | 80 V | 100mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 1.6 ns | 500 nA @ 80 V | 150°C (Max) | - | - | Surface Mount | ESV |
|
1PS70SB86,115DIODE ARR SCHOTT 15V 30MA SOT323 |
371 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Schottky | 15 V | 30mA (DC) | 700 mV @ 30 mA | Small Signal =< 200mA (Io), Any Speed | - | 200 nA @ 1 V | 125°C (Max) | Automotive | AEC-Q100 | Surface Mount | SOT-323 |
Diode Arrays Electronic Components
Explore Diode Arrays electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
