Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-U5FH240FA120DIODE MOD GP 1200V 120A SOT-227 |
86 |
|
Datasheet |
FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 120A (DC) | 2.5 V @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | 98 ns | 160 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
VS-RA220FA120DIODE MOD GP 1200V 108A SOT-227 |
57 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Standard | 1200 V | 108A | 1.31 V @ 110 A | Standard Recovery >500ns, > 200mA (Io) | - | 150 µA @ 1200 V | -55°C ~ 150°C | - | - | Chassis Mount | SOT-227 |
|
STPS240H100TV1YDIODE MOD SCHOT 100V 120A ISOTOP |
11 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Schottky | 100 V | 120A | 825 mV @ 120 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 90 µA @ 100 V | -40°C ~ 175°C | Automotive | AEC-Q101 | Chassis Mount | ISOTOP |
|
DSEI2X30-06CDIODE MODULE GP 600V 30A SOT227B |
79 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 30A | 1.6 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 µA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|
|
VS-QA300FA17DIODE MOD SCHOT 170V 300A SOT227 |
87 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Bulk | Active | 2 Independent | Schottky | 170 V | 300A | 980 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | 71 ns | 200 µA @ 170 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
DSEI2X101-12ADIODE MOD GP 1200V 91A SOT227B |
51 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 1200 V | 91A | 1.87 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 3 mA @ 1200 V | -40°C ~ 150°C | - | - | Chassis Mount | SOT-227B |
|
VS-403CNQ100PBFDIODE MOD SCHOTTKY 100V TO-244AB |
27 |
|
Datasheet |
- | TO-244AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 100 V | 200A | 840 mV @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 100 V | -55°C ~ 175°C | - | - | Chassis Mount | TO-244AB |
;;.jpg)
|
208CMQ060DIODE MODULE SCHOT 60V 100A PRM4 |
24 |
|
Datasheet |
- | PRM4 | Bulk | Active | 1 Pair Common Cathode | Schottky | 60 V | 100A | 680 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.1 mA @ 60 V | -55°C ~ 150°C | - | - | Chassis Mount | PRM4 (Isolated) |
|

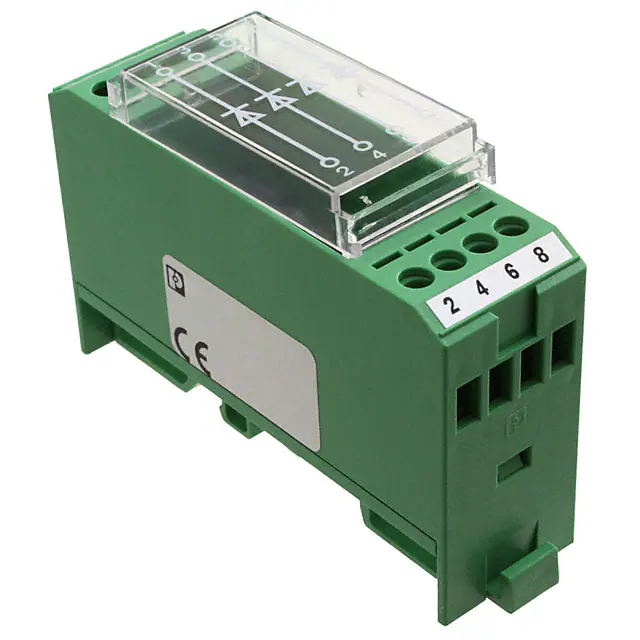

2952790DIODE MOD GP 1000V 1.5A MOD |
3 |
|
Datasheet |
- | Module | Bulk | Active | 4 Independent | Standard | 1000 V | 1.5A | - | Standard Recovery >500ns, > 200mA (Io) | - | 10 µA @ 1000 V | -20°C ~ 50°C | - | - | DIN Rail/Channel | Module |
|
VS-VSKCS409/150DIODE MOD SCHOTTKY 150V ADDAPAK |
21 |
|
Datasheet |
- | ADD-A-PAK (3) | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 200A | 1.03 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 6 mA @ 150 V | -55°C ~ 175°C | - | - | Chassis Mount | ADD-A-PAK® |
|
M50100THA1600DIODE MOD GP 1600V 100A MOD |
19 |
|
Datasheet |
- | Module | Bulk | Active | 3 Common Anode | Standard | 1600 V | 100A | 1.2 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | Module |
|
2320160GEN PURP 48V 20A MODULE |
18 |
|
Datasheet |
- | Din Rail Module | Bulk | Active | 1 Pair Common Cathode | Standard | 48 V | 20A (DC) | - | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 70°C | - | - | - | Module |
|
BAT54CW,115DIODE ARR SCHOT 30V 200MA SOT323 |
745 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 150°C (Max) | - | - | Surface Mount | SOT-323 |
|
BAV70,LMDIODE ARRAY GP 100V 215MA SOT233 |
262 |
|
Datasheet |
- | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 100 V | 215mA | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 200 nA @ 80 V | 150°C (Max) | - | - | Surface Mount | SOT-23-3 |
|
|
BAS21SW,115DIODE ARRAY GP 250V 225MA SOT323 |
939 |
|
Datasheet |
- | SC-70, SOT-323 | Tape & Reel (TR) | Active | 1 Pair Series Connection | Standard | 250 V | 225mA (DC) | 1.25 V @ 200 mA | Fast Recovery =< 500ns, > 200mA (Io) | 50 ns | 100 nA @ 200 V | 150°C (Max) | Automotive | AEC-Q100 | Surface Mount | SOT-323 |
|
BAS70TWQ-7-FDIODE ARR SCHOTT 70V 70MA SOT363 |
336 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 3 Independent | Schottky | 70 V | 70mA (DC) | 1 V @ 15 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 100 nA @ 50 V | -55°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
|
|
BAV99DWQ-7-FDIODE ARRAY GP 75V 215MA SOT-363 |
160 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 Pair Series Connection | Standard | 75 V | 215mA (DC) | 1.25 V @ 150 mA | Fast Recovery =< 500ns, > 200mA (Io) | 4 ns | 2.5 µA @ 75 V | -65°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOT-363 |
.jpg)
|
BAS21PGXDIODE ARRAY GP 250V 125MA 5TSSOP |
951 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | 2 Independent | Standard | 250 V | 125mA (DC) | 1 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 50 ns | 100 nA @ 200 V | 150°C (Max) | Automotive | AEC-Q101 | Surface Mount | 5-TSSOP |
|
BAS16VV,115DIODE ARRAY GP 100V 200MA SOT666 |
875 |
|
Datasheet |
- | SOT-563, SOT-666 | Tape & Reel (TR) | Not For New Designs | 3 Independent | Standard | 100 V | 200mA (DC) | 1.25 V @ 150 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 500 nA @ 80 V | 150°C (Max) | - | - | Surface Mount | SOT-666 |
|
|
BAS40DW-05-7-FDIODE ARR SCHOT 40V 200MA SOT363 |
806 |
|
Datasheet |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | 2 Pair Common Cathode | Schottky | 40 V | 200mA (DC) | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 30 V | -55°C ~ 125°C | - | - | Surface Mount | SOT-363 |
