Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP21SHCQESWITCH PUSH DPST-NO 1A 120V |
0 |
|
Datasheet |
TP | Tray | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
BH16NBNBBSWITCH PB SPST 1A 125VAC |
0 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Silver | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
BH16NBNBWSWITCH PB SPST 1A 125VAC |
0 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button, Flush | - | Silver | LED, White | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
ELUMOATHQ1C12SWITCH PUSH SPDT 0.25A 50V |
0 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, White | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
SF6UEESWITCH PUSHBUTTON |
0 |
|
- |
F | Bulk | Obsolete | Through Hole, Right Angle | Standard | 6PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
8161SHAV2QE2SWITCH PUSHBUTTON SPDT 6A 120V |
0 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
8168SHV3QE2SWITCH PUSHBUTTON SPDT 6A 120V |
0 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
8551J82ZQE22SWITCH PUSH SPST-NO 3A 120V |
0 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
EB2011-BA/AT512MLIGHT TOUCH MINIATURE PUSHBUTTON |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -10°C ~ 70°C |
|
|
PVA6LRP21101SWITCH PB SPST 2A 36V |
0 |
|
Datasheet |
PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (DC) | - | 36 V | Round, Button | - | Black | LED, White | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
8168S1H9AV2BE3SWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
|
TP11SHCGESWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
2-1825097-3SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
FHNEBBWNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, White | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNBBBYNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Yellow | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNEBBGNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Green | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNEBBBNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | LED, Blue | 3.3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNBBBWNSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, White | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|
|
FHNBBBONSWITCH PB SPST 2A 48VDC |
0 |
|
Datasheet |
FH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Orange | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 55°C |
|

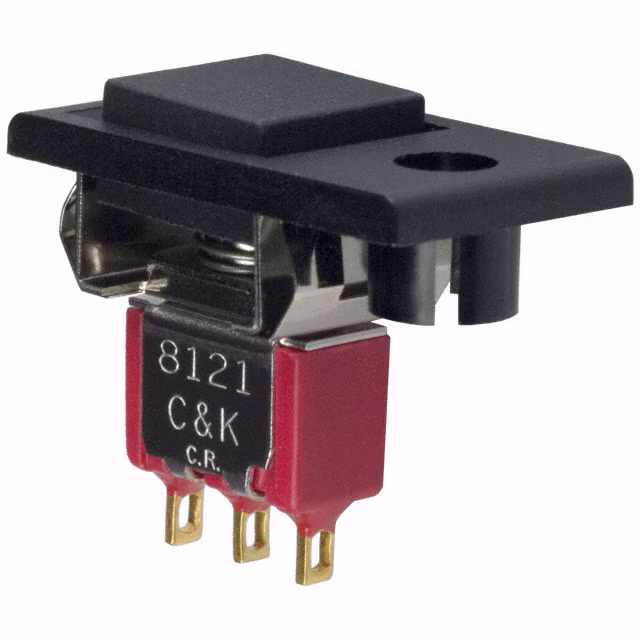

8121J82ZGE22SWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
