Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-PB7-1Z-A-RR-H-3-G2AANTI-VANDAL PUSHBUTTON SWITCH, 1 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 5A (AC) | 250 V | - | Round, Button | - | Silver | LED, Red/Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | -25°C ~ 55°C |
|
|
SW-PB7-1S-A-RB-H-3-G2AANTI-VANDAL PUSHBUTTON SWITCH, 1 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 5A (AC) | 250 V | - | Round, Button | - | Silver | LED, Blue/Red | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | -25°C ~ 55°C |
|
|
SW-PB7-1S-A-RR-H-4-G2AANTI-VANDAL PUSHBUTTON SWITCH, 1 |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-Mom | 5A (AC) | 250 V | - | Round, Button | - | Silver | LED, Red/Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | -25°C ~ 55°C |
|
|
104-0101-016PUSHBUTTON SWITCHES |
0 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

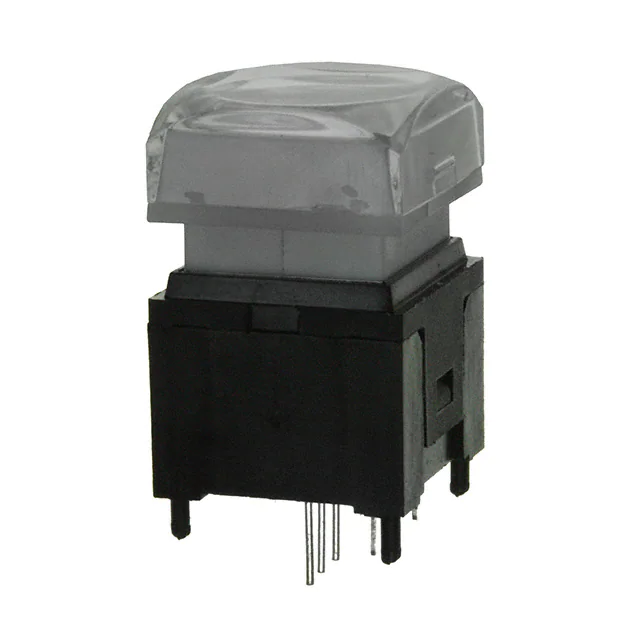

LP11OA1TBSRRSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Red/Red | 2.2 VDC | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
LP11OA1TBSYYSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Yellow/Yellow | 2.2 VDC | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
LP11OA1NASRYSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Red/Yellow | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
LP11OA1TCSYYSWITCH PUSH SPST-NO 0.1A 12V |
0 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Yellow/Yellow | 2.2 VDC | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
|
700SP7B10M7CESwitches |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | - | - | - | Round, Plunger | - | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
RP8500B2M1CEBLKBLKBLUSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
RP8500 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | - | Black | LED, Blue | 3.1 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
700CDP7P60M1QESwitches |
0 |
|
Datasheet |
700C | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | White | - | - | Solder, Quick Connect - 0.079" (2.0mm) | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
FP2F-5M-ZSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
FP | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Yellow | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
700SP7B10VS2QEC2BLKSWITCH PB SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
38FSP8B6M6RTSWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
38F | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
38FSP8B6M7RTSWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
38F | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
M2B15AA5W40/UCSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
M2 | Bulk | Obsolete | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
PV1H240NNSWITCH PB SPST-NO 2A 36V |
0 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
PV1S240NNSWITCH PB SPST-NO 2A 36V |
0 |
|
Datasheet |
PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
700CSP7B60M2REHSWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
700C | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
700DP7B10M6QEC1BLKSWITCH PUSHBUTTON DPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
