Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700DP7B10M1REC3BLKSWITCH PUSH DPDT 0.4VA 20V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
9533NCD4SWITCH PUSH SPST-NO 0.1A 30V |
0 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
|
800SP8B9M6RESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
982A03RXSWITCH PUSH SPDT 0.25A 28V |
0 |
|
Datasheet |
98000R | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 125mA (AC), 250mA (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
800SP8B7M7RESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
700SP7B20M7RE700C2BLKSWITCH PB SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
700SP7B20M7RE700C2GRNSWITCH PB SPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | - | Green | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
38FSP8B9M2QTSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
38F | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
800SP8B7M6QESWITCH PUSHBUTTON SPDT 3A 120V |
0 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

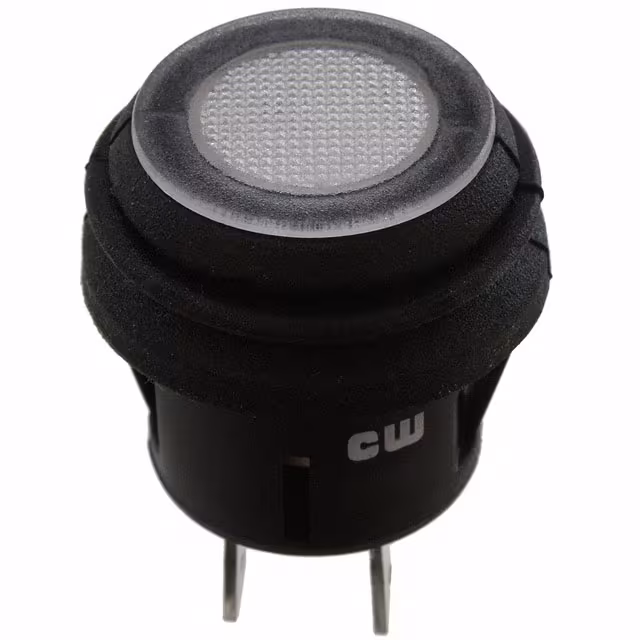

GPB527A202BWSWITCH PUSH DPST-NO 10A 125V |
0 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | White | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
|
700SP7B20VS5RESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
700 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
F2UOATB01AAUSWITCH PUSH DPDT 0.04A 50V |
0 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 40mA (AC), 10mA (DC) | 50 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|
MPB103CSWITCH PUSH SPST-NO 3A 125V |
0 |
|
- |
MPB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | Overtravel | Circular - 6.35mm Dia | -10°C ~ 60°C |
|
|
700DP7B10M1QEHSWITCH PUSHBUTTON DPDT 3A 120V |
0 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
104-0401-001PUSHBUTTON SWITCHES |
0 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CFPA-1FB4-A2WSwitches |
0 |
|
- |
CFPA | Tray | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (DC) | - | 28 V | Plunger for Cap | - | - | - | - | Gull Wing | - | - | - | -40°C ~ 85°C |
|
|
ESANML3GBRSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
ES | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC/DC) | 125 V | 50 V | Round, Button | No Marking | Red | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
ESANML5GBRSWITCH PB SPST-NO 0.125A 125V |
0 |
|
Datasheet |
ES | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC/DC) | 125 V | 50 V | Round, Button | No Marking | Green | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

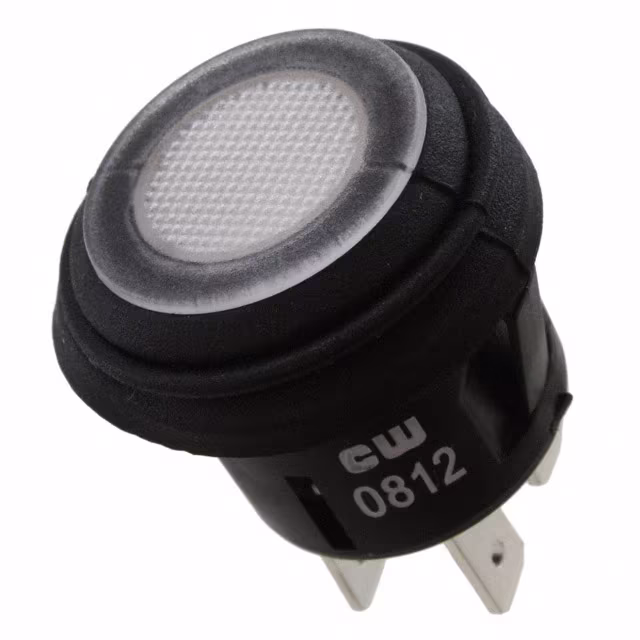

GPB527B202BWSWITCH PUSHBUTTON DPST 10A 125V |
0 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | White | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
|
BB25AB/M4GSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Box | Obsolete | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
