Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC1258OASSSWITCH PUSHBUTTON SPDT 0.3A 30V |
0 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | - | -20°C ~ 85°C |
|
|
MX1B-L2NASWITCH PUSH LOW PROFILE |
0 |
|
Datasheet |
MX | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Red | LED, Blue/Green/Red | - | PC Pin | IP40 | - | - | 5°C ~ 40°C |
|
|
MHPS4284NSWITCH PUSH 4PDT 0.1A 30V |
0 |
|
- |
MHPS | Bulk | Active | Through Hole | Keyswitch | 4PDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|
|
TM1-01Switches |
0 |
|
- |
TM | Bulk | Active | Through Hole | Standard | SPST | Off-Mom | 50mA (DC) | - | 48 V | Square, Button | - | Black | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
MX1AG1DWSWITCH PUSH SPST-NO 0.01A 12V |
0 |
|
Datasheet |
MX | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | - | - | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
LC2254OANPSWITCH PUSH DPDT 0.3A 30V |
0 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
|
LC2255OANSSWITCH PUSHBUTTON DPDT 0.3A 30V |
0 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | - | -20°C ~ 85°C |
|
|
LC2255EENSSWITCH PB DPDT 0.3A 30V |
0 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | - | - | - | - | Solder Lug | - | - | - | -20°C ~ 85°C |
|
|
LC2258EENSSWITCH PUSHBUTTON DPDT 0.3A 30V |
0 |
|
Datasheet |
LC | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Rectangular - 7.50mm x 7.20mm | -20°C ~ 85°C |
|
|
MX3A-11NBMX SILENT, RGB, BLACK STEM, FULL |
0 |
|
Datasheet |
MX | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | - | Black | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
|
MX3A-L1NBMX SILENT, RGB, RED STEM, FULL T |
0 |
|
Datasheet |
MX | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | - | Red | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
|
MX3A-L1DWMX SILENT, RED STEM, FULL TRAVEL |
0 |
|
Datasheet |
MX | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | - | Red | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
|
MHPS2283LSWITCH PUSH DPDT 0.1A 30V |
0 |
|
- |
MHPS | Bulk | Active | Through Hole | Keyswitch | DPDT | - | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|
|
PVA10AH12.2NSWITCH PUSH DPST-NO 0.1A 32V |
0 |
|
- |
PVA | Bulk | Obsolete | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
PS62D13K1SWITCH PUSHBUTTON |
0 |
|
Datasheet |
PS, COMAX | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
.jpg)
|
REL BAR F3X10 (PLASTIC)SWITCH PUSHBUTTON |
0 |
|
- |
* | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PS1024BAREDSWITCH PB SPST-NC 3A 125V |
0 |
|
Datasheet |
PS1024 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | -20°C ~ 65°C |
|
|
PS1024BBLKSWITCH PB SPST-NC 3A 125V |
0 |
|
Datasheet |
PS1024 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Round, Button | - | Black | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | -20°C ~ 65°C |
|

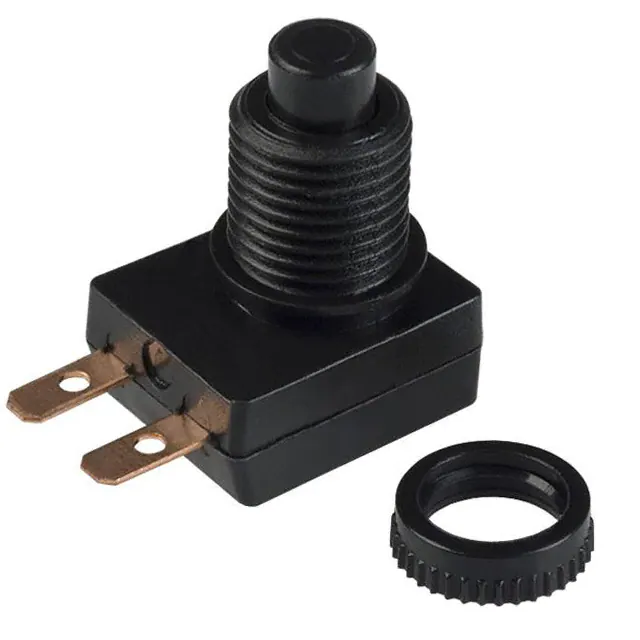

40-4532-00SWITCH PUSHBUTTON SPST 5A 14V |
0 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 5A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|

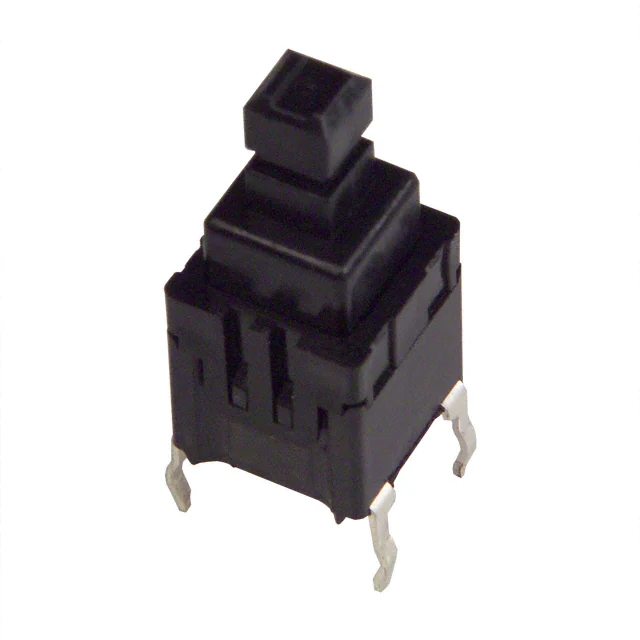

ESE-20D441SWITCH PUSH SPST-NO 0.1A 14V |
0 |
|
Datasheet |
ESE20D | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | - |
