Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

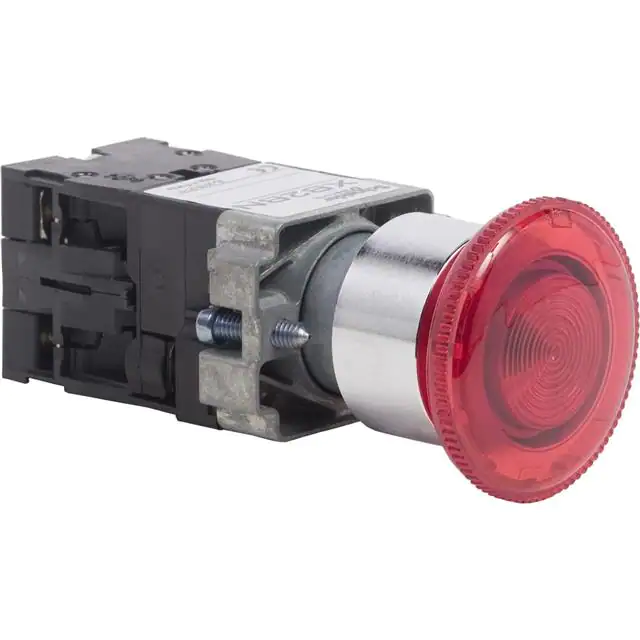

XB2BN4162COMPLETE PUSH BUTTON, HARMONY XA |
1 |
|
Datasheet |
Harmony | Box | Active | Panel Mount, Front | Standard | - | - | 10A (AC) | 600 V | - | Round, Button, Flush | - | Red | - | - | Screw Terminal | - | - | Circular - 22.00mm Dia | -25°C ~ 55°C |
|
XB5AW3445ILLUMINATED PUSH BUTTON, HARMONY |
1 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 220 ~ 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
A2W-TC-WC1 US2YBSWITCH PB WIRELESS FG YEL |
1 |
|
Datasheet |
A2W | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button, Full Guard | No Marking | Yellow | - | - | Wireless | IP65 - Dust Tight, Water Resistant | - | - | -10°C ~ 55°C |
|
A2W-TC-WC1 US2GBSWITCH PB FULLGRD GRN WIRELESS |
1 |
|
Datasheet |
A2W | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button, Full Guard | No Marking | Green | - | - | Wireless | IP65 - Dust Tight, Water Resistant | - | - | -10°C ~ 55°C |
|
A2W-TC-WC1 US1ABSWITCH PB MUSHRM BLU WIRELESS |
0 |
|
Datasheet |
A2W | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button, Mushroom | No Marking | Blue | - | - | Wireless | IP65 - Dust Tight, Water Resistant | - | - | -10°C ~ 55°C |
|
|
A2W-TC-WC1 US1BBSWITCH PB MUSHRM BLK WIRELESS |
0 |
|
Datasheet |
A2W | Bulk | Active | Chassis Mount | Standard | - | - | - | - | - | Round, Button, Mushroom | No Marking | Black | - | - | Wireless | IP65 - Dust Tight, Water Resistant | - | - | -10°C ~ 55°C |
|
|
52C201S30MMSTATION,STAINLESS STEEL,CMPL |
1 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | - | On-Mom, Off-Mom | - | - | - | Round, Button | - | Black, Red | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
XB5S1B2M12HARMONY XB5S, BIOMETRIC SWITCH B |
0 |
|
Datasheet |
Harmony XB5S | Box | Active | Panel Mount, Front | Fingerprint Reader | - | - | - | - | - | - | - | - | - | - | Connector | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -5°C ~ 50°C |
|
B3J-3400SWITCH PUSH SPST-NO 0.05A 24V |
0 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | LED, Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
LP2S2WHTBLU-NSWITCH PUSH SPST-NO 1MA 20V |
0 |
|
Datasheet |
LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
TL2205EEBPGBSWITCH PUSH DPDT 0.1A 30V |
12 |
|
Datasheet |
TL2205 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Oval, Button | No Marking | Black (White Window) | LED, Green | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP9B9M6REHSWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
MPB01-1C33-S-DSPDT, THROUGH HOLE, 3.3 MM PUSH, |
5 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
C4V-811M-DSWITCH PUSH SPST-NO 8A 125V |
0 |
|
Datasheet |
C4V | Tray | Active | Panel Mount, Side | Standard | SPST-NO | Off-Mom | 8A (AC) | 125 V | - | Square, Plunger | No Marking | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -10°C ~ 55°C |
|

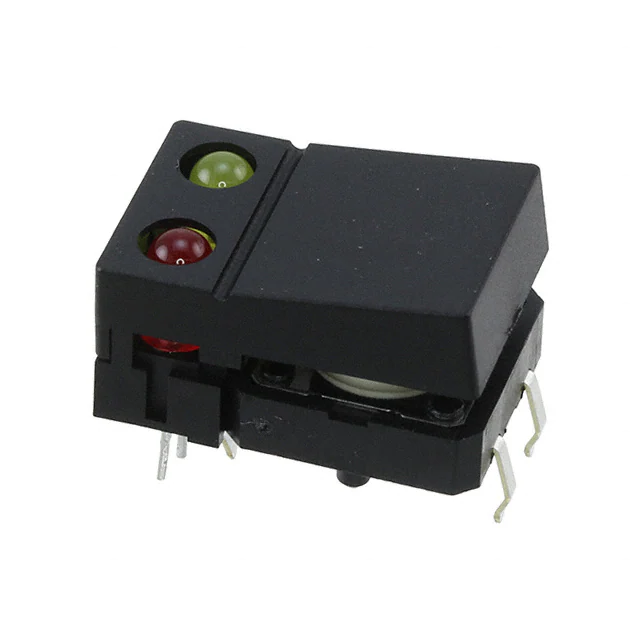

B3J-5100SWITCH PUSH SPST-NO 0.05A 24V |
8 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Red/Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
MPB02-1C54-R-CAP-BK-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
0 |
|
Datasheet |
MPB02 | Bag | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
B3J-3200SWITCH PUSH SPST-NO 0.05A 24V |
9 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Orange | LED, Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
EP11SD1CQESWITCH PUSH SPST-NO 1A 120V |
0 |
|
Datasheet |
EP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
GB215A2H-AASWITCH PUSH 2XSPST-NO 0.4VA 28V |
22 |
|
Datasheet |
GB2 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO x 2 | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
|
GB215A2H-ACSWITCH PUSH 2XSPST-NO 0.4VA 28V |
22 |
|
Datasheet |
GB2 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO x 2 | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black, Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
