Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6611SWITCH PUSH SPST 10A 125V Electroswitch |
568 |
|
Datasheet |
6611 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 10A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Wire Leads | - | - | - | - |
|
6612SWITCH PUSH SPST 10A 125V Electroswitch |
26 |
|
Datasheet |
6612 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
7084CSWITCH PUSH SPST-NC 15A 125V Electroswitch |
41 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|

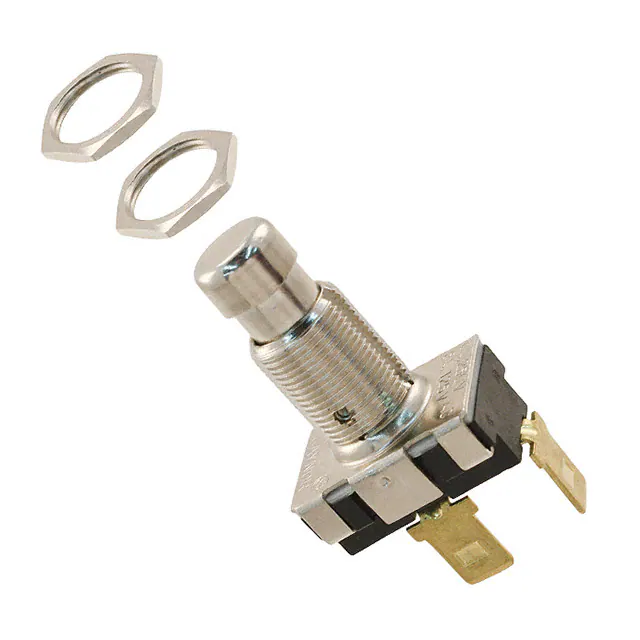

7004CSWITCH PUSH SPST 15A 125V Electroswitch |
36 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|
7004ASWITCH PUSH SPST 15A 125V Electroswitch |
59 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | - |
|
7103DSWITCH PUSHBUTTON SPDT 6A 125V Electroswitch |
36 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | - | - |
|
7074CSWITCH PUSH SPST-NO 15A 125V Electroswitch |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - |
|

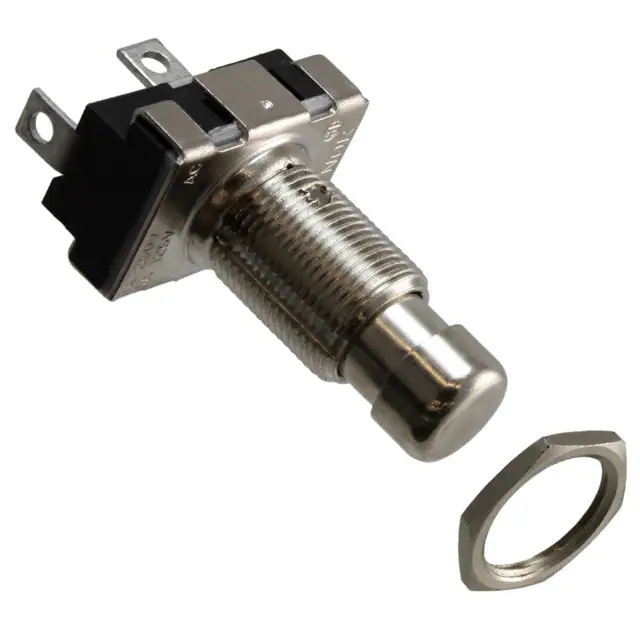

7104DSWITCH PUSHBUTTON SPST 6A 125V Electroswitch |
25 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount, Rear | Standard | SPST | On-Off | 6A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | - | - |
|
PB-12331ZQSWITCH PUSHBUTTON SPDT 6A 125V Electroswitch |
5 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | - | - |
|
|
SA1RV20SWITCH PUSH SPST-NO 0.75A 125V Electroswitch |
0 |
|
Datasheet |
SA | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 750mA (AC), 1.5A (DC) | 125 V | 28 V | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | - | - | -20°C ~ 70°C |
