Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K16-292-B-12VDC16MM SWITCH PUSH RECT DPDT BLUE |
10 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Rectangular, Button | - | Blue | LED, Blue | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-391-Y-24VDC16MM SWITCH PUSH RECT SPDT YLW |
7 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 250 V | 110 V | Rectangular, Button | - | Yellow | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-292-R-6VDC16MM SWITCH PUSH RECT DPDT RED |
6 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Rectangular, Button | - | Red | LED, Red | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
SW19STM312SWITCH PB SOLDER TAG MOM PWR 12V |
18 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 12 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STM132SWITCH PB SOLDER TAG MOM DOT 12V |
18 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 12 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19SSM133SWITCH PB SCREW MOM DOT 24V YELL |
10 |
|
Datasheet |
SW19SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STM315SWITCH PB SOLDER TAG MOM PWR 110 |
10 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|

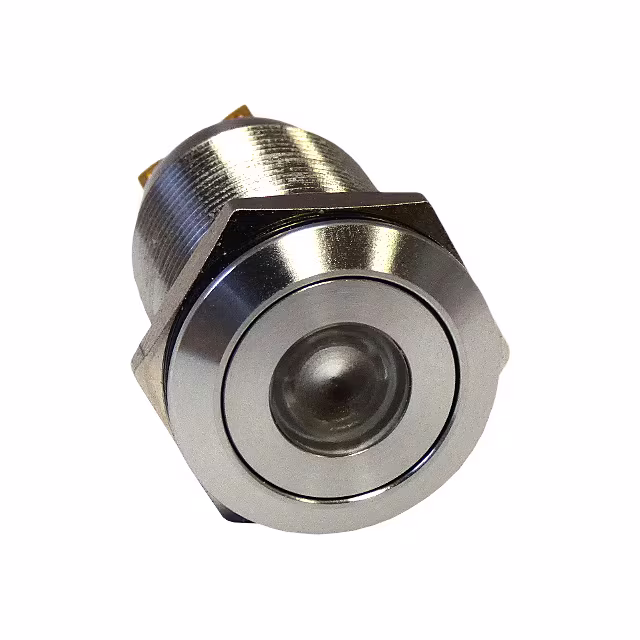

SW19SSM135SWITCH PB SCREW MOM DOT 110V YEL |
10 |
|
Datasheet |
SW19SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 110 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STM125SWITCH PB SOLDER TAG MOM DOT 110 |
10 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19SSM235SWITCH PB SCREW MOM RING 110V YE |
10 |
|
Datasheet |
SW19SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 110 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|

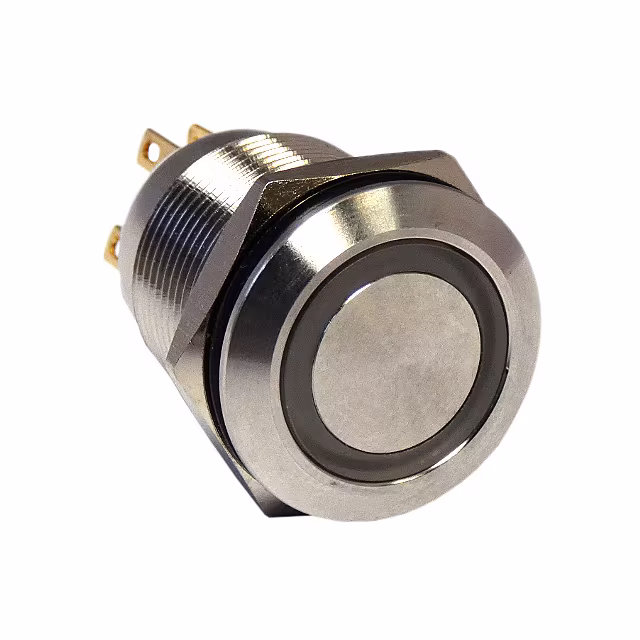

SW19STL223SWITCH PB SOLDER TAG ALT ACT RIN |
10 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|

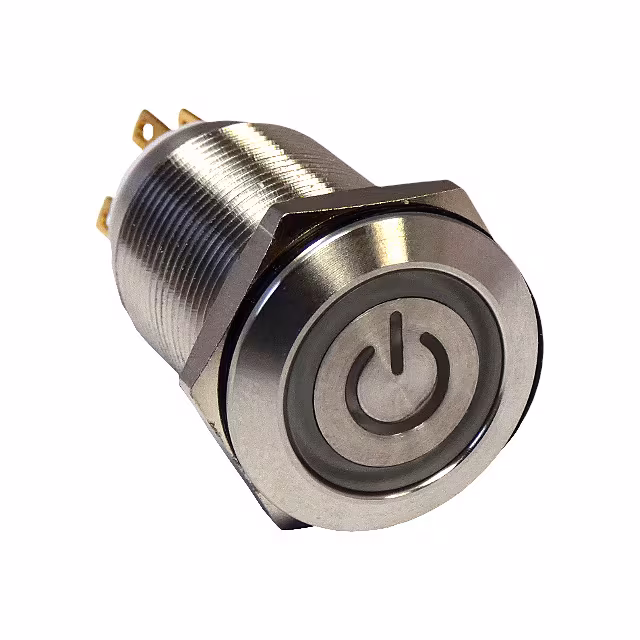

SW19STM332SWITCH PB SOLDER TAG MOM PWR 12V |
10 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Yellow | 12 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|

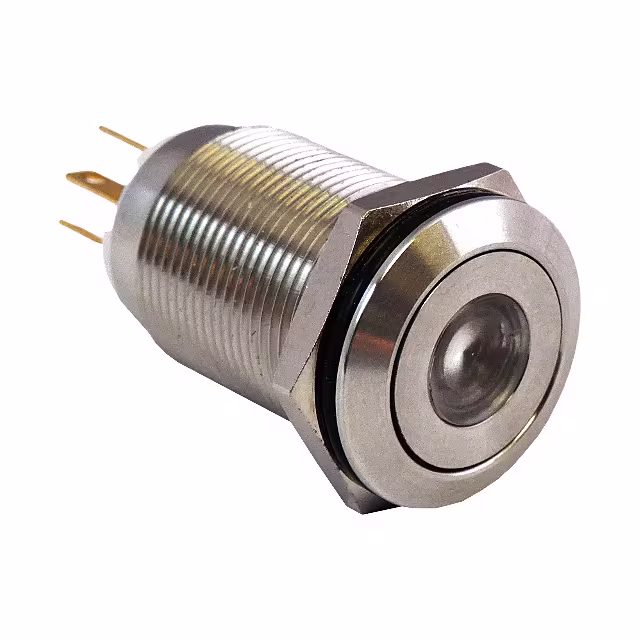

SW19STM135SWITCH PB SOLDER TAG MOM DOT 110 |
10 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Yellow | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|

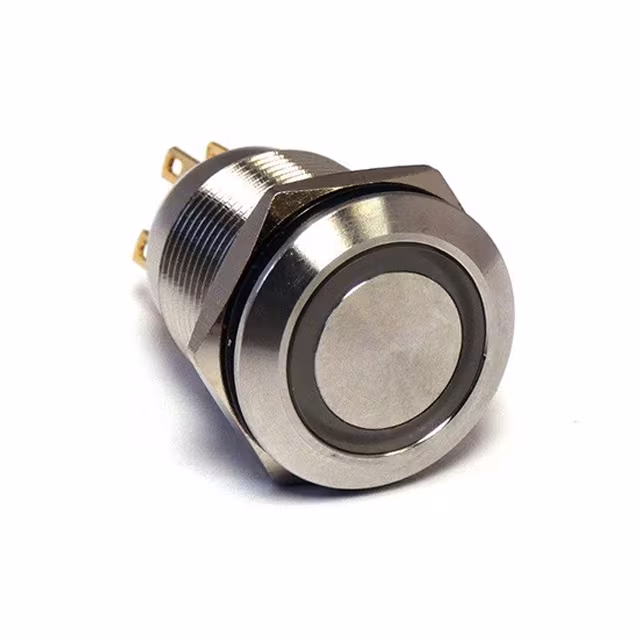

SW19STL255SWITCH PB TAG LAT RING BL 110V |
9 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19SSM125SWITCH PB SCREW MOM DOT 110V GRE |
9 |
|
Datasheet |
SW19SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 110 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|

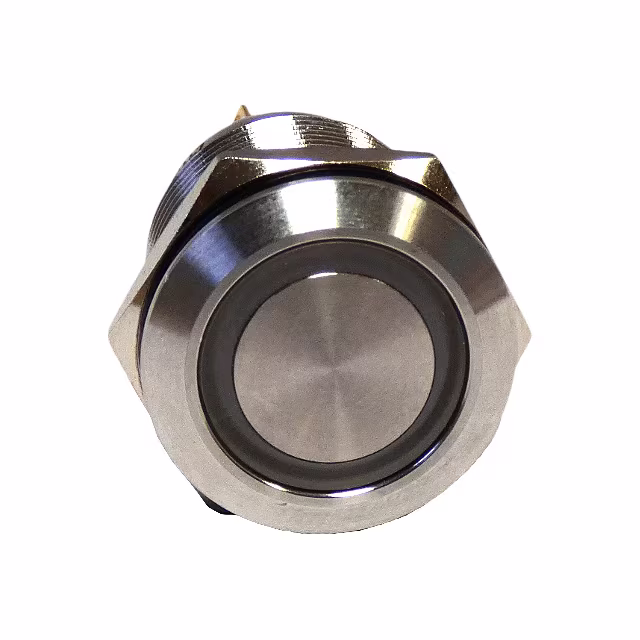

SW19SSM225SWITCH PB SCREW MOM RING 110V GR |
9 |
|
Datasheet |
SW19SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 110 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
|
K16-392-R-24VDC16MM SWITCH PUSH RECT DPDT RED |
57 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 250 V | 110 V | Rectangular, Button | - | Red | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-382-Y-12VDC16MM SWITCH PUSH SQARE DPDT YLW |
40 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 250 V | 110 V | Square, Button | - | Yellow | LED, Yellow | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-382-R-12VDC16MM SWITCH PUSH SQARE DPDT RED |
30 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 250 V | 110 V | Square, Button | - | Red | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-382-G-24VDC16MM SWITCH PUSH SQARE DPDT GRN |
30 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 250 V | 110 V | Square, Button | - | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
