Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YB225CWSPW01SWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB2 | Bulk | Active | Panel Mount, Front | Standard | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Square - 21.00mm x 21.00mm | -25°C ~ 70°C |
|
1241.6622.3120066SWITCH PUSHBUTTON SPDT 5A 250V |
10 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
1241.6622.5120065SWITCH PUSHBUTTON SPDT 5A 250V |
10 |
|
Datasheet |
MSM | Box | Obsolete | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 125 V | - | Round, Button, Flush | No Marking | Green | - | - | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 19.10mm Dia | -25°C ~ 85°C |
|
3-102-632MSM MECHANICAL METAL LINE SWITCH |
51 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|
3-102-630MSM MECHANICAL METAL LINE SWITCH |
50 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|

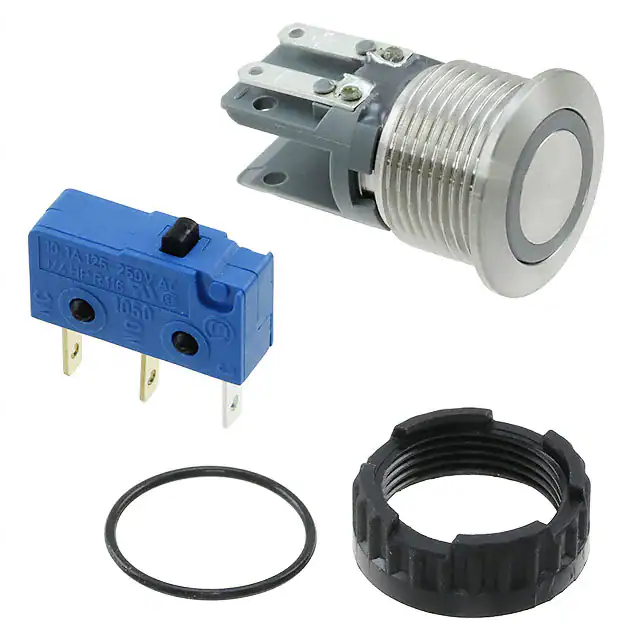

3-102-620SWITCH PUSHBUTTON SPDT 10A 250V |
36 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|
3-102-627MSM MECHANICAL METAL LINE SWITCH |
21 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | LED, Yellow | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|
|
3-102-626SWITCH PUSHBUTTON SPDT 10A 250V |
20 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 10A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|
3-102-624MSM MECHANICAL METAL LINE SWITCH |
19 |
|
Datasheet |
MSM | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.10mm Dia | -25°C ~ 85°C |
|
|
UB15NBKG016GLOW PROFILE PUSHBUTTON/ILLUMINAT |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | - | LED, Blue | 2.9 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
YB26WCKW01-5F12-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
YB26WCKW01-5F12-JFSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|

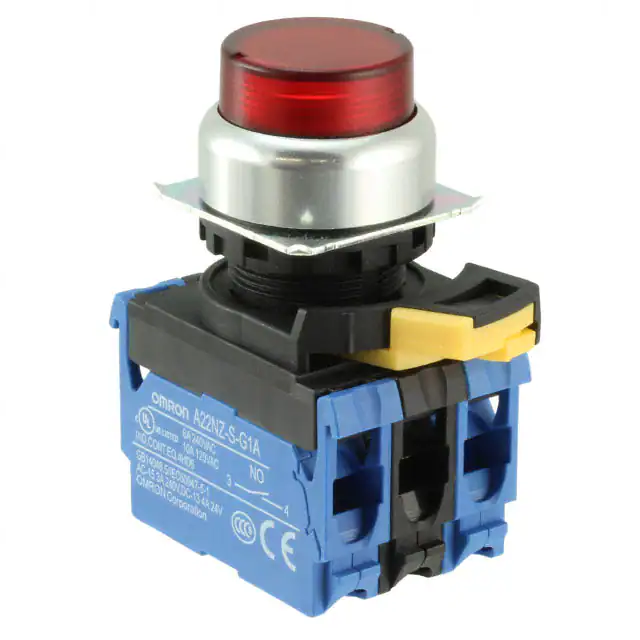

A22NL-RPM-TRA-G101-RDSWITCH PUSH DPST-NO 10A 120V |
6 |
|
Datasheet |
A22NL | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 100 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 55°C |
|
|
YB26WCKW01-5D12-JBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
UB226KKW016DG-5JDG11LOW PROFILE PUSHBUTTON |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button, Alternating Legend | - | Clear | LED, Amber/Blue | 2VDC, 2.8VDC | Solder Lug | - | - | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
LB26WGW01-6G-JBSTD SIZE PUSHBUTTON/ILLUMINATED/ |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

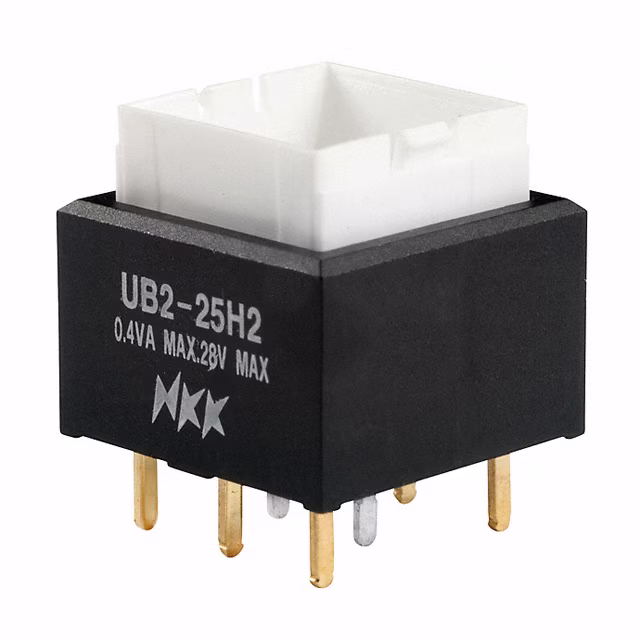

UB225SKG036G-1JBSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 2.9 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
3-101-405SWITCH PUSHBUTTON SPST 100MA 42V |
11 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-On | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Finger Guide | Circular - 22.10mm Dia | -40°C ~ 60°C |
|
|
LB15WKG01-5F12-JFSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB15WKG01-5D05-JDSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
