Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W57M-E12BSWITCH PUSHBUTTON 10MA 12V |
219 |
|
Datasheet |
W57M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO (DM) | Off-Mom | 10mA (DC) | - | 12 V | Round, Button, Flush | - | Silver | LED, Blue | 3.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.15mm Dia | -40°C ~ 85°C |
|
ULV4F2BSLL15L35SWITCH PUSHBUTTON SPDT 3A 125V |
172 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

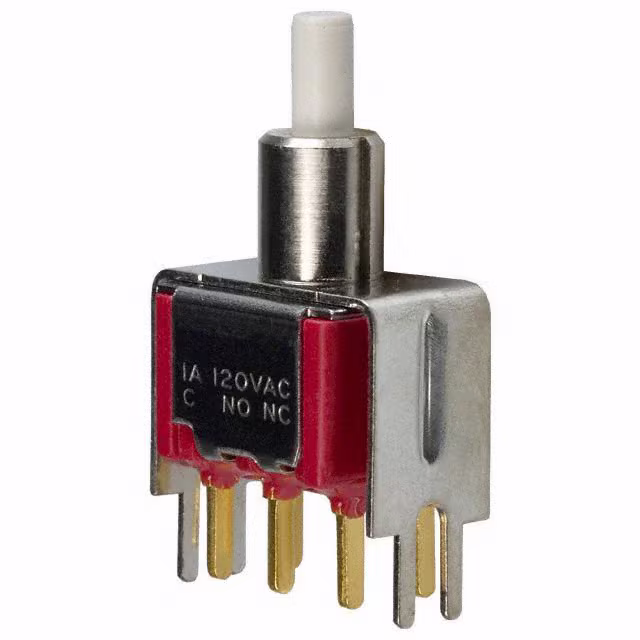

8121SD9V3GESWITCH PUSHBUTTON SPDT 1A 120V |
157 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
PV4H2B0SSSWITCH PB SPDT 2A 24V |
118 |
|
Datasheet |
PV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 2A (DC) | - | 24 V | Round, Button | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
AP4E202TZBESWITCH PUSH SPST-NO 0.125A 125V |
540 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | LED, Green/Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
|
8436ASWITCH PUSHBUTTON SPDT 6A 125V |
181 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
UB16SKG035F-JFSWITCH PUSHBUTTON SPDT 0.4VA 28V |
24 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
39-351 REDSWITCH PUSH SPST-NO 0.5A 115V |
133 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | Sealed - Fully | Circular - 4.37mm Dia | -40°C ~ 85°C |
|

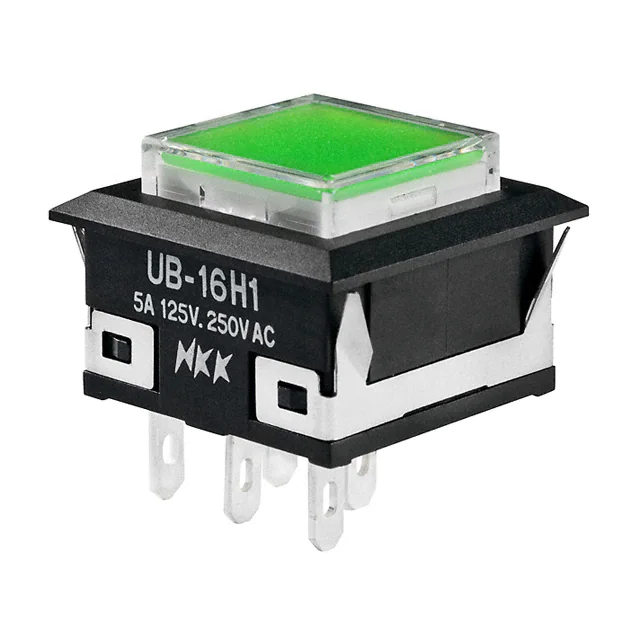

UB16KKW015F-JFSWITCH PUSHBUTTON SPDT 5A 125V |
2 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB16NKW015FSWITCH PUSHBUTTON SPDT 5A 125V |
21 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Process Sealed | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
UB16SKW035C-CCSWITCH PUSHBUTTON SPDT 5A 125V |
142 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

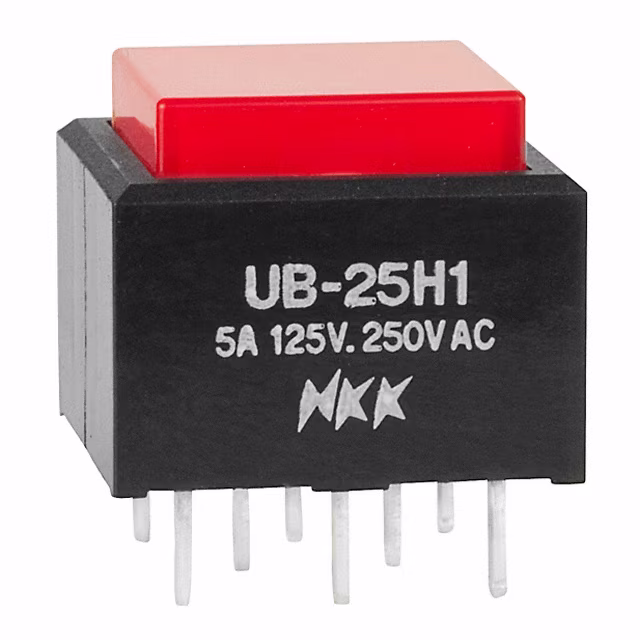

UB25SKW035C-CBSWITCH PUSHBUTTON DPDT 5A 125V |
168 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
UB25SKW035C-JBSWITCH PUSHBUTTON DPDT 5A 125V |
162 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
|
PV6F240SS-331-M15SWITCH PB SPST-NO 2A 48V |
149 |
|
Datasheet |
PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | Power Symbol | Silver | LED, Green | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

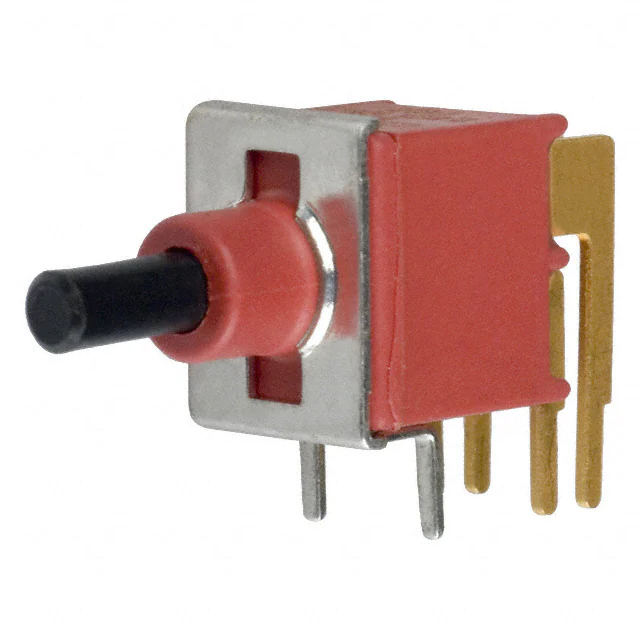

EP21SD1ABESWITCH PUSH DPST-NO 0.4VA 20V |
258 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
EB2011P-B-J23AFFSWITCH PUSHBUTTON SPDT 3A 125V |
199 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | LED, Green/Green | 2.25 VDC | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|

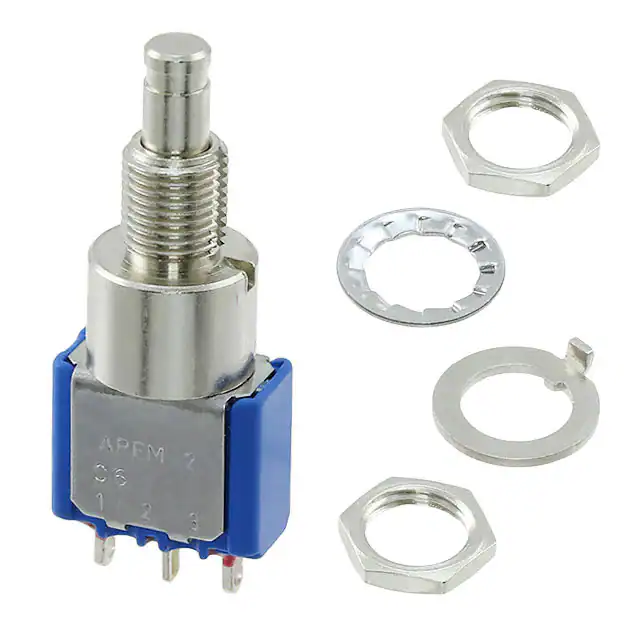

8632ABSWITCH PUSHBUTTON SPDT 6A 125V |
980 |
|
Datasheet |
8000 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -40°C ~ 85°C |
|
|
EB2061-B-J33ACFSWITCH PUSHBUTTON DPDT 3A 125V |
198 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
AV2211EA12Q04SWITCH PUSHBUTTON SPDT 3A 250V |
118 |
|
Datasheet |
AV22 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
UB16NBKG015FSWITCH PUSH SPDT 0.4VA 28V |
11 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
