Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8261J81ZQE22SWITCH PUSHBUTTON DPDT 6A 120V |
6 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
MB2461E1G03-FASWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
XB6ECW8B1PILLUMINATED MONOLITHIC PUSH BUTT |
45 |
|
Datasheet |
Harmony XB6E | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1.5A (AC), 1A (DC) | 120 V | 24 V | Square, Button | - | Orange | LED, Orange | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
UB226KKG015DSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
UB226KKG015CSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
8261J82ZQE22SWITCH PUSHBUTTON DPDT 6A 120V |
11 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Snap-In | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
YB26KKW01/CULDPDT ON-ON SQUARE SNAP-IN MOUNT |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
UB25NBKG015F-ABSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black (White Window) | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|

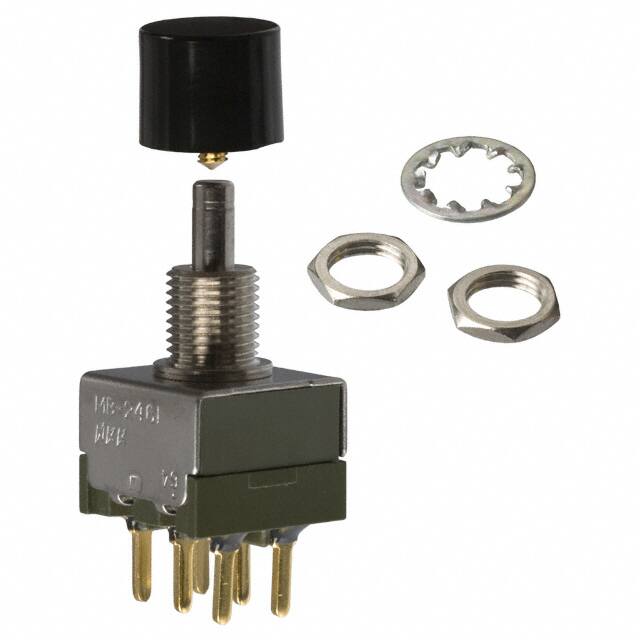

MB2461E1G03-HASWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2461E1G03-HBSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2461E1G03-HCSWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB226SKW035C-1JCSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
LB15CKW01-5D-JBSTD SIZE PUSHBUTTON/ILLUMINATED/ |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
UB226SKW035D-1JBSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Tray | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Amber | 2 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
UB226SKW035F-3JFSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | LED, Green | 2.1 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
UB226SKW035C-1JBSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
YB16WCKW01-GBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
YB16WSKW01-EBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
YB16WCKW01-CBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
YB16WCKW01-BBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
