Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2411JW01-A-4A-EFMINIATURE PUSHBUTTON/MOMENTARY |
0 |
|
- |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Green/Yellow | 2.0, 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -30°C ~ 85°C |
|
|
1-1825042-0SWITCH PUSHBUTTON 3PDT 6A 125V |
0 |
|
Datasheet |
MPG | Bulk | Obsolete | Panel Mount, Rear | Standard | 3PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 11.80mm Dia | -20°C ~ 80°C |
|

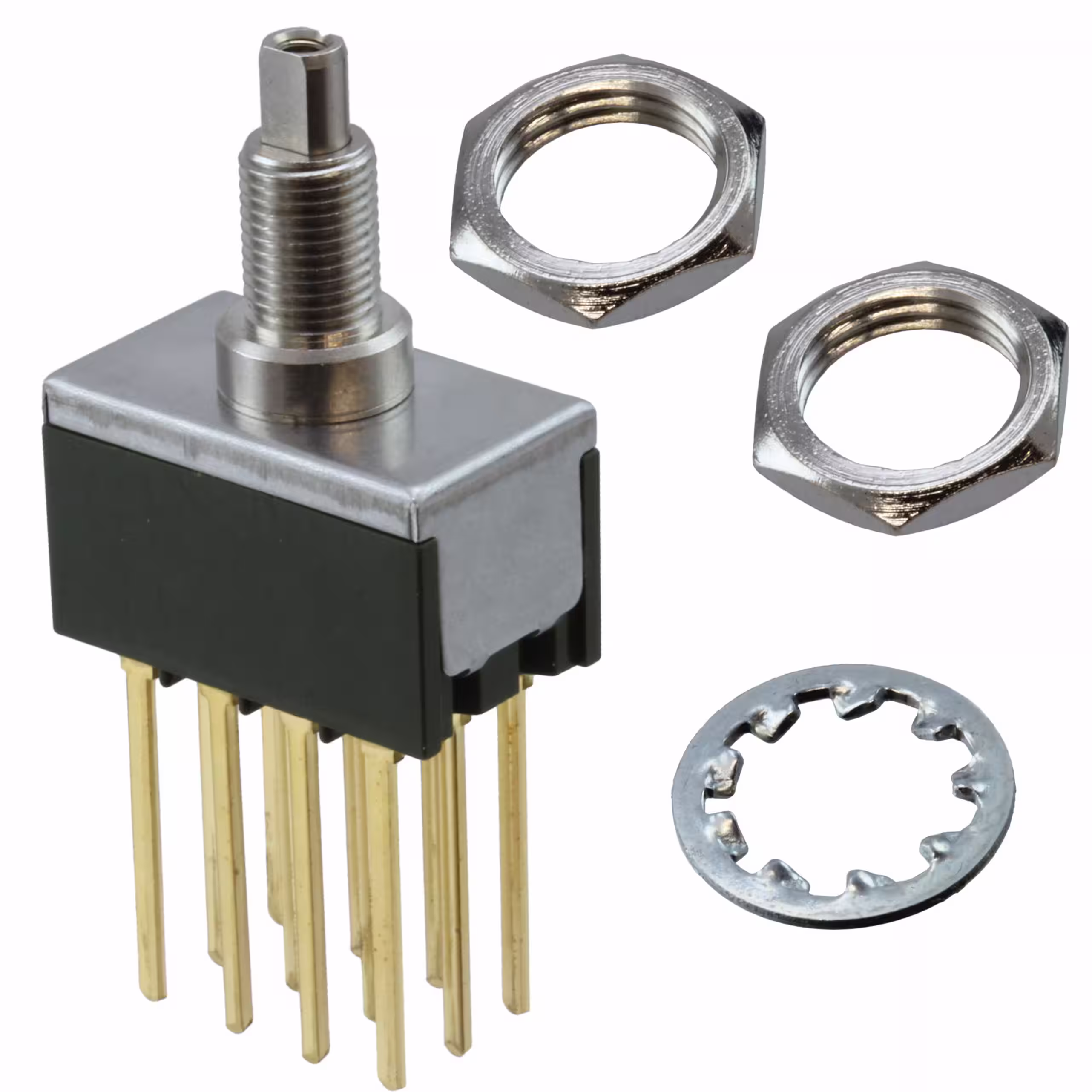

MB2185SS1G06SWITCH PUSHBUTTON 4PDT 0.4VA 28V |
8 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Wire Wrap | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
AV2210E712R04SWITCH PUSHBUTTON SPDT 0.4VA 20V |
0 |
|
Datasheet |
AV22 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
LB15CGW01-5C-JCSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.9 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
SW30SSL255SWITCH PB SCR LAT RING BL 110V |
21 |
|
Datasheet |
SW30SS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 110 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -40°C ~ 80°C |
|
TP21SHZGESWITCH PUSH DPST-NO 1A 120V |
48 |
|
Datasheet |
TP | Tray | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
XB6EDF4B1PILLUMINATED MONOLITHIC PUSH BUTT |
48 |
|
Datasheet |
Harmony XB6E | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | - | - | - | Rectangular, Button, Flush | - | Red | LED, Red | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

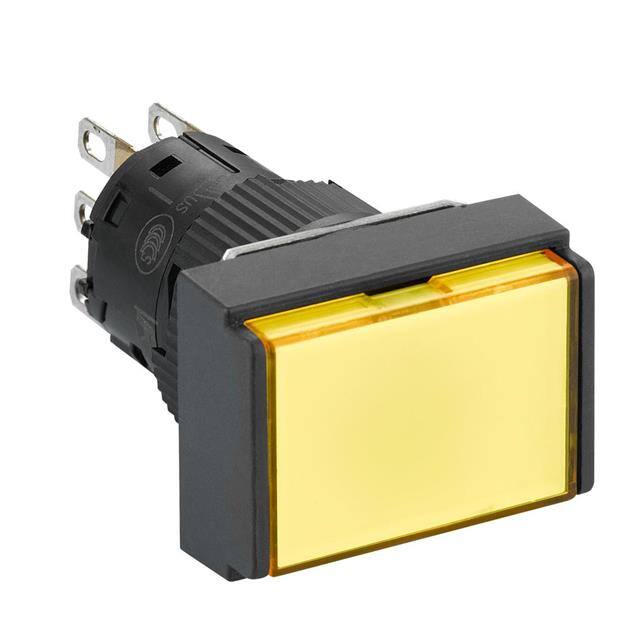

XB6EDF5B1PILLUMINATED MONOLITHIC PUSH BUTT |
40 |
|
Datasheet |
Harmony XB6E | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | - | - | - | Rectangular, Button, Flush | - | Yellow | LED, Yellow | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
MB2065SS2G30-BHSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
MB2065SB3W01-BCSWITCH PUSHBUTTON SPDT 6A 125V |
11 |
|
Datasheet |
MB2000 | Box | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2065SB3W01-BGSWITCH PUSHBUTTON SPDT 6A 125V |
11 |
|
Datasheet |
MB2000 | Box | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
YB25NKG01SWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
LB16SKG01-CSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
LB15RKW01-5D-JDSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
YB25KKG01SWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
PVA3H230SS311SWITCH PB SPST 2A 36V |
40 |
|
Datasheet |
PVA3 | Bulk | Obsolete | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 36 V | Round, Button | No Marking | Silver | LED, Red | 1.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
YB16MKW01-BBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
YB16KKW01-EBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
YB16MKW01-GBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Blue (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
