Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB26KKW015C-JJSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB26KKW015C-JCSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB26KKW015C-CBSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

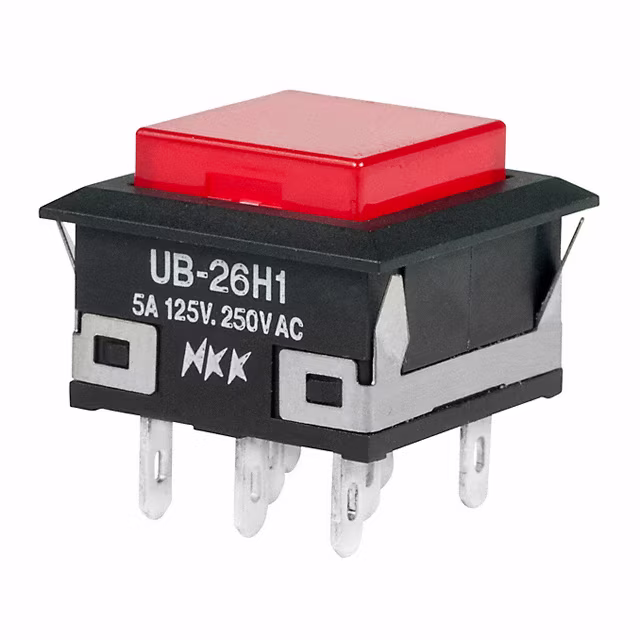

UB26KKW015C-CJSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB26KKW015C-JBSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
MB2011SB1W03-ECSWITCH PUSHBUTTON SPDT 6A 125V |
65 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2065SB1W03-DASWITCH PUSHBUTTON SPDT 6A 125V |
37 |
|
Datasheet |
MB2000 | Box | Obsolete | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2411E1G40-HASWITCH PUSHBUTTON SPDT 0.4VA 28V |
23 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB15NBKW015F-JJSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear | LED, Green | 2.1 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
SAV4F13SS346SWITCH PB SPDT 15A 125V |
17 |
|
Datasheet |
SAV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 15A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 110 VAC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.20mm Dia | -25°C ~ 85°C |
|
|
MB2011SB3W01-ECSWITCH PUSHBUTTON SPDT 6A 125V |
2 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
MB2461S1W01-FASWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
AP2E300TZBESWITCH PUSH SPST-NO 0.125A 125V |
41 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
|
LB15SKW01-JFSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|
|
LP0115CMKW015DB/CULSHORT BODY PUSHBUTTON |
0 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | - | White | LED, Amber | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -10°C ~ 50°C |
|
|
LP0115CMKW015CB/CULSHORT BODY PUSHBUTTON |
0 |
|
Datasheet |
LP01 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | - | White | LED, Red | 1.95 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 17.30mm Dia | -10°C ~ 50°C |
|
|
LB15CKW01-EJSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
EB2085-A-J22ACSWITCH PUSHBUTTON DPDT 3A 125V |
2 |
|
Datasheet |
EB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | LED, Red | 2.8 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
MB2461S1W01-HBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
A22NN-RPM-NGA-G102-NNSWITCH PUSH DPST-NO/NC 10A 120V |
19 |
|
Datasheet |
A22NN | Bulk | Obsolete | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 120 V | 24 V | Round, Button | No Marking | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
