Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB16RKW035C-JBSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 1.85 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
LB15RKW01-ESWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
UB25KKW015F-JJSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear | LED, Green | 2.1 VDC | Solder Lug | - | Spot LED | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
UB16NBKG015DSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
46-111 BLKSWITCH PUSH SPDT 0.25A 115V |
0 |
|
Datasheet |
46 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
|
1213MRC+U1874SWITCH PUSH SPST-NO 3A 125V |
0 |
|
Datasheet |
1200MR | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger, Metal | No Marking | Silver | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
|
EB2011G-A-J23ACFSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
PNP8S3T2W03QESWITCH PUSHBUTTON SPST-NC 5A 32V |
78 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

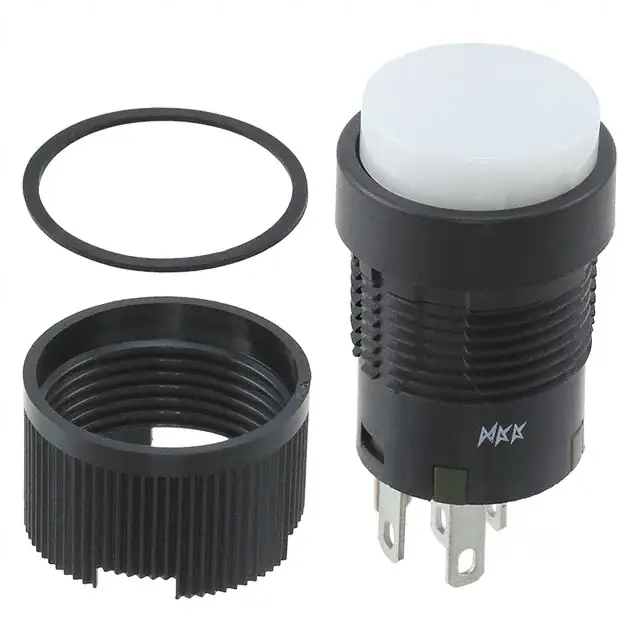

YB15WCKW01-28-BBSWITCH PUSHBUTTON SPDT 3A 125V |
46 |
|
Datasheet |
YB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White (White Filter/Diffuser) | Incandescent, White | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
MB2461E1G01-HCSWITCH PUSHBUTTON DPDT 0.4VA 28V |
2 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
KB16SKG01SWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|

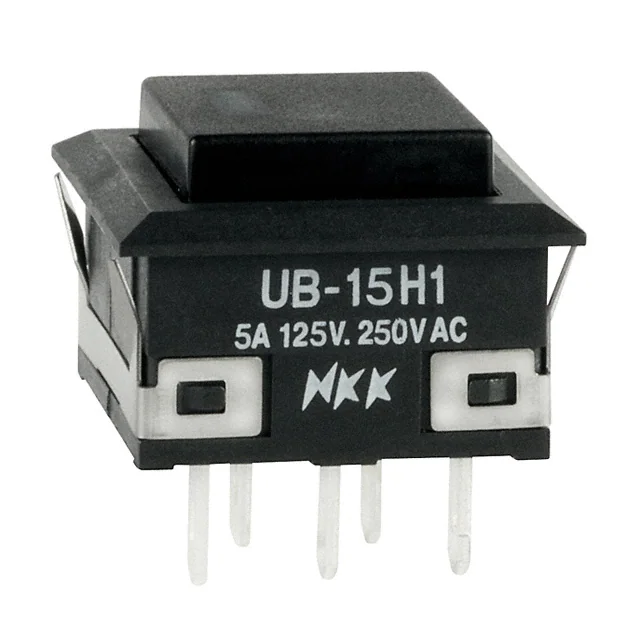

UB15KKW015C-ABSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Red | 1.85 VDC | Solder Lug | - | Overtravel, Tactile Feedback | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16RKW01/CULSTD SIZE PUSHBUTTON/ILLUMINATED/ |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
LB16CGW01SWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
LB15RGW01-BSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 70°C |
|
|
UB26KKG01N-ASWITCH PUSHBUTTON DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
HB15SKW01-5C-JBSWITCH PUSH SPDT 0.1A 30V |
0 |
|
Datasheet |
HB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|

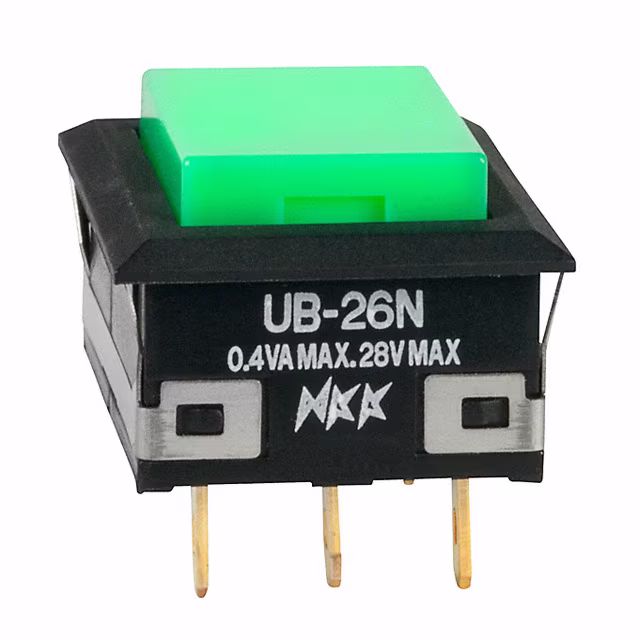

UB26NKG01N-FSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Green | - | - | Solder Lug | - | Stainless Steel | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
HB16SKW01-5D-DBSWITCH PUSH SPDT 0.1A 30V |
0 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Square, Button | No Marking | Amber | LED, Amber | 2.05 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
|
UB26KKG01N-GSWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Blue | - | - | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
