Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2411JW01-B-1BSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|

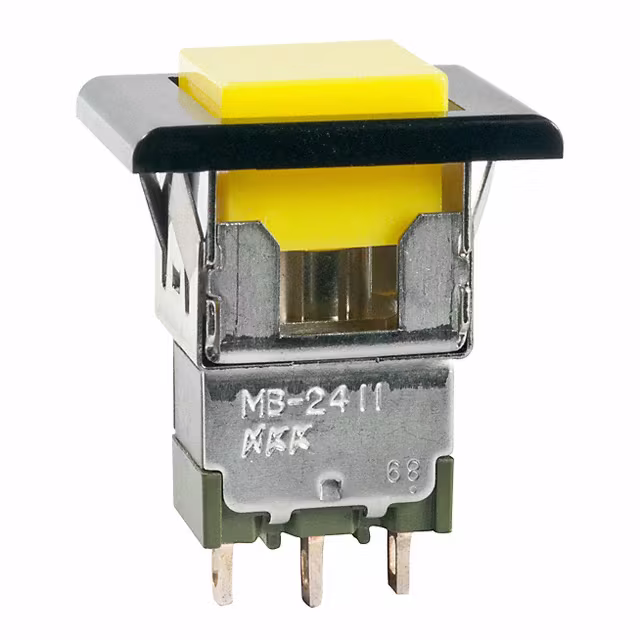

MB2411JW01-E-1ASWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Yellow | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
|
MB2411JW01-G-1GSWITCH PUSHBUTTON SPDT 3A 125V |
26 |
|
Datasheet |
MB2400 | Box | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Blue | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
|
MB2411A2W30-HCSWITCH PUSHBUTTON SPDT 3A 125V |
14 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

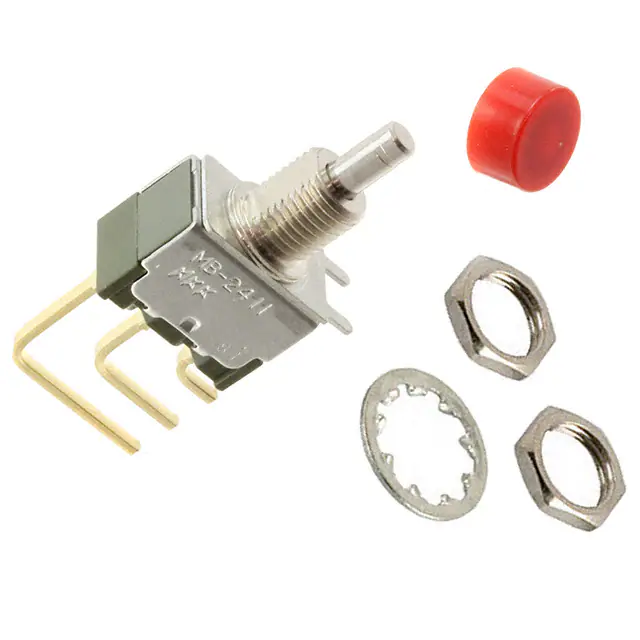

MB2411E1G40-HCSWITCH PUSH SPDT 0.4VA 28V |
17 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
8161J81ZGE22SWITCH PUSHBUTTON SPDT 6A 120V |
81 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
|
HB15CKW01-EMINIATURE PUSHBUTTON/ILLUMINATED |
0 |
|
Datasheet |
HB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 100mA (DC) | 30 V | 30 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|
|
MB2411A1G30-HCSWITCH PUSHBUTTON SPDT 0.4VA 28V |
2 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
UB216KKG01N-5CSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | - | - | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
HB16CKW01-ESWITCH PUSH SPDT 0.1A 30V |
0 |
|
Datasheet |
HB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 70°C |
|

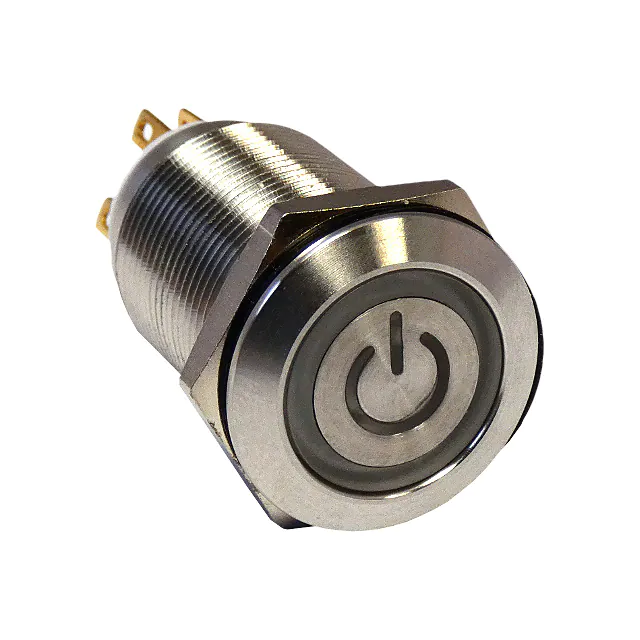

SW19STL325SWITCH PB SOLDER TAG ALT ACT PWR |
30 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STL313SWITCH PB SOLDER TAG ALT ACT PWR |
20 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 24 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|

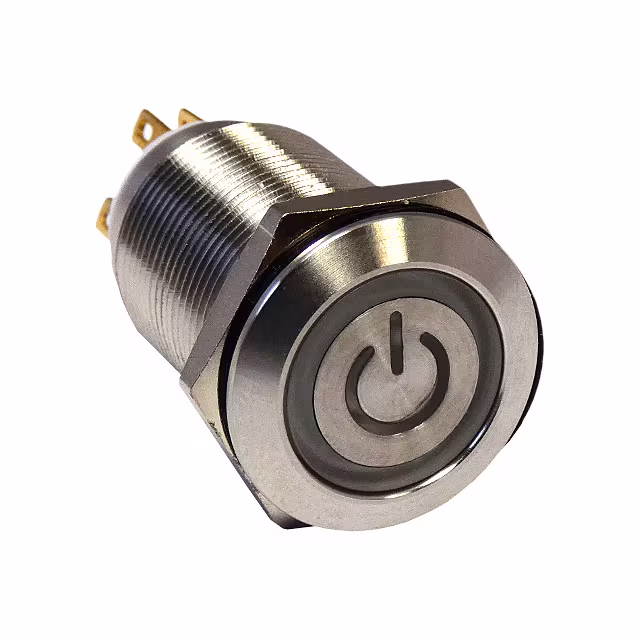

SW19STL335SWITCH PB SOLDER TAG ALT ACT PWR |
12 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Yellow | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STL315SWITCH PB SOLDER TAG ALT ACT PWR |
12 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Red | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|
SW19STM325SWITCH PB SOLDER TAG MOM PWR 110 |
11 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 110 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|

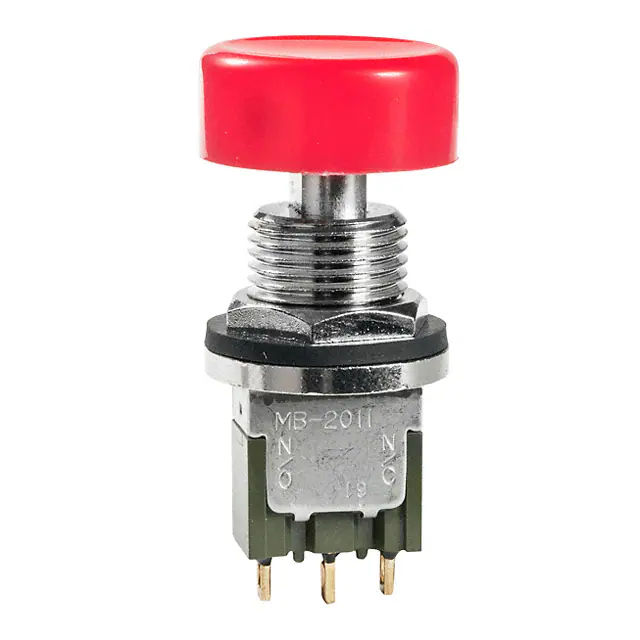

MB2011SB3G01-ECSWITCH PUSH SPDT 0.4VA 28V |
9 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
SW19STL323SWITCH PB SOLDER TAG ALT ACT PWR |
7 |
|
Datasheet |
SW19ST | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 5A (AC) | 250 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Green | 24 VAC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -40°C ~ 80°C |
|

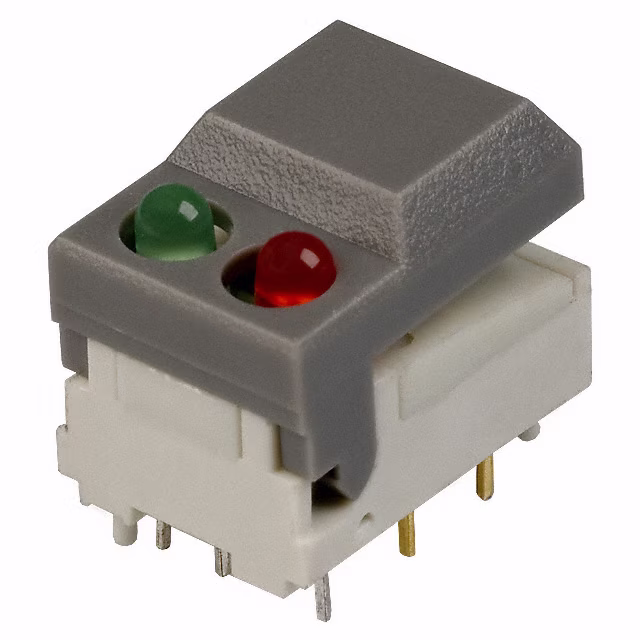

SER2LGYRDGNAUEESWITCH PUSH SPDT 0.01A 24V |
0 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Gray | LED, Green/Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
|
9432YCDBSWITCH PUSH SPST-NC 0.1A 30V |
0 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
|
MB2511S2G30-BASPDT ON-(ON) .3" SMOOTH BUSHING |
0 |
|
Datasheet |
MB2500 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
