Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MB2521S4G01SWITCH PUSHBUTTON DPDT 0.4VA 28V |
2 |
|
Datasheet |
MB2500 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2411JG01-HSWITCH PUSH SPDT 0.4VA 28V |
30 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Gray | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
HB215SKG03CE-JBSWITCH PUSH SPST-NO 0.4VA 28V |
99 |
|
Datasheet |
HB2 | Tray | Last Time Buy | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Red/Yellow | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 50°C |
|
|
UB215SKW03N-5FSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB215SKW03N-5BSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB215SKW03N-5CSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
UB215KKW01N-4JCSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | - | - | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB215KKW01N-4JBSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | - | - | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB215KKW01N-4JFSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB16KKG01NSWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|

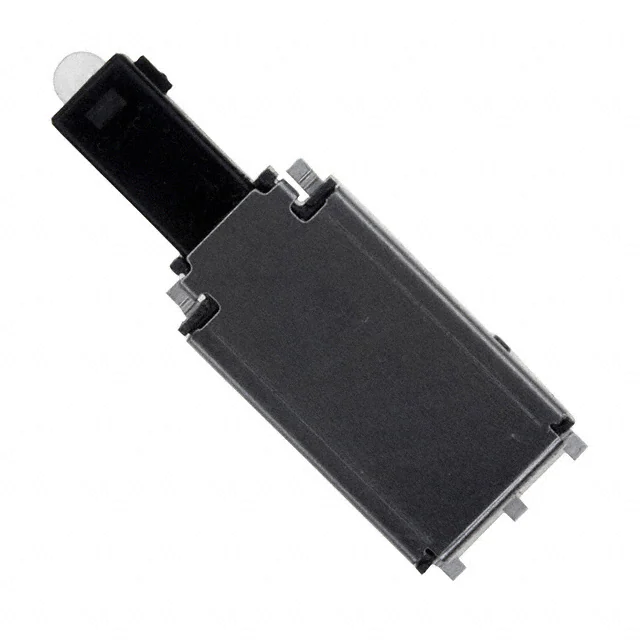

ELUMOASAQ7C22SWITCH PUSH SPDT 0.25A 50V |
6 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Blue | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
MB2061LD1G01/328SWITCH PUSH DPDT 0.4VA 28V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Low Temperature Lubricant | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
M2B15BA5G40-FASWITCH PUSHBUTTON SPDT 0.4VA 28V |
0 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
8225SD8ABESWITCH PUSH DPDT 0.4VA 20V |
21 |
|
Datasheet |
8020 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
MB2065SS2A30-CAMINIATURE PUSHBUTTON/MULTI-FUNCT |
2 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
M2B25AA5W13-HASWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
M2 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
M2B25AA5W13-HCSWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
UB16NBKW01N-FSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
UB16NBKW01N-GSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Blue | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
|
UB16NBKW01N-ASWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Black | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
