Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4843A02SWITCH PUSH DPST-NO 6A 125V |
0 |
|
Datasheet |
4800 | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
KB25RKW01SWITCH PUSHBUTTON DPDT 1A 125V |
7 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
MB2411JW01-B-1ASWITCH PUSHBUTTON SPDT 3A 125V |
44 |
|
Datasheet |
MB2400 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -30°C ~ 85°C |
|
8161SHABE2SWITCH PUSH SPDT 0.4VA 20V |
33 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
SB4011NOM-2ESWITCH PUSH SPST-NO 3A 125V |
0 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
SB4011NOM-2BSWITCH PUSH SPST-NO 3A 125V |
0 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
SB4011NOM-2FSWITCH PUSH SPST-NO 3A 125V |
0 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
MB2011LD3W01-BASWITCH PUSHBUTTON SPDT 6A 125V |
2 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2011SS1W02SWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MP1-30W-ABBGPushbutton Operator, Mom, Wht, F |
7 |
|
Datasheet |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

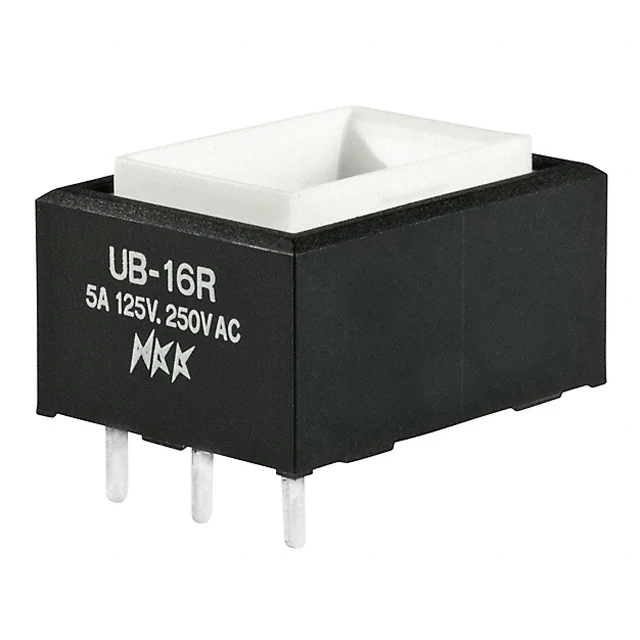

UB16RKW03NSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
K16-281-W-24VDC16MM SWITCH PUSH SQR SPDT WHITE |
53 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Square, Button | - | White | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-291-W-24VDC16MM SWITCH PUSH RECT SPDT WHITE |
51 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Rectangular, Button | - | White | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-271-G-6VDC16MM SWITCH PUSH RND SPDT GRN |
45 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Round, Button | - | Green | LED, Green | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-291-G-6VDC16MM SWITCH PUSH RECT SPDT GREEN |
43 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Rectangular, Button | - | Green | LED, Green | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-271-W-24VDC16MM SWITCH PUSH RND SPDT WHITE |
42 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Round, Button | - | White | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-281-G-24VDC16MM SWITCH PUSH SQARE SPDT GRN |
40 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Square, Button | - | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
K16-281-W-12VDC16MM SWITCH PUSH SQR SPDT WHITE |
38 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Square, Button | - | White | LED, White | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
K16-271-W-12VDC16MM SWITCH PUSH RND SPDT WHITE |
36 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Round, Button | - | White | LED, White | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
K16-291-R-24VDC16MM SWITCH PUSH RECT SPDT RED |
36 |
|
Datasheet |
K16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 110 V | Rectangular, Button | - | Red | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
