Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UB26SKG036GSWITCH PUSH DPDT 0.4VA 28V |
10 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Blue | 2.9 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
1222MRASWITCH PUSH SPST-NC 8A 125V |
39 |
|
Datasheet |
1200MR | Bulk | Active | Panel Mount, Rear | Standard (Footswitch) | SPST-NC | On-Mom | 8A (AC), 4A (DC) | 125 V | 24 V | Round, Plunger, Metal | No Marking | Silver | - | - | Screw Terminal | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
MS-105SWITCH - JUNCTION |
18 |
|
Datasheet |
- | Bulk | Active | Free Hanging | Standard | - | - | - | - | - | Round, Plunger | No Marking | Silver | - | - | Screw Terminal | - | - | - | - |
|
AML21EBA2BASWITCH PUSHBUTTON SPDT 0.1A 125V |
26 |
|
Datasheet |
AML21 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
MC19MOBGRSW CAPACITIVE SPST-NO 10MA 12V |
57 |
|
Datasheet |
MC | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST-NO | Off-Mom | 500mA (DC) | - | 12 V | Round, Button, Flush | No Marking | Black | LED, Green/Red | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.20mm Dia | -25°C ~ 55°C |
|

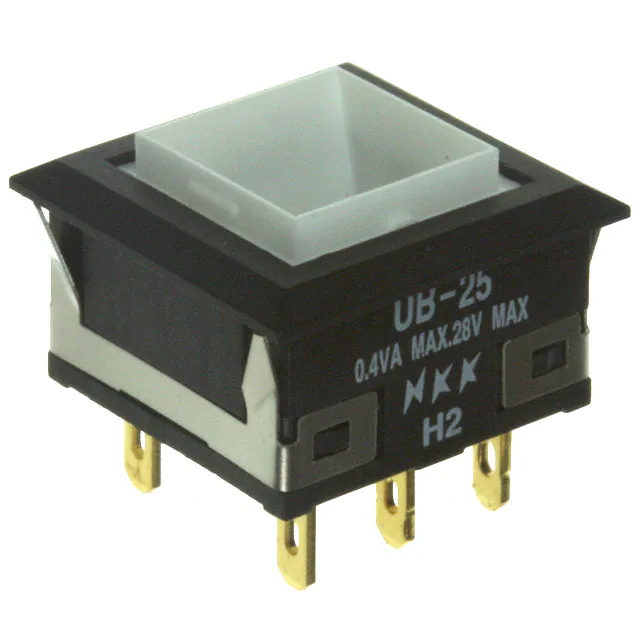

UB25KKG016BSWITCH PUSH DPDT 0.4VA 28V |
20 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, White | 2.9 VDC | Solder Lug | - | Sealed - Fully, Stackable | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
SW-PB7-03LB5CFRB12VANTI-VANDAL PUSHBUTTON SWITCH, 2 |
60 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | LED, Blue | 12 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 55°C |
|
SW-PB7-03LB5CFRG12VANTI-VANDAL PUSHBUTTON SWITCH, 2 |
60 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | LED, Green | 12 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 55°C |
|
SW-PB7-03LB5CFRR12VANTI-VANDAL PUSHBUTTON SWITCH, 2 |
60 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | LED, Red | 12 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 55°C |
|
SW-PB7-03LB5CFRW12VANTI-VANDAL PUSHBUTTON SWITCH, 2 |
44 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | - | - | - | Round, Button | No Marking | Silver | LED, White | 12 VAC/DC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | - | -25°C ~ 55°C |
|
|
MP0045/1D1GN012SWITCH PUSHBUTTON DPDT 3A 250V |
50 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 12 VDC | Solder Lug | - | Stainless Steel | Circular - 16.20mm Dia | -20°C ~ 55°C |
|
PV4F230SS-331SWITCH PUSHBUTTON SPDT 2A 24V |
39 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
3-101-421SWITCH PUSHBUTTON SPST 100MA 42V |
35 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-On | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.10mm Dia | -40°C ~ 60°C |
|
PV4F230SS-315SWITCH PUSHBUTTON SPDT 2A 24V |
31 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
LASEEV31KGRNGRNSWITCH PUSHBUTTON SPDT 8A 125V |
20 |
|
Datasheet |
LA | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Green | LED, Green | 24 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 25.50mm Dia | -20°C ~ 55°C |
|

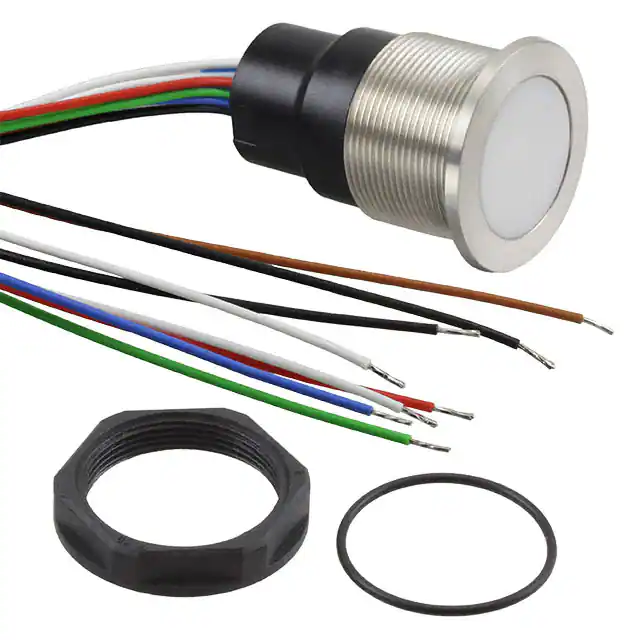

3-101-415SWITCH PUSHBUTTON SPST 100MA 42V |
17 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-On | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Ceramic Actuator | Circular - 19.10mm Dia | -40°C ~ 60°C |
|
|
IPC3SAD5L0YSWITCH PUSH SPST-NO 0.5A 48V |
50 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 500mA (AC), 200mA (DC) | 48 V | 48 V | Square, Button | No Marking | Yellow | LED, Yellow | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Tactile Feedback | Circular - 13.60mm Dia | -40°C ~ 125°C |
|
|
LB16RKW01-5F05-JBSWITCH PUSHBUTTON SPDT 3A 125V |
12 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 5 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
YB16WSKW01-2CF12-JBSWITCH PUSHBUTTON SPDT 3A 125V |
12 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
3-101-394SWITCH PUSHBUTTON SPST 100MA 42V |
13 |
|
Datasheet |
CPS | Bulk | Active | Panel Mount, Front | Capacitive, Illuminated | SPST | Off-On | 100mA (AC/DC) | 42 V | 60 V | Round, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Green/Red | 5 ~ 28 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Ceramic Actuator | Circular - 16.10mm Dia | -40°C ~ 60°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
