Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AV1911EB12Q04SWITCH PUSHBUTTON SPDT 3A 250V |
40 |
|
Datasheet |
AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|

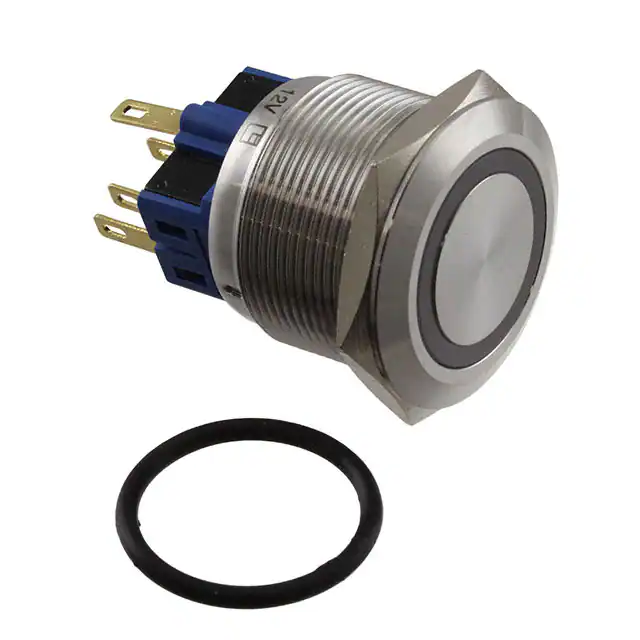

PV8F2Y0SS-314SWITCH PUSHBUTTON DPST 2A 36V |
16 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Red | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
AH1LBSO12SWITCH PB DPST-NO/NC 1A 125V |
17 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Silver | LED, Orange | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
AV2221E712Q04SWITCH PUSHBUTTON DPDT 3A 250V |
97 |
|
Datasheet |
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV2220E124Q04SWITCH PUSHBUTTON DPDT 3A 250V |
85 |
|
Datasheet |
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV2220E112Q04SWITCH PUSHBUTTON DPDT 3A 250V |
68 |
|
Datasheet |
AV22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, White | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
PV4F230SS-305SWITCH PUSHBUTTON SPDT 2A 24V |
6 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
PV4F2Y011-301SWITCH PUSHBUTTON DPST 2A 24V |
39 |
|
Datasheet |
PV4, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 2A (DC) | - | 24 V | Round, Button, Flush | No Marking | Black | LED, White | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
YB16WSKW01-5F-JBSWITCH PUSHBUTTON SPDT 3A 125V |
31 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
|
UB216SKW036CF-3JBSWITCH PUSHBUTTON SPDT 5A 125V |
22 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
YB15CKG01-2CF02-JBSWITCH PUSHBUTTON SPDT 0.4VA 28V |
17 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
AH1NBSRNSWITCH PB DPST-NO/NC 1A 125V |
40 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBBBNSWITCH PB DPST-NO/NC 1A 125V |
40 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Blue | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
AH1NBBR24SWITCH PB DPST-NO/NC 1A 125V |
16 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | - | Black | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel 316 | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
DH251LBBGNSWITCH PB DPST-NO/NC 2A 125V |
18 |
|
Datasheet |
DH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Off, Off-On | 2A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Black | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -25°C ~ 70°C |
|
PV8F2U0SS-331SWITCH PUSHBUTTON 4PST 2A 36V |
10 |
|
Datasheet |
PV8, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | 4PST-2NO/2NC | On-Off, Off-On | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Green | 2.8 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
|
|
AV2210E324R04SWITCH PUSHBUTTON SPDT 0.4VA 20V |
72 |
|
Datasheet |
AV22 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | LED, Red | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
AVH22MSSFE17242604SWITCH PUSHBUTTON SPDT 26A 125V |
85 |
|
Datasheet |
AVH | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 26A (AC) | 125 V | - | Round, Button, Flush | Power Symbol | Silver | LED, Blue | 24 VDC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -25°C ~ 85°C |
|

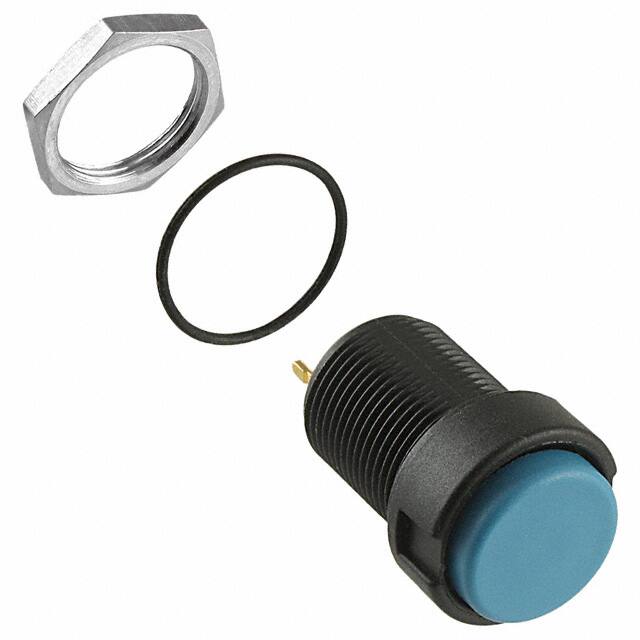

IMP7P412075SWITCH PUSHBUTTON SPDT 3A 28V |
23 |
|
Datasheet |
IM | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (DC) | - | 28 V | Round, Button | No Marking | Blue | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
1.15.106.503/1400SWITCH PUSH 1NO 1NC 500MA 24V |
7 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 500mA (AC/DC) | 24 V | 24 V | Round, Button | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 2 VDC | Solder Lug | IP40 | - | Circular - 9.10mm Dia | -25°C ~ 70°C |
