Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3UL-TBY-2A1C-MSWITCH PUSHBUTTON SPDT 0.1A 30V |
9 |
|
Datasheet |
A3U | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button, Flush | No Marking | Clear (Yellow Filter/Diffuser) | LED, Yellow | 12 VDC | Connector | IP40 | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|

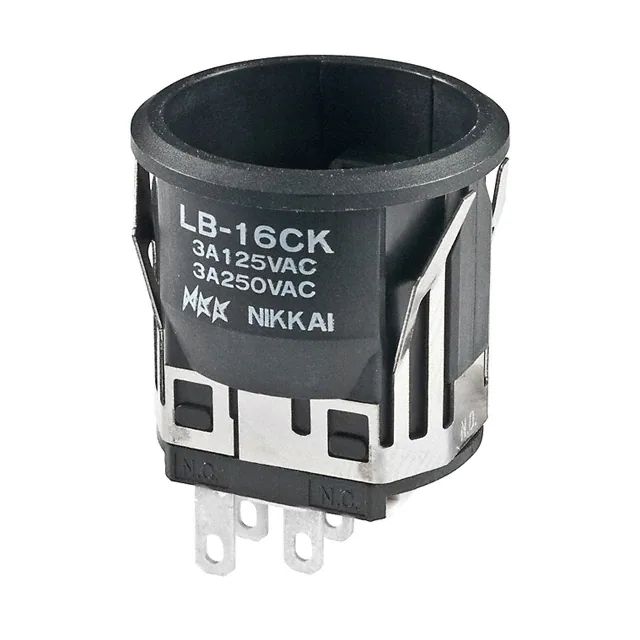

LB16CKW01SWITCH PUSHBUTTON SPDT 3A 125V |
27 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
UB25NKW01N-CSWITCH PUSHBUTTON DPDT 5A 125V |
10 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | - | - | Solder Lug | - | Spot LED | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|
8168SHCGE2SWITCH PUSHBUTTON SPDT 6A 120V |
46 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
UB216KKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
15 |
|
Datasheet |
UB2 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Sealed - Fully | Square - 17.40mm x 17.40mm | -25°C ~ 70°C |
|
|
UB15KKG015F-JBSWITCH PUSH SPDT 0.4VA 28V |
3 |
|
Datasheet |
UB | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 2.1 VDC | Solder Lug | - | Overtravel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
E112SD1AV3BESWITCH PUSH SPDT 0.4VA 20V |
80 |
|
Datasheet |
E010 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

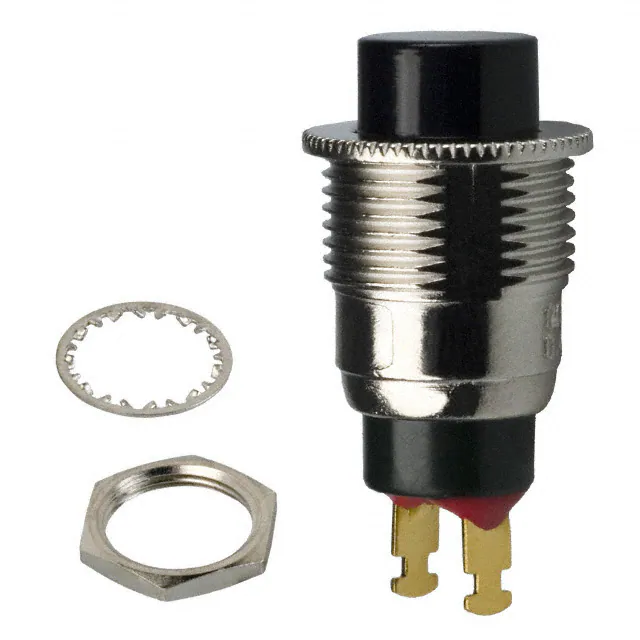

8532T1ZBE2SWITCH PUSH SPST-NO 0.4VA 20V |
42 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
E112SD1AV2QESWITCH PUSHBUTTON SPDT 4A 125V |
32 |
|
Datasheet |
E010 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
9432ABSWITCH PUSH SPST-NC 1A 30V |
39 |
|
- |
9000 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
W59M-112PBS 12MM SPST 0.1A 50V MOM METAL |
51 |
|
Datasheet |
W59M | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | - | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -55°C ~ 125°C |
|
W59M-111PBS 12MM SPST 0.1A 50V MOM METAL |
51 |
|
Datasheet |
W59M | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -55°C ~ 125°C |
|
|
UB215SKG03N-4JFSWITCH PUSH SPDT 0.4VA 28V |
22 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Green Filter/Diffuser) | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|
|
EB2065P-A-J21ASWITCH PUSHBUTTON SPDT 3A 125V |
22 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
|
EB2065-C-J31ASWITCH PUSHBUTTON SPDT 3A 125V |
22 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.00mm x 12.50mm | -10°C ~ 70°C |
|
TP12SH8CQESWITCH PUSHBUTTON |
16 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
SW-PB7-01B32BRMANTI-VANDAL PUSHBUTTON SWITCH, 1 |
51 |
|
Datasheet |
SW | Box | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 500mA (AC) | 220 V | - | Round, Button | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.50mm Dia | -25°C ~ 55°C |
|
UB16NBKW01N-BSWITCH PUSHBUTTON SPDT 5A 125V |
1 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

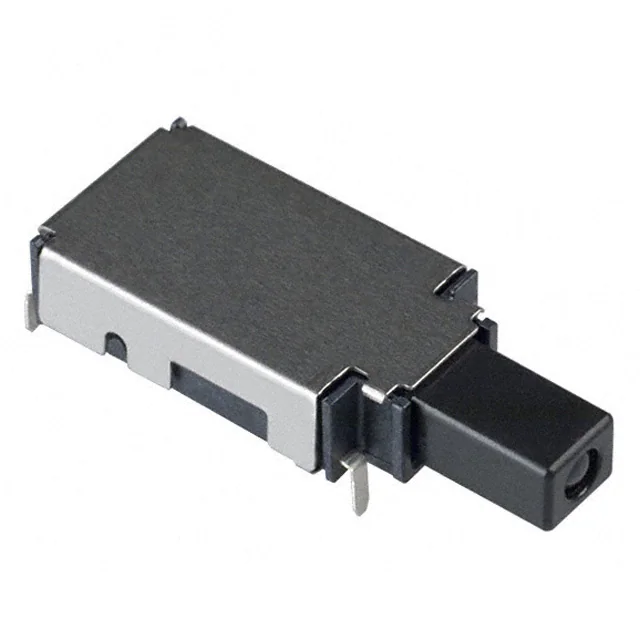

ELUMOATHQ2C12SWITCH PUSH SPDT 0.25A 50V |
35 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green/Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
M2B25AA5W30SWITCH PUSHBUTTON DPDT 1A 125V |
41 |
|
Datasheet |
M2 | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
