Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KB16CKW01-6F-JBSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKG01-6B-JBSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

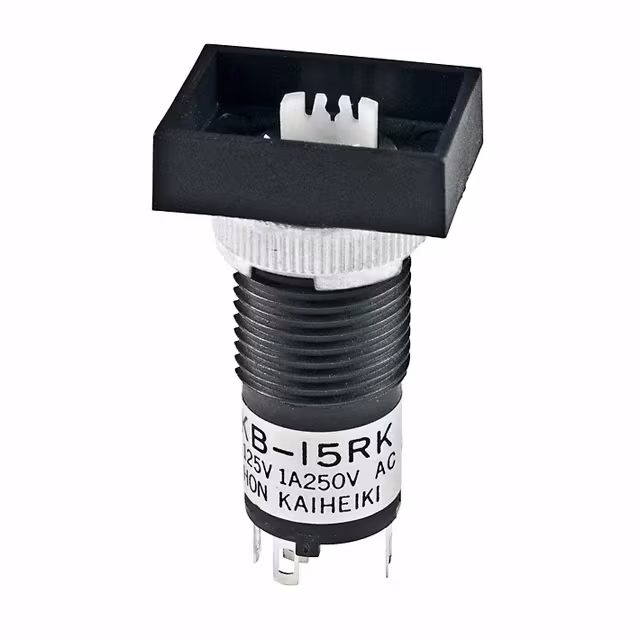

KB15RKW01SWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 70°C |
|
|
YB25WSKW01-05-EBSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
YB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Yellow (White Filter/Diffuser) | Incandescent, Yellow | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | Voltage Reduction Lighting | Circular - 16.00mm Dia | -25°C ~ 50°C |
|
FP0115CAC1FFSWITCH PUSHBUTTON |
0 |
|
Datasheet |
FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Green | LED, Green | 2.25 VDC | Socketable | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
UB215SKG03CFSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
UB2 | Tray | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 50°C |
|
|
KB15CKG01-5D24-JDSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 24 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKG01-5D12-JDSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Amber Filter/Diffuser) | LED, Amber | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKG01-5C12-JCSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 12 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15SKW01-6B-JBSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15RKW01-6B-JBSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-6G-JBSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-6B-JBSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 3.3 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
UB215SKW03CF-1JBSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Tray | Obsolete | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
|
KB15RKW01-6G-JBSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

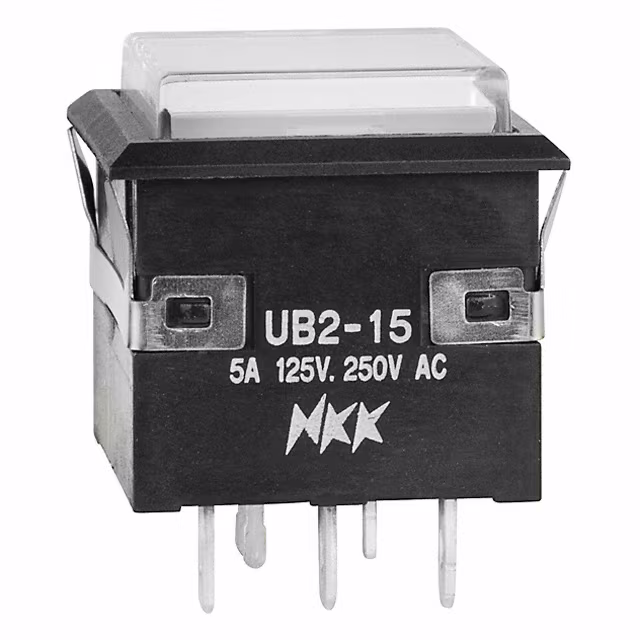

UB215KKW01CF-3JBSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | Solder Lug | - | RTV Adhesive Sealant on Terminals | Square - 17.40mm x 17.40mm | -25°C ~ 50°C |
|
|
KB15MKW01-6G-JBSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
KB16KKW01-5F05-ABSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Green | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|
|
UB225SKW03CF-1JBSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
UB2 | Tray | Obsolete | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | 2.1, 3.5 VDC | PC Pin | - | Sealed - Fully | - | -25°C ~ 50°C |
|
KB25CKW01-6G-JBSWITCH PUSHBUTTON DPDT 1A 125V |
0 |
|
Datasheet |
KB | Tray | Obsolete | Panel Mount, Front | Standard, Illuminated | DPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue | 3.6 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
