Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB862SWITCH PUSH SPST 10A 125V |
0 |
|
- |
SB | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST | On-Off | 10A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
DLB2145W01SWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
DLB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 50°C |
|
MB2065SB1W01-6A-ASWITCH PUSHBUTTON SPDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Snap-In | Standard | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 23.30mm Dia | -30°C ~ 85°C |
|
|
DLB2141W03SWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
DLB | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | Circular - 12.50mm Dia | -10°C ~ 50°C |
|
|
LB15SKG01-05-FJSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Green | Incandescent, Green | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16SKW01-12-JBSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | Incandescent, White | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
|
DLB2141W01-L1CSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
DLB | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | DPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Square, Button | No Marking | Red | Incandescent, Red | 28 VAC | Solder Lug | - | - | Circular - 12.50mm Dia | -20°C ~ 50°C |
|
|
DLB2141W01-L3GSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
DLB | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | DPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | Incandescent, Blue | 28 VAC | Solder Lug | - | - | Circular - 12.50mm Dia | -20°C ~ 50°C |
|
|
LB15CKG01-12-JFSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
MB2181SB1W01SWITCH PUSHBUTTON 4PDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
LB15SKG01-05-CJSWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Red | Incandescent, Red | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

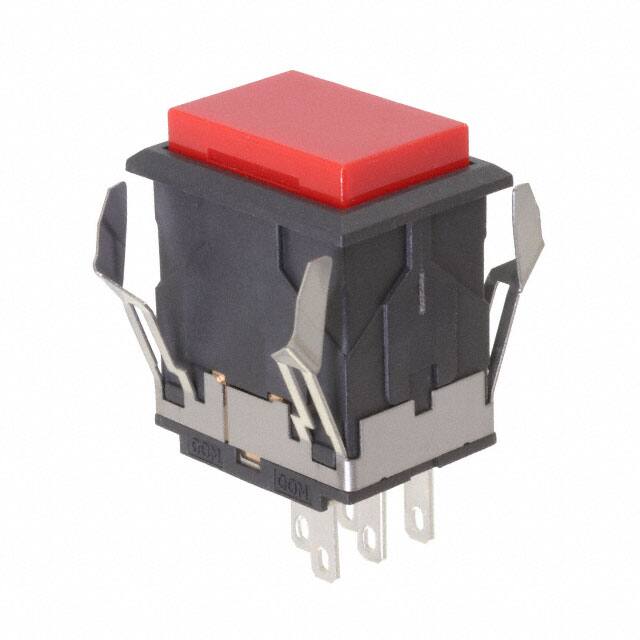

LB16RKW01-12-CJSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
MB2185SB1W01SWITCH PUSHBUTTON 4PDT 6A 125V |
0 |
|
Datasheet |
MB2000 | Bulk | Obsolete | Panel Mount, Rear | Standard | 4PDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -30°C ~ 85°C |
|
|
DLB2145W01-N2CSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
DLB | Bulk | Obsolete | Panel Mount, Rear | Standard, Illuminated | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | Neon, Red | 110 VAC | Solder Lug | - | - | Circular - 12.50mm Dia | -20°C ~ 50°C |
|
|
LB16RKW01-12-JCSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
LB16CKW01-12-CJSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Red | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB16CGW01-12-JGSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Blue Filter/Diffuser) | Incandescent, Blue | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB15RKW01-12-CJSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Red | Incandescent, Red | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
LB15RKW01-05-JCSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Clear (Red Filter/Diffuser) | Incandescent, Red | 5 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
|
|
LB15RKW01-12-EJSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Yellow | Incandescent, Yellow | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 22.40mm x 16.20mm | -25°C ~ 50°C |
