Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TA8UEEBAGPNTAASWITCH PUSH 8PDT 0.5A 100V |
0 |
|
Datasheet |
TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 8PDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Rectangular, Button | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TL2201OAXA (W/CLICK)SWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Audible Click | - | - |
|
|
KB16CKW01-12-FFSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Green | Incandescent, Green | 12 VAC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

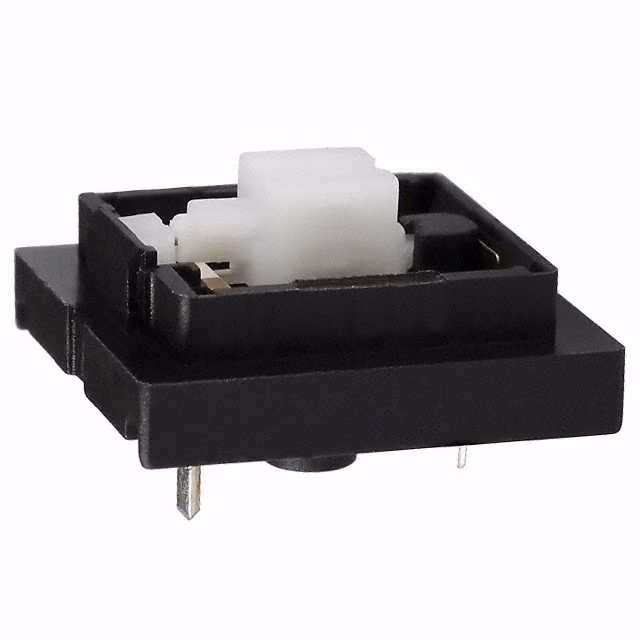

3.12960.1010000SWITCH PUSHBUTTON |
0 |
|
- |
- | Tube | Obsolete | - | Keyswitch | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

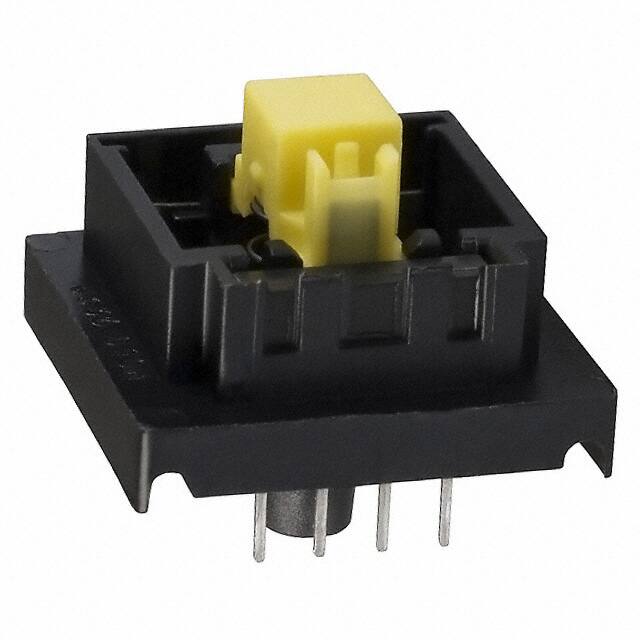

3.13011.0100000SWITCH PUSHBUTTON |
0 |
|
- |
RS76 | Tube | Obsolete | Through Hole | Keyswitch | - | - | - | - | - | - | No Marking | Yellow | - | - | PC Pin | - | - | - | - |
|
1.15108.2560000SWITCH PUSH DPST 4A 250V |
0 |
|
- |
LUMOTAST 75 | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 4A (AC), 200mA (DC) | 250 V | 230 V | Square, Button | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | -25°C ~ 70°C |
|

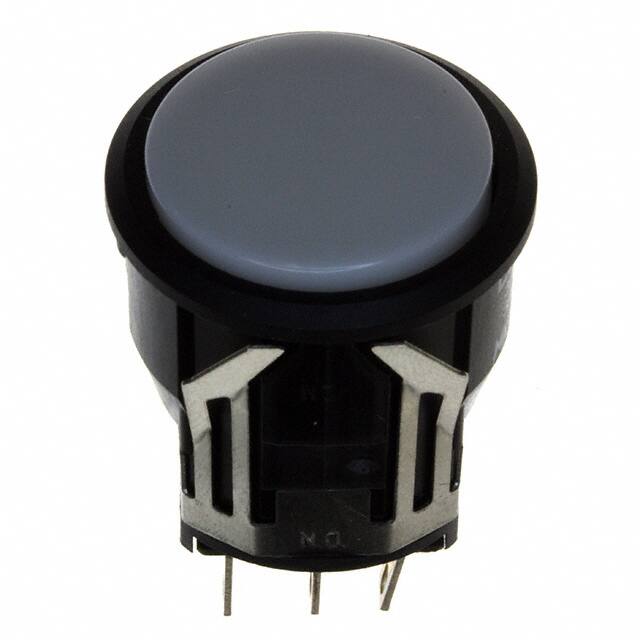

LB16CKW01-12-BJSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | Incandescent, White | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
LB26CKW01-12-BJSWITCH PUSHBUTTON DPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | White | Incandescent, White | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|

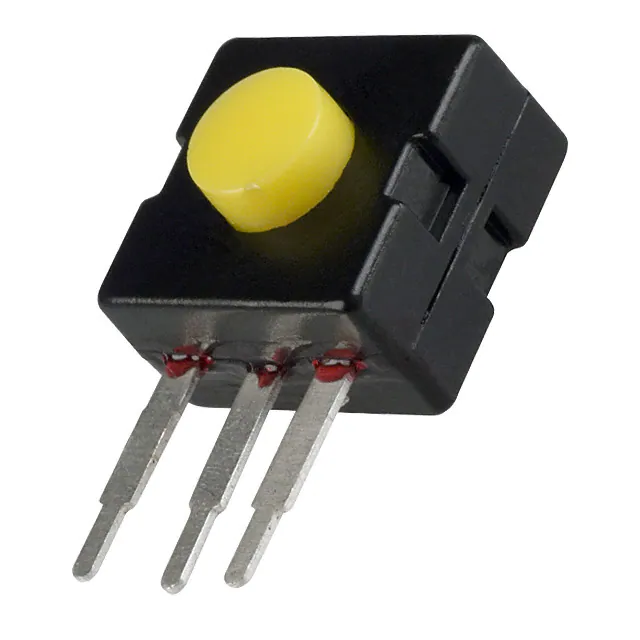

50-0063-00SWITCH PUSH SPDT 0.5A 14V |
0 |
|
Datasheet |
J-977 | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Off-On | 500mA (DC) | - | 14 V | Round, Plunger | No Marking | Yellow | - | - | PC Pin | - | - | - | - |
|
|
FP0115CAC1DD-C2SWITCH PUSHBUTTON |
0 |
|
Datasheet |
FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Amber | LED, Amber | 2 VDC | Connector | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
|
FP0115CAC1FF-C2SWITCH PUSHBUTTON |
0 |
|
Datasheet |
FP01 | Tray | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | - | On-Off | - | - | - | Round, Button | No Marking | Green | LED, Green | 2.25 VDC | Connector | - | Photo Interrupter | Circular - 22.90mm Dia | -25°C ~ 50°C |
|
LB16CKW01-12-JFSWITCH PUSHBUTTON SPDT 3A 125V |
0 |
|
Datasheet |
LB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Green Filter/Diffuser) | Incandescent, Green | 12 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 50°C |
|
|
KB15CKW01-5C05-JCSWITCH PUSHBUTTON SPDT 1A 125V |
0 |
|
Datasheet |
KB | Bulk | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Clear (Red Filter/Diffuser) | LED, Red | 5 VDC | Solder Lug | - | - | Circular - 12.30mm Dia | -25°C ~ 50°C |
|

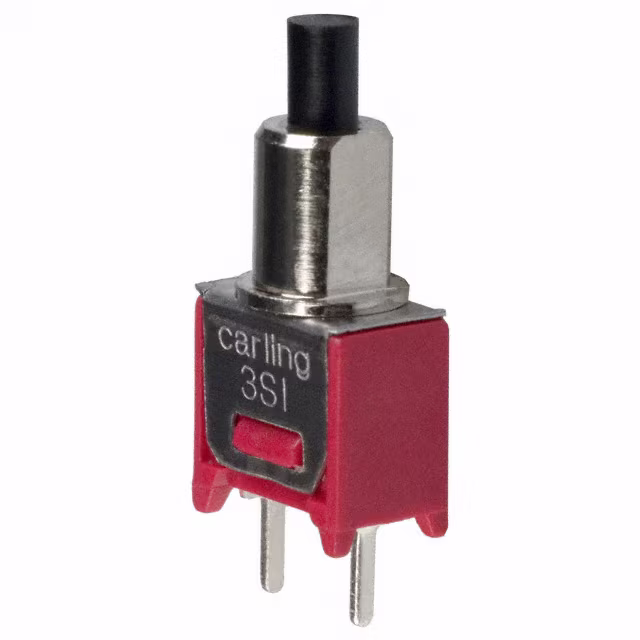

3S1-SP9-B6-M2QESWITCH PUSH SPST-NO 1A 125V |
0 |
|
Datasheet |
3S1 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 28 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

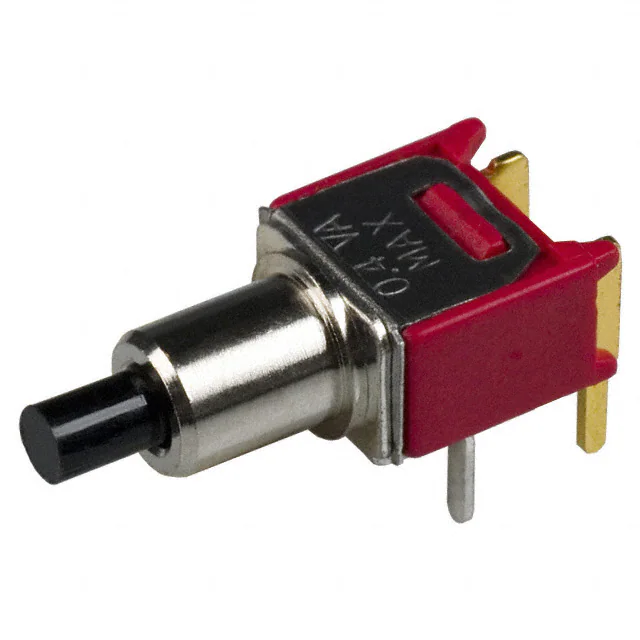

3S1-SP9-B6-M6RESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
3S1 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

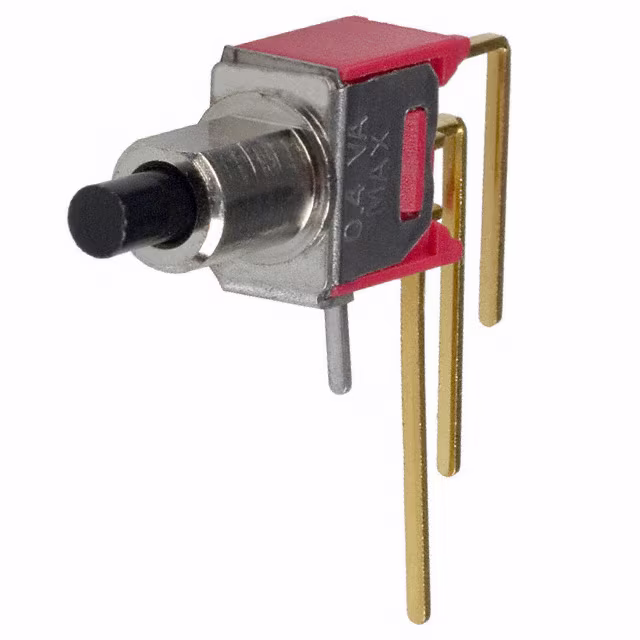

3S1-SP8-B6-M7RESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
3S1 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

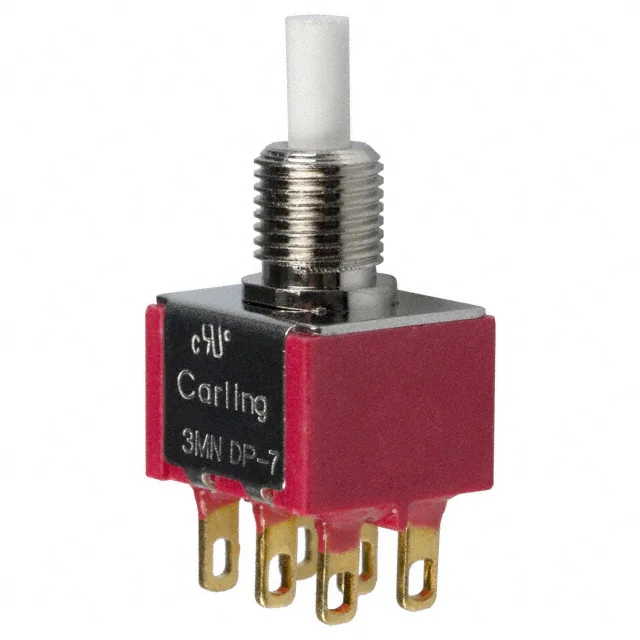

3MN-DP7-P1-B11-M1GESWITCH PUSHBUTTON DPDT 1A 120V |
0 |
|
Datasheet |
3MN | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|

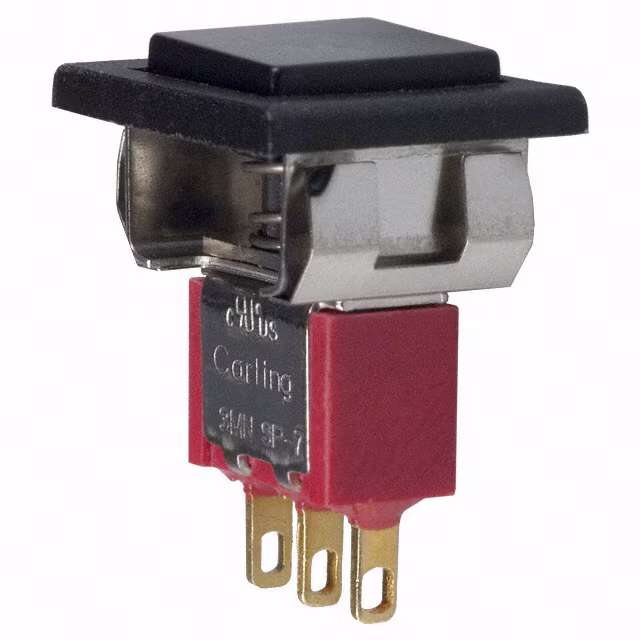

3MN-SP7-AP2/22-M1GESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
3MN | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
3MN-SP7-P1-B6-M6GESWITCH PUSHBUTTON SPDT 1A 120V |
0 |
|
Datasheet |
3MN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
F6UEETBSWITCH PUSH 6PDT 0.5A 125V |
0 |
|
Datasheet |
F | Bulk | Obsolete | Through Hole, Right Angle | Standard | 6PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
