Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
520.01-REDSWITCH PUSH SPST-NO 0.01A 35V |
0 |
|
Datasheet |
520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | - |
|
|
520.02-BLKSWITCH PUSH SPST-NO 0.01A 35V |
0 |
|
Datasheet |
520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
|
520.02-GRNSWITCH PUSH SPST-NO 0.01A 35V |
0 |
|
Datasheet |
520 | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | Green | - | - | PC Pin | - | - | - | - |
|

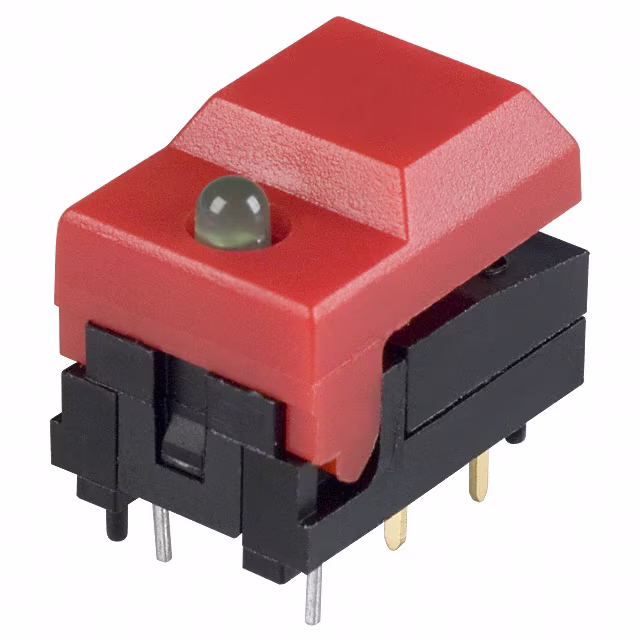

5501MREDGRNSWITCH PUSH SPDT 0.3A 12V |
0 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
GP12MAKESWITCH PUSH SPDT 0.4VA 20V |
0 |
|
Datasheet |
GP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
P227EE2B20ASWITCH PUSHBUTTON DPDT 7A 125V |
0 |
|
Datasheet |
P227 | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 7A (AC) | 125 V | - | Plunger for Cap | No Marking | Blue | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
|
1XTA000302/2UEEAAGPNSWITCH PUSH DPDT 0.5A 100V |
0 |
|
Datasheet |
TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
1XMTH2UEESWITCH PUSH DPDT 0.1A 30V |
0 |
|
- |
MTH | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
1XJN002UEESWITCH PUSH DPDT 0.1A 30V |
0 |
|
Datasheet |
JN | Bulk | Obsolete | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | Blue | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
GP11MCKESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
GP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
GP11MAKESWITCH PUSH SPST-NO 0.4VA 20V |
0 |
|
Datasheet |
GP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
TP21SHZQESWITCH PUSH DPST-NO 1A 120V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | Power Symbol | Black | - | - | Solder Lug | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
A3GT-99C0-BSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
A3G | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|

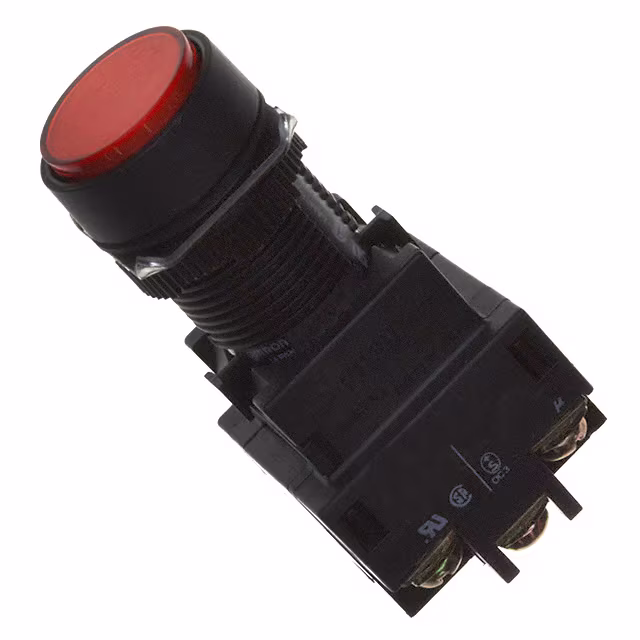

A3GT-99D0-RSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
A3G | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
A3GT-99D0-BSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
A3G | Bulk | Obsolete | Panel Mount, Front | Standard | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP65 - Dust Tight, Oil and Water Resistant | - | Circular - 16.00mm Dia | -10°C ~ 55°C |
|
|
TA2UEEAAGPNSWITCH PUSH DPDT 0.5A 100V |
0 |
|
Datasheet |
TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA2UOAAAGPNSWITCH PUSH DPDT 0.5A 100V |
0 |
|
Datasheet |
TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA2UEECAGPNSWITCH PUSH DPDT 0.5A 100V |
0 |
|
Datasheet |
TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA4UOAAAGPNSWITCH PUSH 4PDT 0.5A 100V |
0 |
|
Datasheet |
TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
|
|
TA4UEEAAGPNSWITCH PUSH 4PDT 0.5A 100V |
0 |
|
Datasheet |
TA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 4PDT | On-On | 500mA (AC), 1A (DC) | 100 V | 25 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -20°C ~ 70°C |
