Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
52PP2ACAPP2,MTD,CHR MTL,1NO-1NC |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 60A (AC) | 110 V | - | Round, Button, Mushroom | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PP7ACU3POS,MTD-N ILL,CHR MTL,NCXLB-NC |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | DPST-NC | On-Off | 60A (AC) | 110 V | - | Round, Button, Mushroom | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PP2A3APP2,MTD,GRN MTL,1NO-1NC |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 60A (AC) | 110 V | - | Round, Button, Mushroom | - | - | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
3PB11SWITCH PUSH 3XSPDT 5A 250V |
0 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 3 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | - | -55°C ~ 85°C |
|
|
52PP3ERXB3POS,MOM,FV 120V,FULL ILL RED,LE |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | - | LED, Red | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PP3ETXB3POS,MOM,FV 120V,FULL ILL AMB,LE |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | Amber | LED, Yellow | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PP7BSXB3POS,MTD,FV 6V,FULL ILL GRN,LED |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | - | LED, Green | 6 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
9001SK2L38LGGH13PUSHBUTTON 600VAC 10AMP 30MM SK |
0 |
|
Datasheet |
Harmony 9001SK | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 550mA (DC) | - | 125 V | Round, Button | - | Green | LED, Green | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001K2L1AH13PUSH BUTTON 600VAC 10A 30MM T-K |
0 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 10A (AC/DC) | - | - | Round, Button | - | Amber | Incandescent, Amber | 110 ~ 120 VAC | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
9001SK2L38LRRH13PUSHBUTTON 600VAC 10AMP 30MM SK |
0 |
|
Datasheet |
Harmony 9001SK | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 550mA (DC) | - | 125 V | Round, Button | - | Red | LED, Red | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001SK2L35LRRH13PUSHBUTTON 600VAC 10AMP 30MM SK |
0 |
|
Datasheet |
Harmony 9001SK | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 550mA (DC) | - | 125 V | Round, Button | - | Red | LED, Red | 24 ~ 28 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
9001K2L1R20H13PUSH BUTTON 600VAC 10A 30MM T-K |
0 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 10A (AC/DC) | - | - | Round, Button, Mushroom | - | Red | Incandescent, Red | 110 ~ 120 VAC | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|

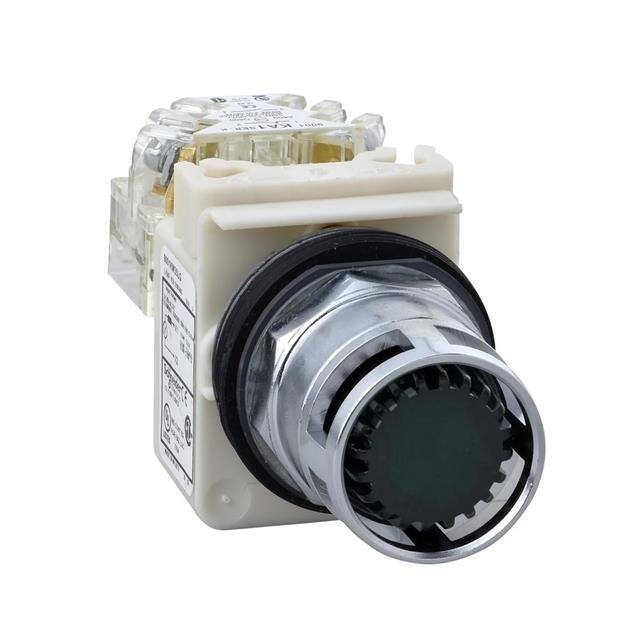

9001K3L1GH13PUSH BUTTON 600VAC 10A 30MM T-K |
0 |
|
Datasheet |
Harmony 9001K | Box | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 550mA (DC) | - | 125 V | Round, Button, Flush | - | Green | Incandescent, Green | 110 ~ 120 VAC | Screw Terminal | IP66 - Dust Tight, Oil and Water Resistant | - | Circular - 30.00mm Dia | -25°C ~ 70°C |
|
|
52PT6EAABPTT/ILL PB,MOM,FV,120V,CLR,1NO-1 |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 60A (AC) | 110 V | - | Round, Button | - | - | LED, White | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PT6B2ABPTT/ILL PB,MOM,FV,6V,RED,1NO-1NC |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 60A (AC) | 110 V | - | Round, Button | - | Red | LED, Red | 6 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52BT6H7APTT/ILL PB,NMA4X,XFMR,240V,ALL L |
0 |
|
- |
- | Box | Active | - | Standard, Illuminated | - | - | - | - | - | - | - | - | - | 240 VAC | - | - | - | - | - |
|
|
52BP3JRXB3POS,NEMA4X,MOM,XFR 480V,FULL RE |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | - | LED, Red | 480 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52BP3JTXB3POS,NEMA4X,MOM,XFR 480V,FULL AM |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | Amber | LED, Yellow | 480 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52BP3GSXB3POS,NEMA4X,MOM,XFR 120V,FULL GR |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | - | LED, Green | 120 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52BP3HSXB3POS,NEMA4X,MOM,XFR 240V,FULL GR |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | - | LED, Green | 240 VAC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
