Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30143918ILLUMINATED PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | LED, Green | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

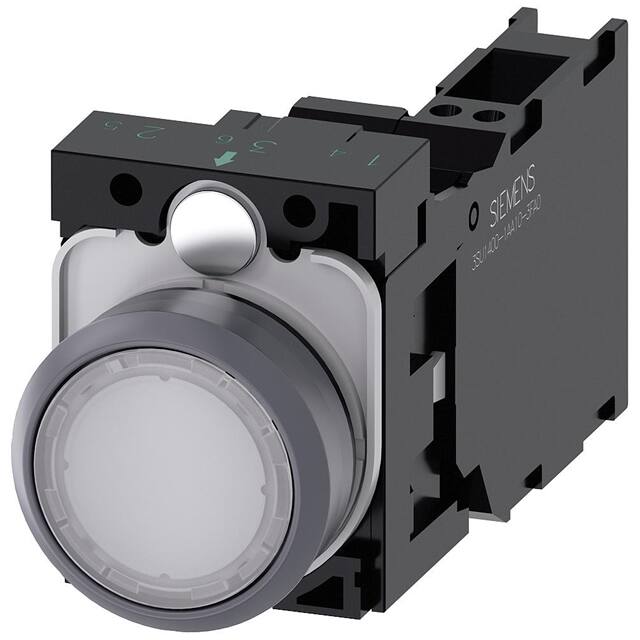

A6X30142743ILLUMINATED PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142648ILLUMINATED PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142754ILLUMINATED PUSHBUTTON. CLEAR |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142671ILLUMINATED PUSHBUTTON. YELLOW |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142714ILLUMINATED PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30142689ILLUMINATED PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | LED, Green | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30142742ILLUMINATED PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30143982ILLUMINATED PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
AV5V22F102034BPUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (DC) | - | 30 V | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Wire Leads | - | - | Circular - 30.20mm Dia | -30°C ~ 85°C |
|
|
AV5V22F002084BPUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 1A (DC) | - | 30 V | Round, Button, Flush | - | Silver | LED, Green | 24 VDC | Wire Leads | - | - | Circular - 30.20mm Dia | -30°C ~ 85°C |
|
|
XB4BP42GEXHAZ LOC - PB RED W/BOOT |
0 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 75°C |
|
|
XB4BPS42GEXHAZ LOC - PB RED W/RED BOOT |
0 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 75°C |
|
|
52BT6G5KILLUM PB,EXT,NEMA4X, XF,120V INC |
0 |
|
- |
- | Box | Active | - | Standard, Illuminated | - | - | - | - | - | - | - | - | Incandescent | 120 VAC | - | - | - | - | - |
|
|
52BT6J3KILLUM PB,EXT,NEMA4X, XF,480V INC |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button | - | Green | Incandescent | 480 VAC | Screw Terminal | - | - | - | - |
|
|
52BT6G2KILLUM PB,EXT,NEMA4X, XF,120V INC |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button | - | Red | Incandescent | 120 VAC | Screw Terminal | - | - | - | - |
|
|
52BT6J2JILLUM PB,EXT,NEMA4X, XF,480V INC |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button | - | Red | Incandescent | 480 VAC | Screw Terminal | - | - | - | - |
|
|
52BT6G9JILLUM PB,EXT,NEMA4X, XF,120V INC |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button | - | Orange | Incandescent | 120 VAC | Screw Terminal | - | - | - | - |
|
|
52BT6GBKILLUM PB,EXT,NEMA4X, XF,120V INC |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button | - | White | Incandescent | 120 VAC | Screw Terminal | - | - | - | - |
|
|
52BT6HBKILLUM PB,EXT,NEMA4X, XF,240V INC |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button | - | White | Incandescent | 240 VAC | Screw Terminal | - | - | - | - |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
