Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

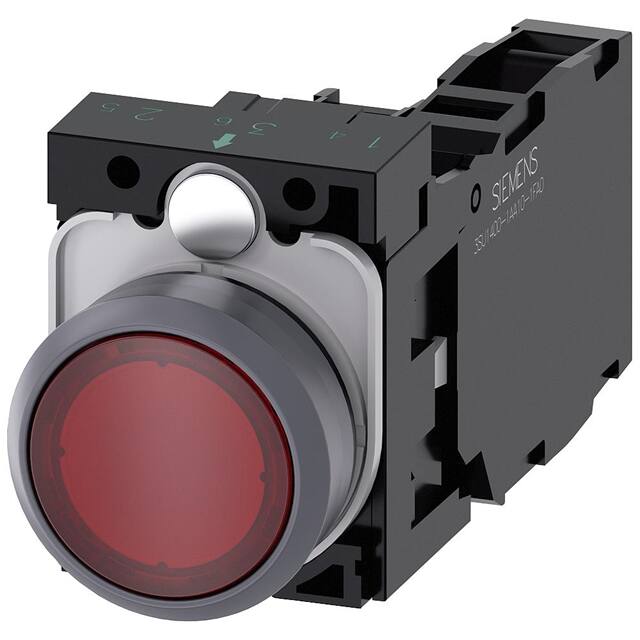

A6X30143761ILLUMINATED PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

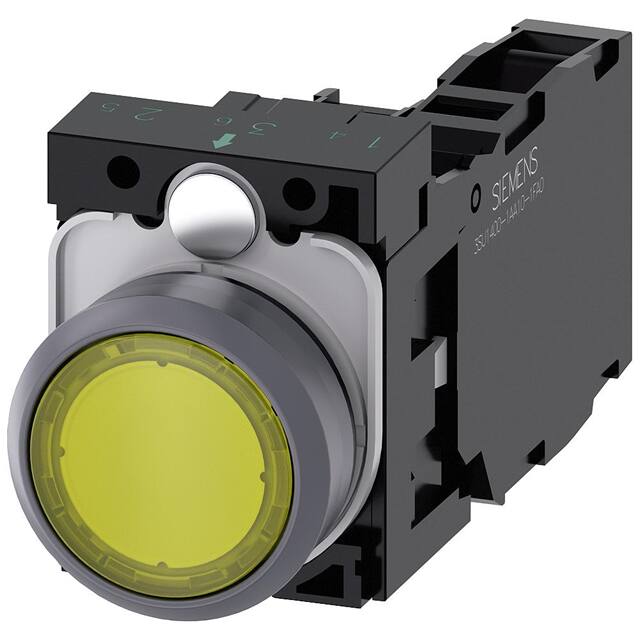

A6X30143825ILLUMINATED PUSHBUTTON. YELLOW |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142728ILLUMINATED PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142749ILLUMINATED PUSHBUTTON. CLEAR |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143874ILLUMINATED PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | LED, Green | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
52PP3DR3POS,MOM,FV 24V,FULL ILL RED |
0 |
|
Datasheet |
- | Box | Active | - | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | Red | Incandescent, Red | 24 VAC/DC | - | - | - | Circular - 30.00mm Dia | - |
|
|
52PT6E2ASWITCH,COMMAND,1NO+1NC,RED |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 60A (AC) | 110 V | - | Round, Button | - | - | Incandescent, Clear | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PP3BS3POS,MOM,FV 6V,FULL ILL GRN |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | - | Incandescent, Clear | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52BR8W2GPTR,NEMA4X,MTD,PLASTIC CAP RED,2 |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | DPST-NC | On-Off | - | - | - | Round, Button, Mushroom | - | Red | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
52PT6DNAPTT PL/ILL PB,,FV,INC,24 V,1NO-1 |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Round, Button | - | Silver | Incandescent | 24 VAC/DC | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
52PT6B2APTT PL/ILL PB,MOM,FV,6V,RED,1NO- |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 60A (AC) | 110 V | - | Round, Button | - | - | Incandescent, Clear | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PT6BAAPTT PL/ILL PB,MOM,FV,6V,CLR,1NO- |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 60A (AC) | 110 V | - | Round, Button | - | - | Incandescent, Clear | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PT6BBAPTT PL/ILL PB,MOM,FV,6V,WHT,1NO- |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 60A (AC) | 110 V | - | Round, Button | - | - | Incandescent, Clear | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PP3CS3POS,MOM,FV 12V,FULL ILL GRN |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | - | Incandescent, Clear | 12 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PP3DS3POS,MOM,FV 24V,FULL ILL GRN |
0 |
|
- |
- | Box | Active | - | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | Green | Incandescent, Green | 24 VAC/DC | - | - | - | Circular - 30.00mm Dia | - |
|
|
52PT6B5APTT PL/ILL PB,MOM,FV,6V,BLU,1NO- |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 60A (AC) | 110 V | - | Round, Button | - | - | Incandescent, Clear | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PT6E9ASWITCH_COMMAND_1NO 1NC_AMBER |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 60A (AC) | 110 V | - | Round, Button | - | - | Incandescent, Clear | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PT6EBASWITCH,COMMAND,WHITE |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 60A (AC) | 110 V | - | Round, Button | - | - | Incandescent, Clear | 120 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52BR8W3AOPER,PTR,2POS,MTD,GREEN |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 60A (AC) | 110 V | - | Round, Button, Mushroom | - | Green | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
|
|
52PP3BT3POS,MOM,FV 6V,FULL ILL AMB |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard, Illuminated | - | - | - | - | - | Round, Button, Mushroom | - | Amber | Incandescent, Clear | 6 VAC/DC | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 30.00mm Dia | -35°C ~ 70°C |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
