Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30142758ILLUMINATED PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142769ILLUMINATED PUSHBUTTON. YELLOW |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | LED, Yellow | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
50070974-003-01SWITCH AUTO OPERATOR CONTROL |
0 |
|
- |
87940 | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Off, Off-On | 10A (DC) | - | 24 V | Round, Button, Mushroom | No Marking | Yellow | - | - | Screw Terminal | - | - | - | -40°C ~ 40°C |
|
|
50070974-004-01SWITCH AUTO OPERATOR CONTROL |
0 |
|
- |
87940 | Bulk | Active | Panel Mount, Rear | Standard | DPST-NO/NC | On-Off, Off-On | 10A (DC) | - | 24 V | Round, Button, Mushroom | No Marking | Black | - | - | Screw Terminal | - | - | - | -40°C ~ 40°C |
|
|
A3PJ-90D11-24EGSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
A3P | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
A3SJ-90E1-24EGSWITCH PUSHBUTTON SPDT 0.1A 125V |
0 |
|
Datasheet |
A3S | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Rectangular, Button | No Marking | Green | LED, Green | 24 VDC | Quick Connect - 0.110" (2.8mm) | IP00 | - | Rectangular - 22.40mm x 16.20mm | -10°C ~ 50°C |
|
|
AV24LB402SWITCH PUSHBUTTON SPDT 5A 250V |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Domed | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Sealed - Fully | Circular - 24.20mm Dia | -20°C ~ 55°C |
|
|
PBARY1F2000Y0BPUSHBUTTON SWITCH PBA PIEZO |
0 |
|
Datasheet |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST | Off-On | 200mA (AC/DC) | 24 V | 24 V | Round, Button | - | Black | LED, Blue | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.20mm Dia | -40°C ~ 75°C |
|
|
AV24LP404SWITCH PUSHBUTTON SPDT 5A 250V |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Sealed - Fully | Circular - 24.20mm Dia | -20°C ~ 55°C |
|
|
AV22LB464PUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | - | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV22LC43F2PUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | - | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV22LC462PUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | - | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV22LC464PUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | - | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV22LC46APUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Rear | Anti-Vandal | SPDT | On-On | 6A (AC) | 250 V | - | Round, Button, Flush | - | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|

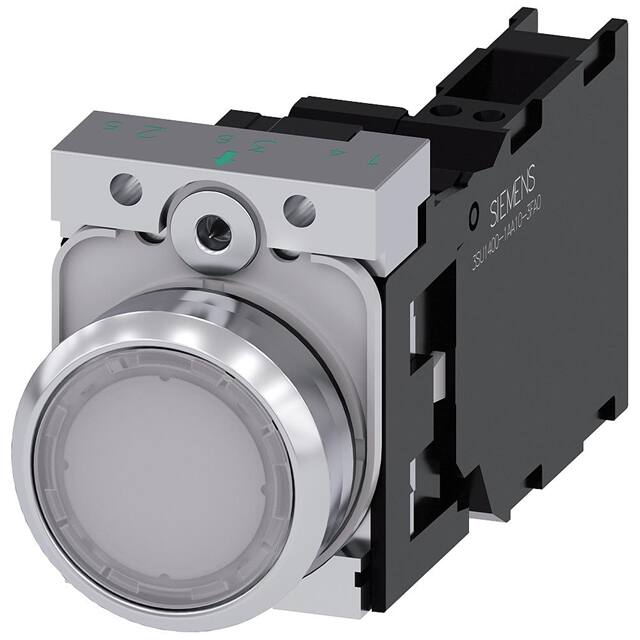

A6X30144343ILLUMINATED PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
XB4FW31G5FLUSH CAPS ILL PB WH LED 120V 1N |
0 |
|
Datasheet |
Harmony XB4 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | White | LED, White | 110 ~ 120 VAC | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
13440AD225X822PUSH SWITCH 13000 HIGH SPEC |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
52BM9V1KPUSHBUTTON,NEMA 4X,BLK,M-ROOM LA |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | - | - | - | Round, Button, Mushroom | - | Black | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
52BM9W6EPUSHBUTTON,MOM,GRY,1 3/4" PLST,2 |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | - | - | - | Round, Button, Mushroom | - | Gray | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
52BM9W4HPUSHBUTTON,MOM,YEL,1 3/4" PLST,2 |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | - | - | - | Round, Button, Mushroom | - | Yellow | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
