Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW6ML-A2C35VG25MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 3PDT | On-On | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Green | LED, Green | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 50°C |
|
|
01-264.025SWITCH PB 8PST-4NO/4NC 5A 250V |
0 |
|
Datasheet |
01 | Bulk | Active | Panel Mount, Front | Standard | 8PST-4NO/4NC | On-Off, Off-On | 5A (AC) | 250 V | - | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
01-284.025SWITCH PB 8PST-4NO/4NC 5A 250V |
0 |
|
Datasheet |
01 | Bulk | Active | Panel Mount, Front | Standard | 8PST-4NO/4NC | On-Off, Off-On | 5A (AC) | 250 V | - | Square, Button (Not Included) | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
XB5AA711237PLSTC FLSH 3 BUTTON CMPT STP WHT |
0 |
|
Datasheet |
Harmony XB5 | Box | Active | Panel Mount, Front | Standard | 3PST-2NO/1NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Square, Button | - | Black, Red, White | - | - | Screw Terminal | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
|
AV09C7L3D2009KPUSHBUTTON SWITCH AV SECURITY |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Amber | 2.3 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
AV091L3EA810KPUSHBUTTON SWITCH AV SECURITY |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 2A (DC) | - | 48 V | Round, Button, Flush | - | Silver | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
PBAR9AFB000MXPUSHBUTTON SWITCH PBA PIEZO |
0 |
|
- |
PBA | Bulk | Active | Panel Mount, Front | Piezo | SPST-NO | Off-Mom | 200mA (AC/DC) | 24 V | 24 V | Round, Button, Flush | - | Silver | - | - | Wire Leads | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 75°C |
|
|
AOLN1610S-R-W/OC122ILLUMINATED PUSHBUTTON N SERIE |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A3PJ-90B12-24AWSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
52BM8G4APB,NEMA4X,MOM,CAP YLW,GAURD,2POS |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Round, Button | - | Yellow | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
52BM8G2APB,NEMA4X,MOM, CAP RED,GAURD,2PO |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Round, Button | - | Red | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
52BM8G3APB,NEMA4X,MOM,CAP GREEN,GAURD,2P |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Round, Button | - | Green | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
52BM8G8APB,NEMA4X,MOM, CAP ORG,GAURD,2PO |
0 |
|
- |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Round, Button | - | Orange | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
|
52BM8G6APB,NEMA4X,MOM, CAP GRAY,GAURD,2P |
0 |
|
Datasheet |
- | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Round, Button | - | Gray | - | - | Screw Terminal | - | - | Circular - 30.00mm Dia | - |
|
A6X30141792ILLUMINATED PUSHBUTTON. YELLOW |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Yellow | LED, Yellow | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

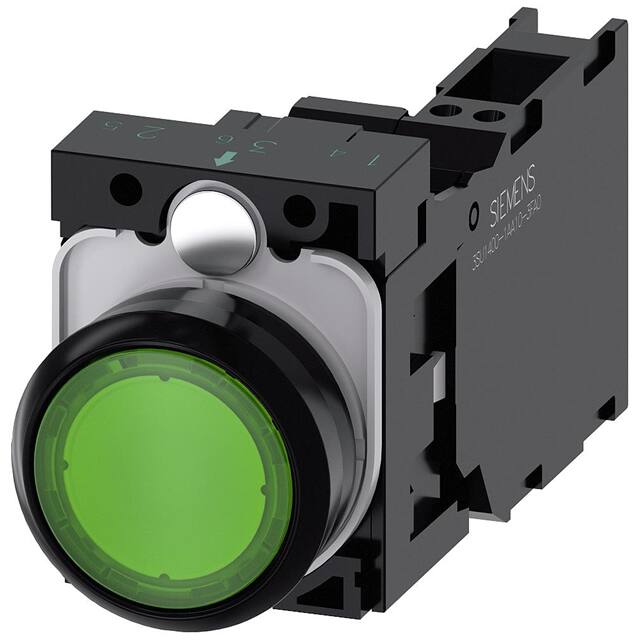

A6X30141822ILLUMINATED PUSHBUTTON. GREEN |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Green | LED, Green | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141899ILLUMINATED PUSHBUTTON. CLEAR |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141847ILLUMINATED PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141848ILLUMINATED PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
AML22CBX2CDSWITCH PUSHBUTTON 4PDT 3A 125V |
0 |
|
Datasheet |
AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | 4PDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
Pushbutton Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
