Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW6L-M2C36VG25MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 3PDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Green | LED, Green | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 50°C |
|
|
LW6L-M2C36VS25MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 3PDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button | - | Blue | LED, Blue | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 50°C |
|
|
LW6ML-M1C36VY25MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 3PDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round, Button, Flush | - | Yellow | LED, Yellow | - | PC Pin | IP65 - Dust Tight, Water Resistant | - | Circular - 25.20mm Dia | -25°C ~ 50°C |
|
|
A3PA-90D11-24AWSWITCH PUSHBUTTON DPDT 5A 125V |
1 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | White | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
|
A3PA-90A11-24EOSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
A3P | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Orange | LED, Orange | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
|
A3PJ-90A12-24AWSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
|
A3PT-90A12-24SASWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 29.00mm Dia | -10°C ~ 50°C |
|
|
AML21BBA2CCUNSEALED OI-PB SWITCH |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PBAR23F0000PUSHBUTTON SWITCH PBA PIEZO |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SU11300AB603FA0PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | - | - | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
AV190003C940NPUSHBUTTON SWITCH AV SECURITY |
0 |
|
- |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 8A (AC), 2A (DC) | 125 V | 48 V | Round, Button | - | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
|
NX307EB1B-02TACTICAL PUSHBUTTON SWITCH |
0 |
|
- |
NX | Bulk | Active | Panel Mount, Front | Standard | DPST-NO | Off-Mom | 10A (AC/DC) | 115 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | Dust Proof | - | - | - |
|
|
AV22LC164SWITCH PUSHBUTTON SPDT 5A 250V |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 5A (AC) | 250 V | - | Round, Button, Flush | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Sealed - Fully | Circular - 22.20mm Dia | -20°C ~ 55°C |
|
|
AV9SLD2011002PUSHBUTTON SWITCH AV SECURITY |
0 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | - | Silver | LED, Blue | 3.3 VDC | Solder Lug | - | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
A6X30141867ILLUMINATED PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141862ILLUMINATED PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141888ILLUMINATED PUSHBUTTON. CLEAR |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142463ILLUMINATED PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

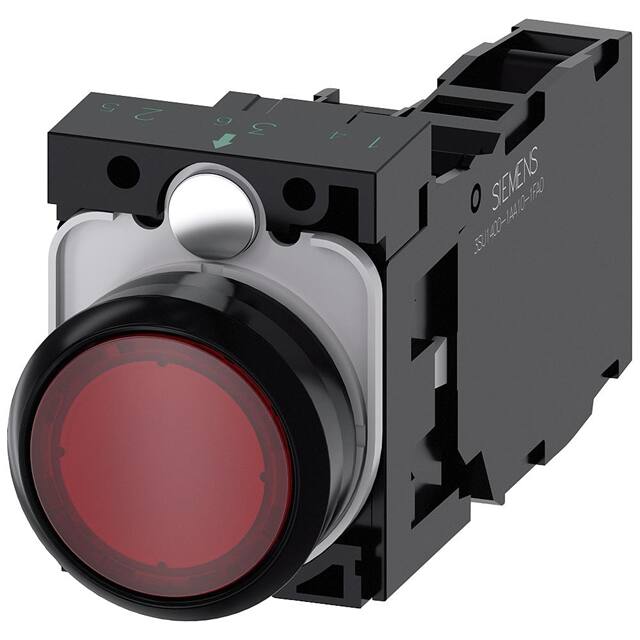

A6X30141763ILLUMINATED PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

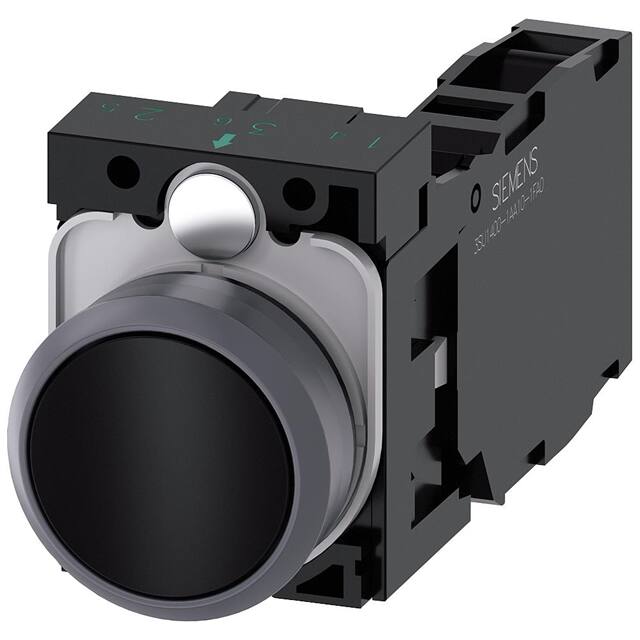

A6X30142370PUSHBUTTON. BLACK |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Black | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
