Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6X30143405ILLUMINATED PUSHBUTTON. AMBER |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Amber | LED, Amber | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30143496ILLUMINATED PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
HW7D-L22F1111T82R-WBHW DUAL PB W/PL INTRLCK FLSH/E |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 4PST-2NO/2NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Rectangular, Button | - | Black, White | LED, Red | 480 VAC | Screw Terminal | IP40 | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
3SU18010AC002AB1ENC PLASTIC, PUSHBUTTON, MOM, RE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NC | - | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | - | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

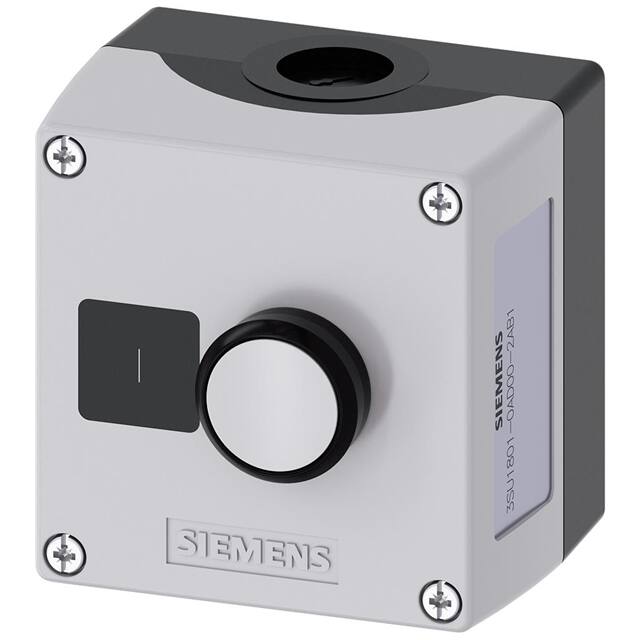

3SU18010AD002AB1ENC PLASTIC, PUSHBUTTON, MOM, WH |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard | SPST-NO | - | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | - | - | - | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
AOLW412602D-A22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Off | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Amber | LED, Amber | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW412602D-G22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Off | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Green | LED, Green | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW412602D-R22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Off | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Red | LED, Red | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW412620D-A22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Amber | LED, Amber | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW424611D-A22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Amber | LED, Amber | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW424620D-R22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Red | LED, Red | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW424602D-W22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Off | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | White | LED, White | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW424611D-R22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Red | LED, Red | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW412611D-A22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Amber | LED, Amber | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW424602D-G22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Off | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Green | LED, Green | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW424602D-A22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NC | On-Off | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Amber | LED, Amber | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW424611D-G22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Green | LED, Green | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW424611D-W22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | White | LED, White | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW412611D-R22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | Red | LED, Red | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
AOLW424620D-W22MM PUSHBUTTON ILLUMINATED |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button, Mushroom | - | White | LED, White | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
