Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HW4L-AF2F11M4D-S22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Blue | LED, Blue | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-AF2F11H2D-S22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Blue | LED, Blue | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-AF2F11T8D-S22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Off, Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Blue | LED, Blue | 480 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-AF2F20M4D-S22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Blue | LED, Blue | 240 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-AF2F20T8D-S22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Blue | LED, Blue | 480 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
HW4L-AF2F20H2D-S22MM PUSHBUTTON ILLUMINATED |
0 |
|
- |
HW | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 10A (AC/DC) | 110 V | 24 V | Round, Button | - | Blue | LED, Blue | 120 VAC | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.30mm Dia | -25°C ~ 50°C |
|
|
A3PA-90A12-24AASWITCH PUSHBUTTON SPDT 5A 125V |
1 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Blue | LED, Blue | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
|
A3PA-90D11-24AOSWITCH PUSHBUTTON DPDT 5A 125V |
1 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Orange | LED, Orange | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
A3PJ-90A11-24AWSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Rectangular, Button | No Marking | White | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 30.50mm x 23.50mm | -10°C ~ 40°C |
|
A3PA-90C11-24ARSWITCH PUSHBUTTON DPDT 5A 125V |
0 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Square, Button | No Marking | Red | LED, Red | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Rectangular - 23.50mm x 22.50mm | -10°C ~ 40°C |
|
|
A3PT-90B12-24SWSWITCH PUSHBUTTON SPDT 5A 125V |
0 |
|
Datasheet |
A3P | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | White | LED, Amber | 24 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 29.00mm Dia | -10°C ~ 50°C |
|
A6X30141840ILLUMINATED PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141843ILLUMINATED PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|

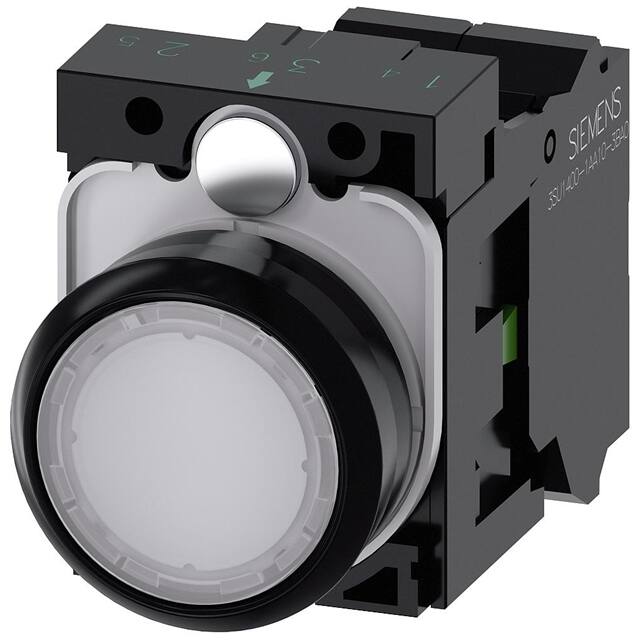

A6X30141873ILLUMINATED PUSHBUTTON. WHITE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | White | LED, White | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141990ILLUMINATED PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30142542ILLUMINATED PUSHBUTTON. CLEAR |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Clear | LED, White | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141992ILLUMINATED PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141844ILLUMINATED PUSHBUTTON. BLUE |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Blue | LED, Blue | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
|
A6X30141993ILLUMINATED PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 110 VAC | Screw Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
|
A6X30141769ILLUMINATED PUSHBUTTON. RED |
0 |
|
Datasheet |
3SU1 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | On-Mom | 10A (AC/DC) | 500 V | 500 V | Round, Button | - | Red | LED, Red | 24 VAC/DC | Spring Terminal | IP66/IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.30mm Dia | -25°C ~ 70°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Pushbutton Switches?
This category includes related Pushbutton Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Pushbutton Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Pushbutton Switches and other electronic components.
