Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
903XSWITCH PUSH SPDT 0.25A 125V Switchcraft Inc. |
562 |
|
Datasheet |
903 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
EP913S20SWITCH PUSH SPDT 0.25A 125V Switchcraft Inc. |
327 |
|
Datasheet |
EP913 | Bulk | Active | Free Hanging | Standard | SPDT | On-Mom, Off-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | - |
|

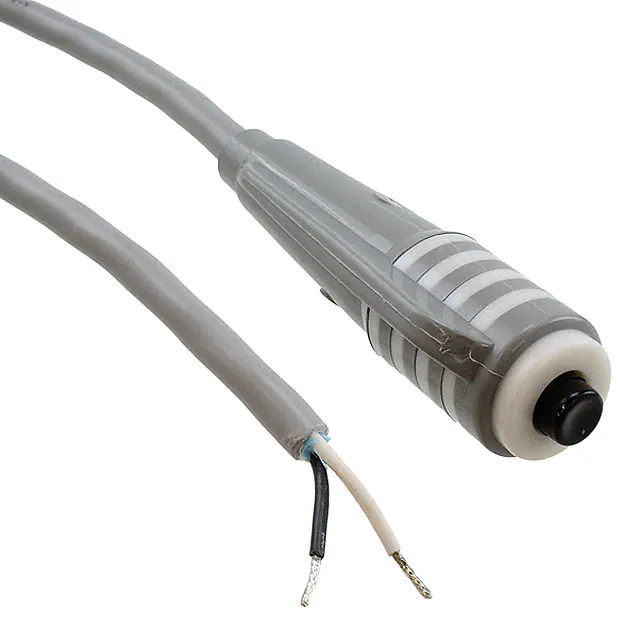

921KXSWITCH PUSH SPST-NO 0.5A 30V Switchcraft Inc. |
79 |
|
Datasheet |
921 | Bulk | Active | Free Hanging | Standard | SPST-NO | - | 500mA (DC) | - | 30 V | Round, Button | No Marking | - | - | - | Wire Leads | - | - | - | - |
|
982A01RXSWITCH PUSH SPST-NO 0.25A 28V Switchcraft Inc. |
990 |
|
Datasheet |
98000R | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 125mA (AC), 250mA (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

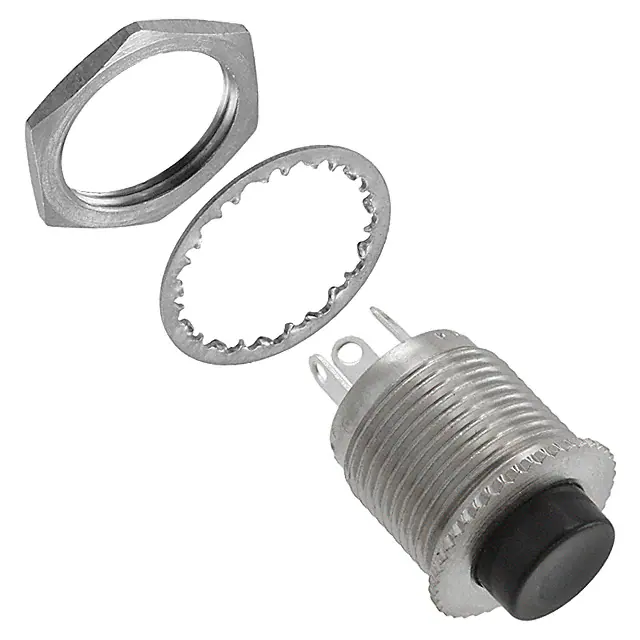

913XSWITCH PUSH SPDT 0.25A 125V Switchcraft Inc. |
605 |
|
Datasheet |
913 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
E913SWITCH PUSH SPDT 0.25A 28V Switchcraft Inc. |
124 |
|
Datasheet |
E900 | Bulk | Active | Free Hanging | Standard | SPDT | On-Mom | 250mA (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|
EP913S14SWITCH PUSH SPDT 0.25A 125V Switchcraft Inc. |
105 |
|
Datasheet |
EP913 | Bulk | Active | Free Hanging | Standard | SPDT | On-Mom, Off-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | - | - |
|
982A06RXSWITCH PUSH DPDT 0.25A 28V Switchcraft Inc. |
965 |
|
Datasheet |
98000R | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 125mA (AC), 250mA (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
913SSWITCH PUSH SPDT 0.25A 125V Switchcraft Inc. |
216 |
|
Datasheet |
913 | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 250mA (AC/DC) | 125 V | 48 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|

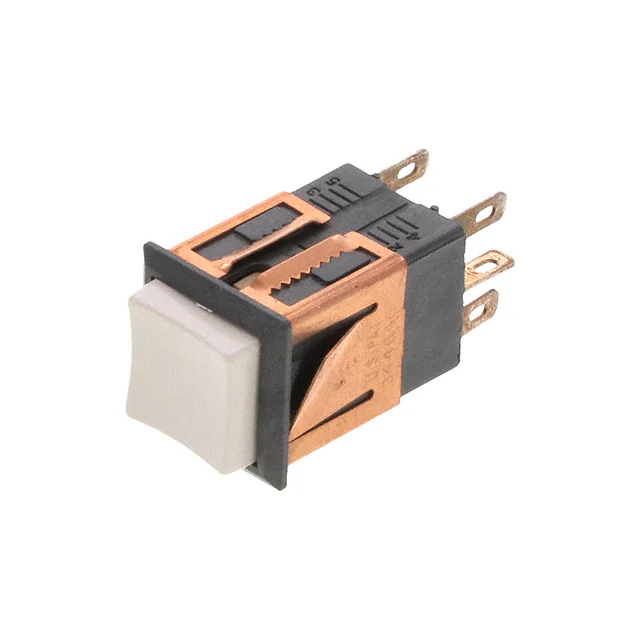

BXR056SWITCH PUSH DPDT 0.25A 115V Switchcraft Inc. |
464 |
|
Datasheet |
BXR | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 250mA (AC) | 115 V | - | Square, Button | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Square - 15.75mm x 15.75mm | - |
